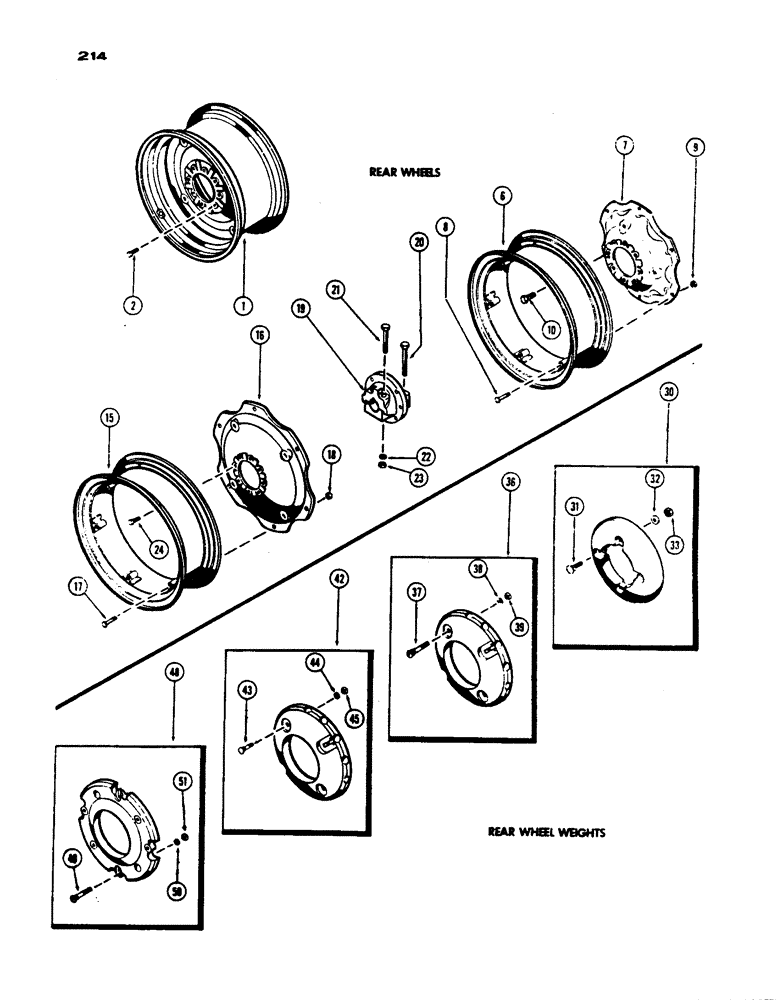

Запчасти Case IH 530 (214) - REAR WHEELS, VARIOUS TYPES, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

A35906

WHEEL

- integral (takes 14.9-13 x 24 tire)

2шт.

1

G45188

RIM

WHEEL - integral (takes 14.9/13 x 24 tire) Order A35906 when stock is depleted

2шт.

2

14441927

SCREW,FLAT, M8 x 16mm, Cl 8.8

1шт.

1

A35907

WHEEL - integral (takes 12 x 24 tire)

2шт.

1

G45211

WHEEL - integral (takes 12 x 24 tire) Order A35907 when stock is depleted

2шт.

2

G49036

WHEEL BOLT

BOLT - rim to axle (9/16 x 1-3/4" N.F. spec. hd.

16шт.

6

G45205

RIM

- (Takes 12.4/11 or 13.6/12 x 24 tire)

2шт.

6

G45204

RIM

- (Takes 14.9/13 x 24 tire), demountable type

2шт.

7

G46240

DISC

WHEEL - center disc, demountable type

2шт.

8

G10701

BOLT

- rim to whl. (5/8 x 2-11/16" N.F. spec. hd.), demountable type

12шт.

9

129-127

NUT,5/8"-18, G5

Rim bolt, demountable type 5/8"-18, G5

12шт.

10

O30739HT

X

BOLT - disc to axle (9/16 x 1-5/32" N.F. spec. hd.), demountable type

16шт.

15

G12002

RIM

- (Takes 12.4/11 x 28 tire), demountable type

2шт.

15

G45710

RIM

- (Takes 13.6/12 x 28 or 14.9/13 x 28 tire), demountable type

2шт.

16

G12001

DISC

WHEEL - center disc, demountable type

2шт.

17

G10701

BOLT

- rim to whl. (5/8 x 2-11/16" N.F. spec.hd.), demountable type

12шт.

18

129-127

NUT,5/8"-18, G5

Rim bolt, demountable type 5/8"-18, G5

12шт.

19

G1087

X

HUB - rear wheel, demountable type

2шт.

20

G10841

BOLT

BOLT - hub, oinner (3/4 x 4-1/2" N.F. hex), demountable type

4шт.

21

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex), demountable type

4шт.

22

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , Demountable type Int Tooth, 3/4"

8шт.

23

G10842

NUT

- hub bolts (3/4" N.F. hex.), demountable type

8шт.

24

O30739HT

X

BOLT - wheel to hub (9/16 x 1-5/32" N.F., spec. hd.), demountable type

16шт.

30

G12018M

WEIGHT ATTACHMENT - with demountable rim (Set of 2), Includes: Ref. 31 - 33, rear wheel weights

1шт.

31

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 1/4" N.C. carr.), rear wheel weights with demountable rim

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights with demountable rim 5/8"

4шт.

33

25-1010

NUT,5/8"-11, G5

Rear wheel weights with demountable rim 5/8"-11, G5

4шт.

37

11-1036

BOLT (MACHINE)

BOLT - (5/8 x 2-1/4" N.C. carr.), with integral wheel

4шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with integral wheel 5/8"

1шт.

39

25-1010

NUT,5/8"-11, G5

w/Integral wheel 5/8"-11, G5

4шт.

42

G12610M

WEIGHT ATTACHMENT - extra set with integral wheel (Set of 2), Includes: Ref. 43 - 45

1шт.

43

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 3-1/4" N.C. carr.), extra set with integral wheel

4шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Extra set with integral wheel 5/8"

4шт.

45

25-1010

NUT,5/8"-11, G5

Extra set with integral wheel 5/8"-11, G5

4шт.

48

G12536M

WEIGHT ATTACHMENT - with cast wheel (Set of 2) (530 only), Includes: Ref. 49 - 51

1шт.

49

11-1060

BOLT - (5/8" x 3-3/4" N.C. carr.), with cast wheel

4шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with cast wheel 5/8"

4шт.

51

25-1010

NUT,5/8"-11, G5

w/Cast wheel 5/8"-11, G5

4шт.
