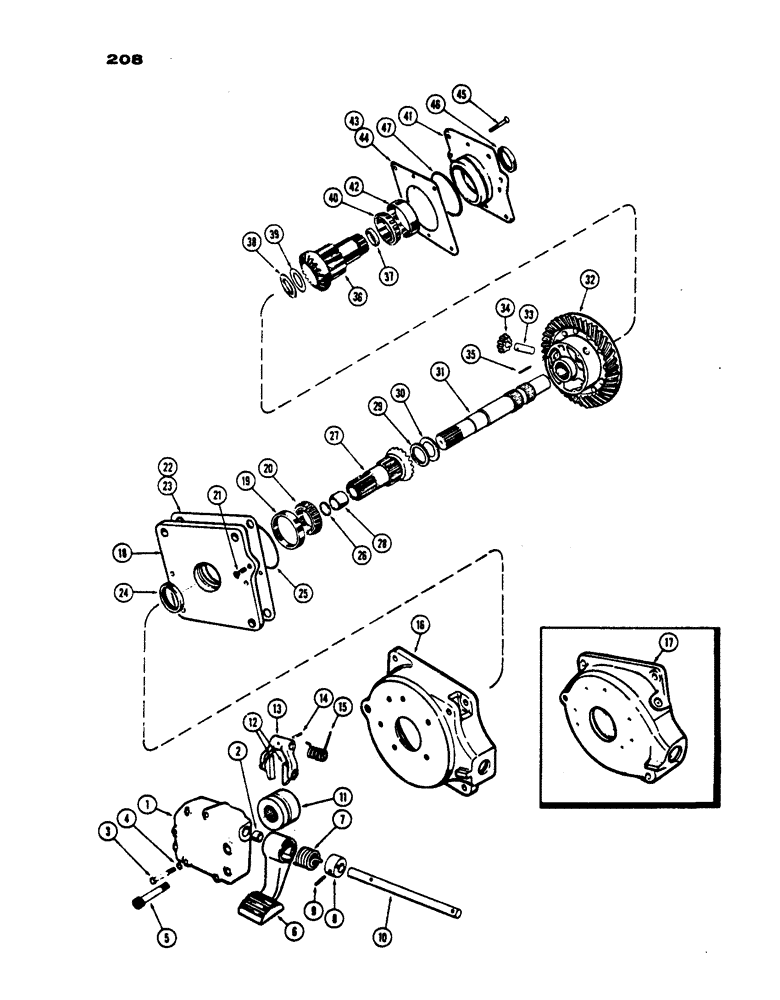

Запчасти Case IH 530 (208) - DIFFERENTIAL WITH LOCK, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

A35923

HOUSING

COVER - lock assembly (incl. ref. 2)

1шт.

2

A35925

BUSHING

- pedal & lever

1шт.

3

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - 5/16" x 2-1/4" N.C. hex socket hd.

1шт.

6

A36445

PEDAL - foot, differential lock

1шт.

7

A36446

SPRING

- foot, pedal

1шт.

8

A36447

RETAINER

COLLAR - pedal spring

1шт.

9

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

10

A36444

SHAFT - pedal & lever

1шт.

11

A35929

CLAMP

COLLAR - locking

1шт.

12

A35928

FINGER

- locking collar

2шт.

13

A35927

LEVER

- locking collar

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

A35933

SPRING

- inner

1шт.

16

A37052

COVER

- R.H. brake (standard)

1шт.

17

A35926

COVER - L.H. brake (Gen. Purpose)

1шт.

18

G30490

CARRIER

- bearing, R.H. side gear (incl. ref. 19)

1шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

20

A30114

CONE

- bearing, side gear

1шт.

21

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8" x 3/4" flat hd. (Spin lock)

2шт.

22

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

23

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

24

G10689

SEAL

OIL SEAL - bearing carrier

1шт.

25

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- bearing carrier

1шт.

26

A35919

OIL SEAL

OIL SEAL - R.H. side gear

1шт.

27

A35920

GEAR WHEEL

GEAR - R.H. side (incl. ref. 28)

1шт.

28

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- R.H. side gear

1шт.

29

A30539

WASHER

- thrust, R.H. side gear (.089")

1шт.

29

A39007

WASHER

- thrust, R.H. side gear (.094")

1шт.

29

A30533

WASHER

- thrust, R.H. side gear (.099")

1шт.

29

A30045

WASHER

- thrust, R.H. side gear (.104")

1шт.

29

A30543

WASHER

- thrust, R.H. side gear (.109")

1шт.

29

A30051

WASHER

- thrust, R.H. side gear (.119")

1шт.

30

A29388

WASHER

SHIM - R.H. side gear (.010")

1шт.

31

A35918

SHAFT

- cross, differential

1шт.

32

A35909

GEAR

RING GEAR ASSY. - (Order A38401)

1шт.

33

A37097

PIN

SHAFT - pinion gear

3шт.

34

G15483

GEAR

- pinion

3шт.

35

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

36

G30596

GEAR

- L.H. side (incl. ref. 37)

1шт.

37

A29902

PLUG

- L.H. side gear

1шт.

38

A30539

WASHER

- thrust, L.H. side gear (.090")

1шт.

38

A39007

WASHER

- thrust, L.H. side gear (.094")

1шт.

38

A30533

WASHER

- thrust, L.H. side gear (.099")

1шт.

38

A30045

WASHER

- thrust, L.H. side gear (.104")

1шт.

38

A30543

WASHER

- thrust, L.H. side gear (.109")

1шт.

38

A30051

WASHER

- THRUST, L.H. side gear (.119")

1шт.

39

A29388

WASHER

SHIM - thrust, L.H. side gear (.010")

1шт.

40

A30114

CONE

- bearing, side gear

1шт.

41

G30491

CARRIER

- bearing, L.H. side gear (incl. ref. 42)

1шт.

42

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

43

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

44

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

45

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8" x 3/4" flat hd. (Spin lock)

2шт.

46

G10689

SEAL

OIL SEAL - bearing carrier

1шт.

47

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- bearing carrier

1шт.
