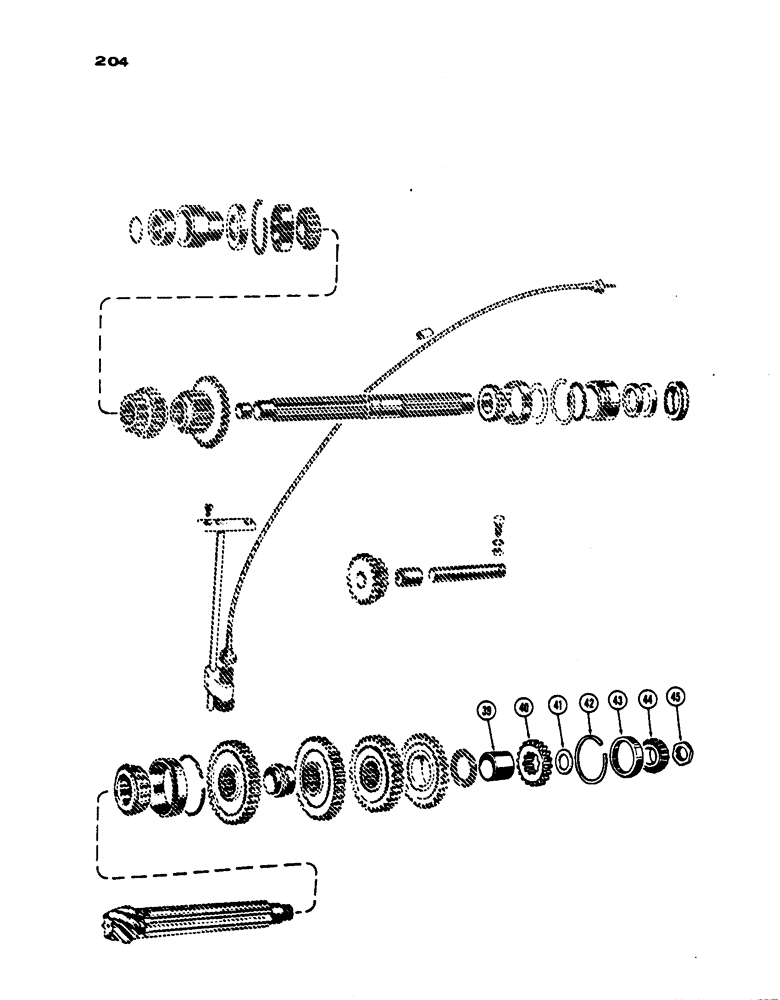

Запчасти Case IH 530 (204) - TRANSMISSION SHAFT AND GEARS, PRIOR TO S/N 8262800, CONTD (06) - POWER TRAIN

39

G13260

BUSHING

SAPCER - gear

1шт.

40

G10323

GEAR - 4th speed (24T), countershaft (See G16527)

1шт.

G16527

GEAR

- 4th speed (19T) countershaft (high speed)

1шт.

41

G10790

SPACER

- gear (.164")

1шт.

G16530

SPACER

- gear (.169")

1шт.

G10791

SPACER

- gear (.174")

1шт.

G16531

SPACER

- gear (.179")

1шт.

G10792

SPACER

- gear (.184")

1шт.

G16532

SPACER

- gear (.189")

1шт.

G10793

SPACER

- gear (.194")

1шт.

G16533

SPACER

- gear (.199")

1шт.

G10794

SPACER

- gear (.204")

1шт.

G16534

X

SPACER - gear (.209")

1шт.

G10795

SPACER

- gear (.214")

1шт.

G16535

SPACER

- gear (.219")

1шт.

G16510

SPACER

- gear (.224")

1шт.

G16536

SPACER

- gear (.229")

1шт.

G16511

SPACER

- gear (.234")

1шт.

G16537

X

SPACER - gear (.239")

1шт.

G16512

SPACER

- gear (.244")

1шт.

42

VT2067

X

SNAP RING - bearing retainer

1шт.

42

VT2097

X

CUP - frt. bearing, countershaft (Timken #14276)

1шт.

44

VT4882

X

CONE - frt. brg. countershaft (Timken #14116)

1шт.

45

G49010

LOCK NUT

- adjusting, countershaft

1шт.
