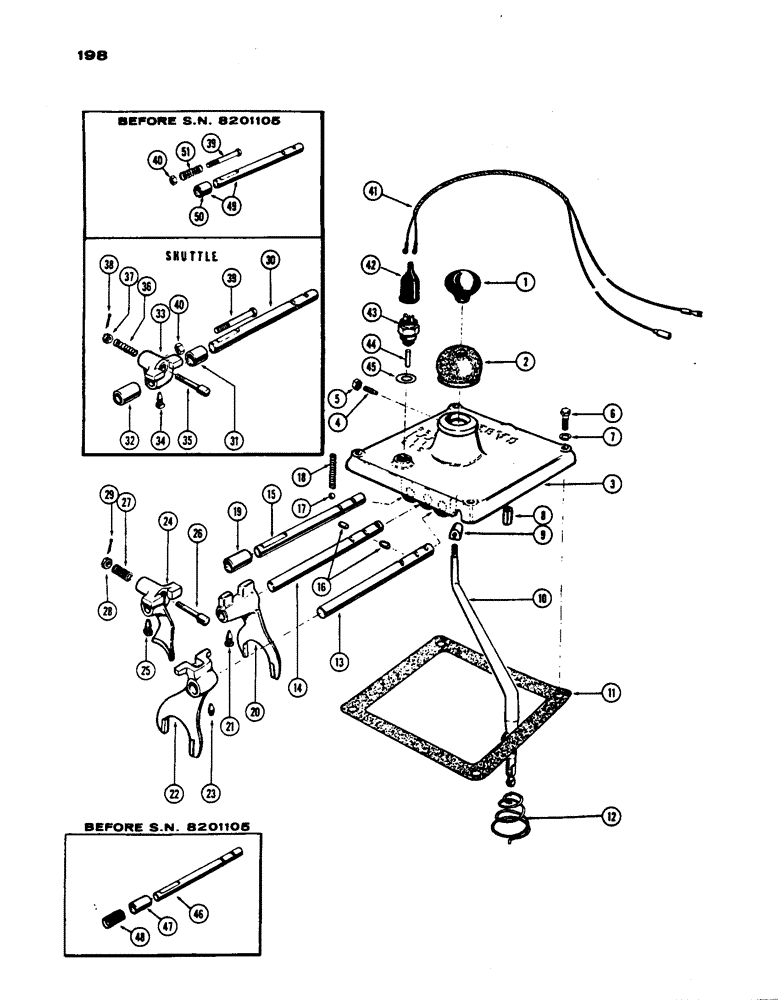

Запчасти Case IH 530 (198) - GEAR SHIFT COVER, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

A26727

BALL

KNOB - shift lever

1шт.

2

A26956

DUST CAP

DUST COVER - shift lever

1шт.

3

G1328

COVER ASSY

COVER - control

1шт.

4

G15468

SET SCREW,5/16" - 18 x 3/4"

- retaining, shift lever

1шт.

5

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex hd.

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

138-200

LOCK PIN,1/2" x 1", Slotted

PIN, , cover to trans. case 1/2" x 1", Slotted

1шт.

9

A35839

PLUG

SEAL - rubber

1шт.

10

G15628

LEVER

- gear shift

1шт.

11

G10342

GASKET

- cover to transmission case

1шт.

12

G10611

SPRING

- support, shift lever

1шт.

13

G10327

ROD

RAIL - shift, 3rd and 4th speeds

1шт.

14

G10326

ROD

RAIL - shift, 1st and 2nd speeds

1шт.

15

A35313

RAIL

- reverse shift (SN8211105 and after)

1шт.

16

VT2000

X

PLUG - interlock, shift rail

2шт.

17

211-11

BALL,3/8" Dia

- mesh lock, shift rail (.) 3/8" Dia

3шт.

18

G47039

SPRING

- mesh lock

3шт.

19

G49611

SPACER

- reverse shift rail (1-1/4" long)

1шт.

20

G10332

FORK

- shift, 1st and 2nd speeds (Order A41467 kit) (A41467 kit includes A38232 fork, A38233 rail & 139-2009 pin)

1шт.

21

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

22

G10333

X

FORK - shift, 3rd and 4th speeds (Order A41468) (A41468 includes A38234 fork, A38235 rail, & 138-2009 pin)

1шт.

23

A29965

LOCK SCREW,3/8" - 24 x 11/16", Drilled

- lock

1шт.

24

G10334

FORK TEDDER

FORK - shift, reverse (not used with shuttle)

1шт.

25

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

26

A29963

PLUNGER

- reverse latch

1шт.

27

T25643

VALVE SPRING

SPRING - plunger, reverse latch

1шт.

28

25-135

SLOTTED NUT,5/16"-24, G5

NUT - slotted, 5/16" N.F.

1шт.

29

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

30

A35313

RAIL

- reverse shift (SN8201105 and after)

1шт.

31

G49632

SPACER

- rear, reverse shift rail (3/4" lg.)(w/shuttle only)

1шт.

32

G49611

SPACER

- reverse shift rail (1-1/4" lg.)

1шт.

33

G15585

LUG - reverse shift rail (w/shuttle only)

1шт.

34

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

35

A29963

PLUNGER

- reverse latch

1шт.

36

T25643

VALVE SPRING

SPRING - plunger, reverse latch

1шт.

37

25-135

SLOTTED NUT,5/16"-24, G5

NUT - slotted, 5/16" N.F.

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

39

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" x 3" N.C. hex hd.

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

41

G44066

CABLE

- safety sw. to starting sw. & solenoid

1шт.

42

A20991

BOOT

- cover, safety sw.

1шт.

43

A20990

SWITCH

- safety, neutral start

1шт.

44

G15574

PLUNGER

- safety switch

1шт.

45

G49401

SHIM,.005" Thk

Safety switch .005" Thk

1шт.

45

G49402

SHIM,.010" Thk

Safety switch .010" Thk

1шт.

46

G30505

RAIL ASSY.

RAIL - reverse shift (Before SN8201105) (incl. ref. 47)

1шт.

47

G49611

SPACER

- (1-1/4" long)

1шт.

48

A29993

VALVE SPRING

SPRING - reverse shift (Before SN8201105)

1шт.

49

G30506

RAIL - reverse shift w/ shuttle (Before SN8201105) (incl. ref. 50)

1шт.

50

G49632

SPACER

- (3/4" long)

1шт.

51

T25643

VALVE SPRING

SPRING - plunger (2 used before SN8201105)

1шт.
