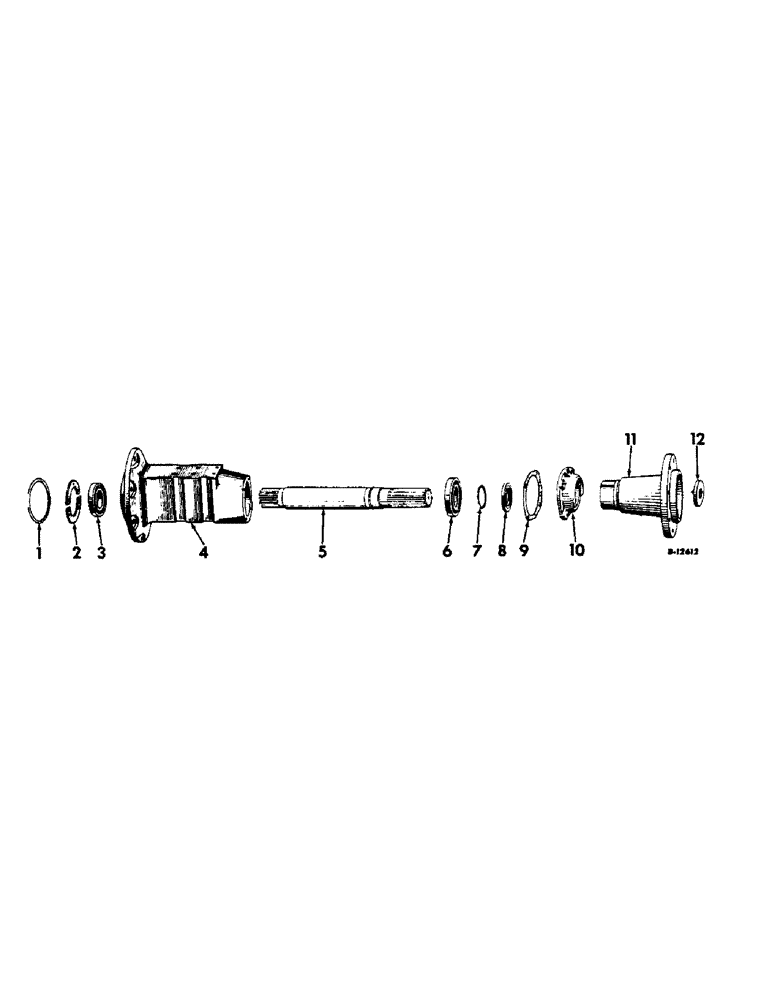

Запчасти Case IH 504 (196) - REAR AXLE, INTERNATIONAL TRACTORS (05) - REAR AXLE

1

290064R1

RING

O-RING, 6-1/4 x 6-1/2 x 1/8, rear axle carrier, 2663 up

2шт.

2

360545R1

SUPPORT

RETAINER, rear axle inner bearing

4шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

8шт.

3

ST218A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BEARING, rear axle inner ball

2шт.

3

394762R91

BEARING, BALL

PACKAGE, rear axle inner roller brg and shim service, hi-clear tractors

2шт.

4

375578R2

CARRIER, rear axle LH

1шт.

4

375579R2

CARRIER, rear axle RH

1шт.

4

376356R2

CARRIER, rear axle LH, hi-clear tractors

1шт.

4

376357R2

CARRIER

rear axle RH, hi-clear tractors

1шт.

361856R1

SCREW

rear axle carrier, up to serial no. 13736

14шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

Serial no. 13737 & above Hex, 5/8"-11 x 1 3/4", G5

14шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

5

361585R2

SHAFT

AXLE, rear

2шт.

5

368910R2

AXLE, rear, hi-clear tractors

2шт.

6

ST219A

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

BEARING, rear axle outer ball

2шт.

6

ST675

BALL BEARING,2.7559" ID x 4.9213" OD x 0.9449"

BEARING, rear axle outer ball, hi-clear tractors

2шт.

7

60628D

O-RING,2-1/2" ID x 5/32" Width

O-RING, 2-1/2 x 2-3/16 x 5/32, rear axle

2шт.

8

378077R91

OIL SEAL

rear axle oil

2шт.

8

377788R91

OIL SEAL

SEAL, rear axle oil, hi-clear tractors

2шт.

9

48463D

GASKET

rear axle carrier cap

2шт.

9

48950D

GASKET

rear axle carrier cap, hi-clear tractors

2шт.

10

378079R1

CYLINDER END CAP

CAP, rear axle carrier

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

377785R1

CAP

rear axle carrier, hi-clear tractors

2шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

368336R1

HUB

rear wheel

2шт.

12

352976R92

WASHER

PIN AND WASHER ASSY, rear wheel hub retainer

2шт.

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

SCREW, 3/4-16 x 1-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

360543R2

GASKET

rear axle carrier, Serial Range: 501-2662

2шт.
