Заказать запчасти

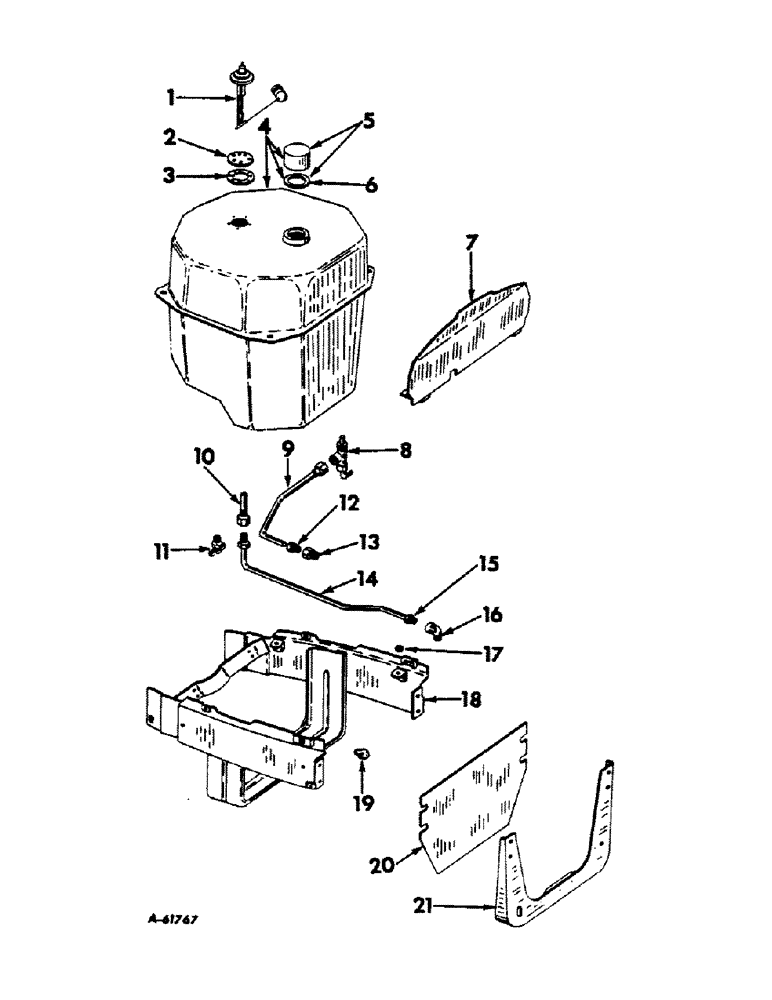

Запчасти Case IH 504 (054) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, INTL DIESEL ENGINE TACTORS (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
377103R91
SENDER UNIT
SENDING UNIT, electric fuel gauge
1шт.
1310675C1
CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"
SCREW, LOCK, , Sending unit Sltd Truss Hd, #10-24 x 3/4", w/nylon LW
5шт.
2
369155R1
COVER, fuel gauge sending unit opening, for tractors w/o fuel gauge
1шт.
1310675C1
CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"
SCREW, LOCK, , Sending unit opening cover Sltd Truss Hd, #10-24 x 3/4", w/nylon LW
5шт.
3
369154R1
GASKET
sending unit or cover
1шт.
4
375099R91
TANK ASSY, fuel
1шт.
NLS
NO LONGER SERVICED
4шт.
5
361910R91
PLUG
CAP ASSY, fuel tank filler
1шт.
6
23977DB
GASKET
fuel tank filler cap
1шт.
7
375102R11
SHIELD ASSY, heat
1шт.
8
375076R91
VALVE, fuel pipe
1шт.
9
375104R91
PIPE ASSY, fuel, Serial Range: tank-filter
1шт.
10
375105R91
CONNECTOR, ELEC
CONNECTOR, fuel return pipe check
1шт.
11
118536
VALVE
COCK, water drain
1шт.
12
19986R1
TUBE NUT,9/16"-20
NUT, fuel pipe coupling
1шт.
13
38026DM
HYD CONNECTOR,1/4" NPT x 9/16"-20
CONNECTOR, fuel pipe
1шт.
14
375074R11
LINE
PIPE ASSY, fuel return
1шт.
15
19984R1
TUBE NUT,7/16"-24
NUT, fuel return pipe
2шт.
16
60671D
INSULATOR BLOCK
PAD, fuel tank insulating
4шт.
17
30402D
ELBOW,90 Degree x 1/8" NPT x 7/16"-24
fuel return pipe
1шт.
18
376880R91
SUPPORT ASSY, fuel tank and cowl, rear
1шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
floating cage
6шт.
179856
BOLT,Hex, 7/16" - 14 x 3/4", Gr 5
SCREW, 7/16-14 x 3/4 hex-hd cap
4шт.
372820R1
SPACER, support, tractors with vertical exhaust
1шт.
NLS
NO LONGER SERVICED
Tractors with vertical exhaust Hex, 3/8"-16 x 1", G5
1шт.
19
NSS
NOT SOLD SEPARAT
(Not used)
1шт.
20
375253R1
SHIELD, lower heat
1шт.
21
375101R1
BRACKET, fuel tank and cowl support front
1шт.
179856
BOLT,Hex, 7/16" - 14 x 3/4", Gr 5
SCREW, 7/16-14 x 3/4 hex-hd cap
2шт.
Выбрано товаров: 31
