Запчасти Case IH 504 (031) - DIESEL ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE

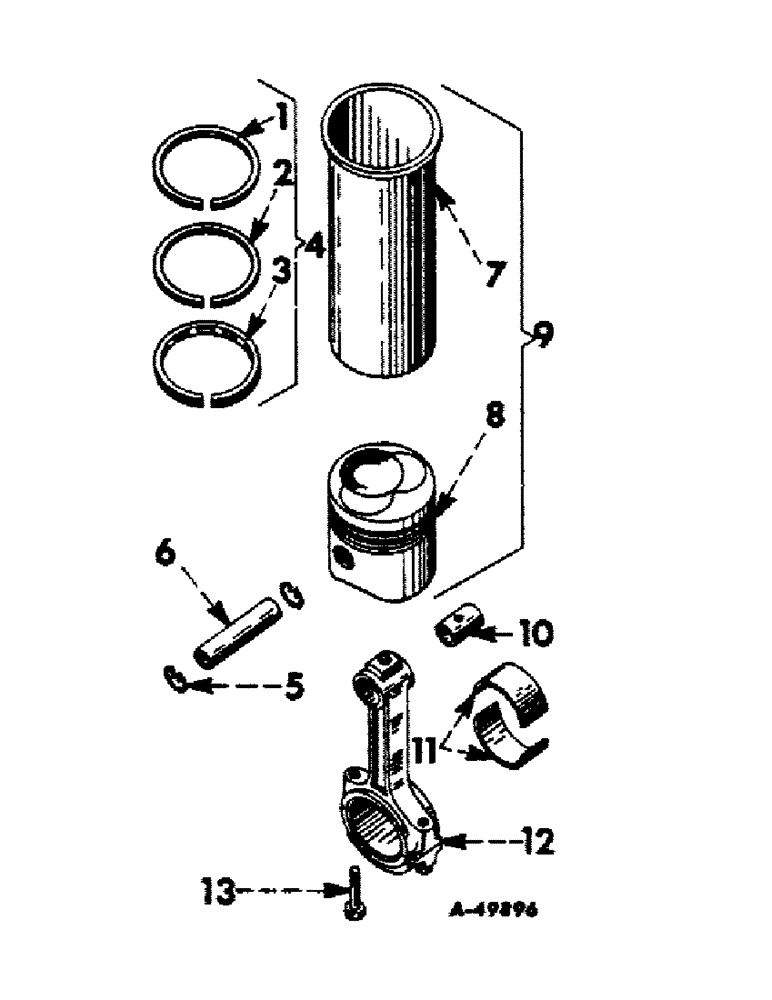

Схема запчастей Case IH 504 - (031) - DIESEL ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE
10
13
7
9
2
12
3
1
11
5
8
4
6

Артикул

Название

Примечание

Количество

1

615288C1

RING, compression piston, top or first groove

4шт.

2

615289C1

RING

compression piston, second groove

4шт.

3

278329R1

RING, oil piston, third or bottom groove

4шт.

4

316335R93

PACKAGE

RING SET, piston, consists of eight compression rings and four oil regulating rings

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

RING, snap, , piston pin 1.125", Int, #112

8шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

piston, std

4шт.

6

332437R1

PIN, piston, .005 O/S

4шт.

7

609026C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S1 marking

4шт.

7

609027C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S2 marking

4шт.

7

609028C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S3 marking

4шт.

7

612000C11

SLEEVE CYLINDER

SLEEVE, cylinder, .002 oversize

4шт.

7

612001C11

SLEEVE CYLINDER

SLEEVE, cylinder, .010 oversize

4шт.

8

318377R2

PISTON

SS marking

4шт.

9

612006C91

PISTON ASSY

PISTON W/SLEEVE ASSY, cylinder, S1 marking, composed of (1) pin 332436R1 (1) piston 318377R2 (2) ring 338835R1 (1) ring 615288C1 (1) ring 615289C1 (1) ring 278329R1 (1) sleeve assy 609026C11

4шт.

9

612007C91

PISTON

W/SLEEVE ASSY, cylinder, S2 marking, composed of (1) pin 332436R1 (1) piston 318377R2 (2) ring 338835R1 (1) ring 615288C1 (1) ring 615289C1 (1) ring 278329R1 (1) sleeve assy 609027C11

4шт.

9

612008C91

PISTON

W/SLEEVE ASSY, cylinder, S3 marking, composed of (1) pin 332436R1 (1) piston 318377R2 (2) ring 338835R1 (1) ring 615288C1 (1) ring 615289C1 (1) ring 278329R1 (1) sleeve assy 609028C11

4шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

4шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

4шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

4шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

4шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

4шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

4шт.

12

306280R12

ROD, CONNECTING

ROD W/BOLTS, 316366R1 and bushing 306708R1, connecting

4шт.

12

735237C91

REMAN-CONNECTING ROD

Remanufactured CONNECTING ROD

4шт.

12

1928147C1

CORE-ROD CONNECTING

Return No, CONNECTING ROD

4шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

Выбрано товаров: 26
