Запчасти Case IH 504 (029) - DIESEL ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

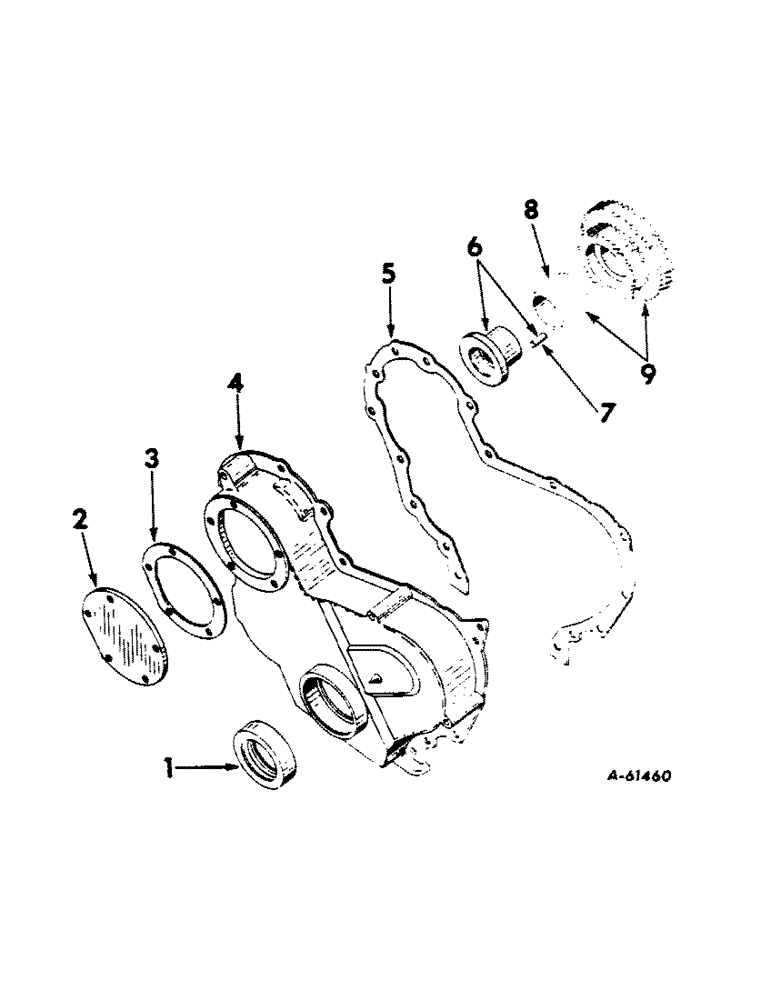

Схема запчастей Case IH 504 - (029) - DIESEL ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE
4
8
7
6
3
9
2
1
5

Артикул

Название

Примечание

Количество

1

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

crankshaft oil

1шт.

2

278269R1

COVER ASSY

COVER, injection pump gear

1шт.

179814

SPACER

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

3

278270R1

GASKET

injection pump gear cover

1шт.

4

308407R11

COVER W/TWO INSERTS 319917R1, crankcase front

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

13шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

5

308408R1

GASKET

crankcase front cover

1шт.

6

367580R11

HUB

SHAFT ASSY, idler gear

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

NLS

NO LONGER SERVICED

idler gear shaft dowel

1шт.

8

367578R1

BUSHING

idler gear

1шт.

9

278263R11

PINION

GEAR ASSY, idler

1шт.

Выбрано товаров: 16
