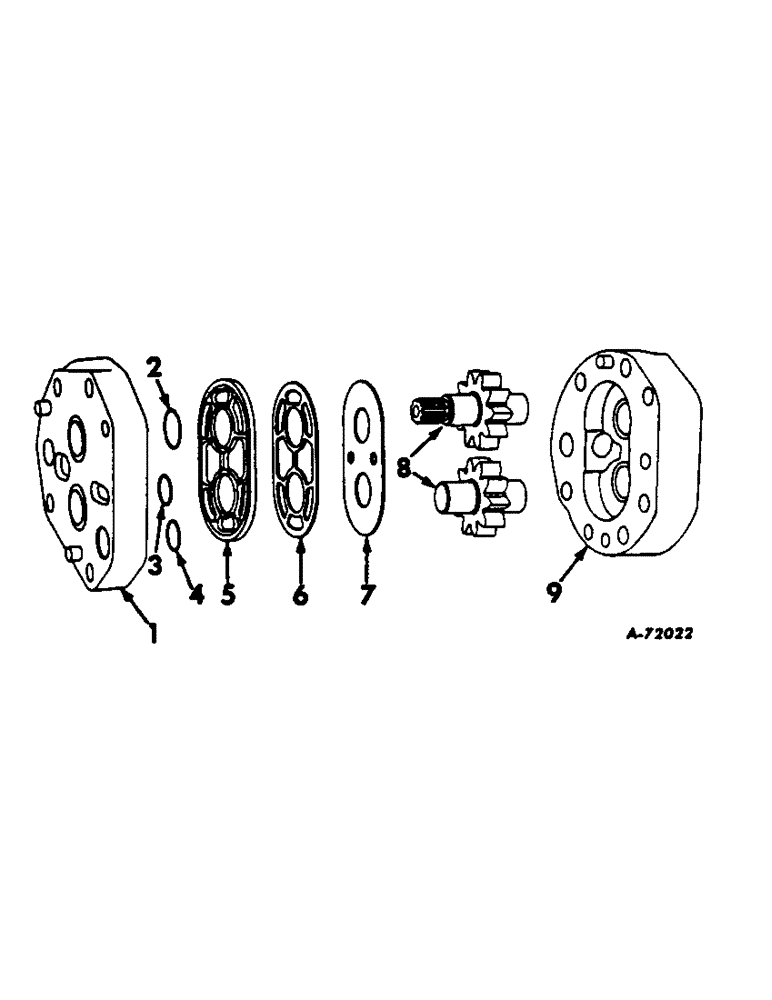

Запчасти Case IH 504 (224) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 4.5 OR 7.5 GPM (07) - HYDRAULIC SYSTEM

378866R92

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 4.5 GPM, tractors with draft control, optional with 378865R92

1шт.

1949294C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1949295C1

CORE-HYDRAULIC PUMP

Return Number HYDRAULIC PUMP

1шт.

381116R92

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 7.5 GPM, International tractors w/backhoe, optional with 381115R92

1шт.

1

NSS

NOT SOLD SEPARAT

COVER ASSY, pump front, not serviced separately, order pump assy

1шт.

2

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16, pump cover

1шт.

3

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, pump cover

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, 9/16 x 11/16 x 1/16, pump pressure, internal, not serviced separately, order package 381154R91

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, not serviced separately, order package 381154R91

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET, back-up, not serviced separately, order package 381154R91

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM, pressure, not serviced separately, order package 381154R91

1шт.

8

NSS

NOT SOLD SEPARAT

PACKAGE, drive and driven gear, not serviced separately, order pump assy

1шт.

9

NSS

NOT SOLD SEPARAT

BODY W/BUSHINGS ASSY, pump, not serviced separately, order pump assy

1шт.

381154R91

PACKAGE

hyd pump O-ring and gasket service, composed of (1) diaphragm 371551R1, (1) gasket 371543R2, (1) gasket 371553R1 (NSS), (1) gasket 381155R1 (NSS), (1) O-ring 370920R1, (2) O-ring 371544R1, (1) O-ring 374069R1, (1) seal 371552R1 (NSS)

1шт.
