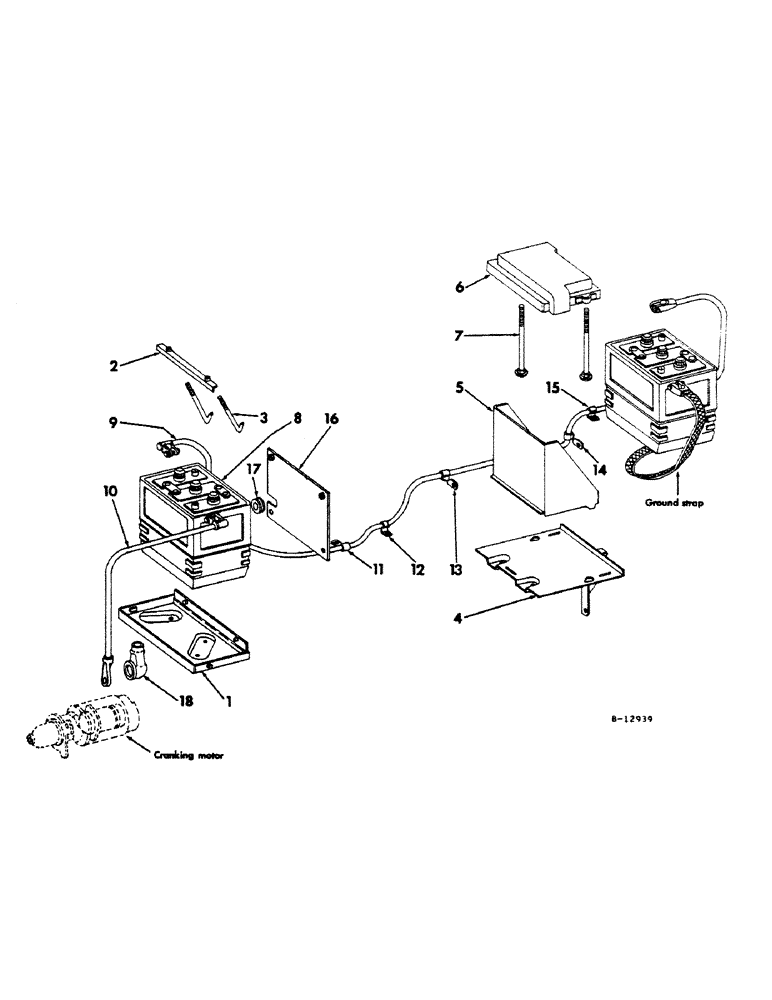

Запчасти Case IH 504 (137) - ELECTRICAL SYSTEM, HEAVY DUTY BATTERY, INTERNATIONAL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

377833R11

BASE ASSY, battery support

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

2

395337R1

BRACKET

battery hold down

1шт.

3

377837R1

ROD

battery hold down

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 flat

2шт.

4

379798R11

BASE ASSY, battery support rear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

373080R1

SPACER,1/2" Pipe x 1/2"

battery base support

2шт.

H39668

SPACER, battery base support, tractor w/hydraulic lift

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

379809R11

SHIELD ASSY, battery front

1шт.

6

379808R11

COVER ASSY, battery hold down

1шт.

7

911248R1

BOLT, battery hold down

1шт.

388697R1

NUT

battery hold down wing

1шт.

8

391546R91

BATTERY, Prestolite 2-A9Z, 6 volt

2шт.

9

384974R91

CABLE ASSY, Serial Range: battery-battery

1шт.

10

378324R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

11

358986R1

CABLE CLIP

CLIP, cable, on rear frame spacer RH side

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

362123R1

CLIP

cable, on rear frame spacer RH side

1шт.

13

363660R1

CLIP

cable, on draft controls pressure tube flange

1шт.

14

363660R1

CLIP

cable, on hydraulic unit housing cover RH side

1шт.

15

362123R1

CLIP

cable, on battery support base

1шт.

16

384973R11

PANEL ASSY, battery housing rear

1шт.

17

120879

GROMMET,1/2" ID x 1 1/16" x .062", Diag Cut

rubber, battery to battery cable

1шт.

18

364910R1

BOOT

COVER, battery cable terminal

1шт.
