Запчасти Case IH 504 (135) - ELECTRICAL SYSTEM, SIDE HEADLIGHTS, INTERNATIONAL TRACTORS WITH ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS

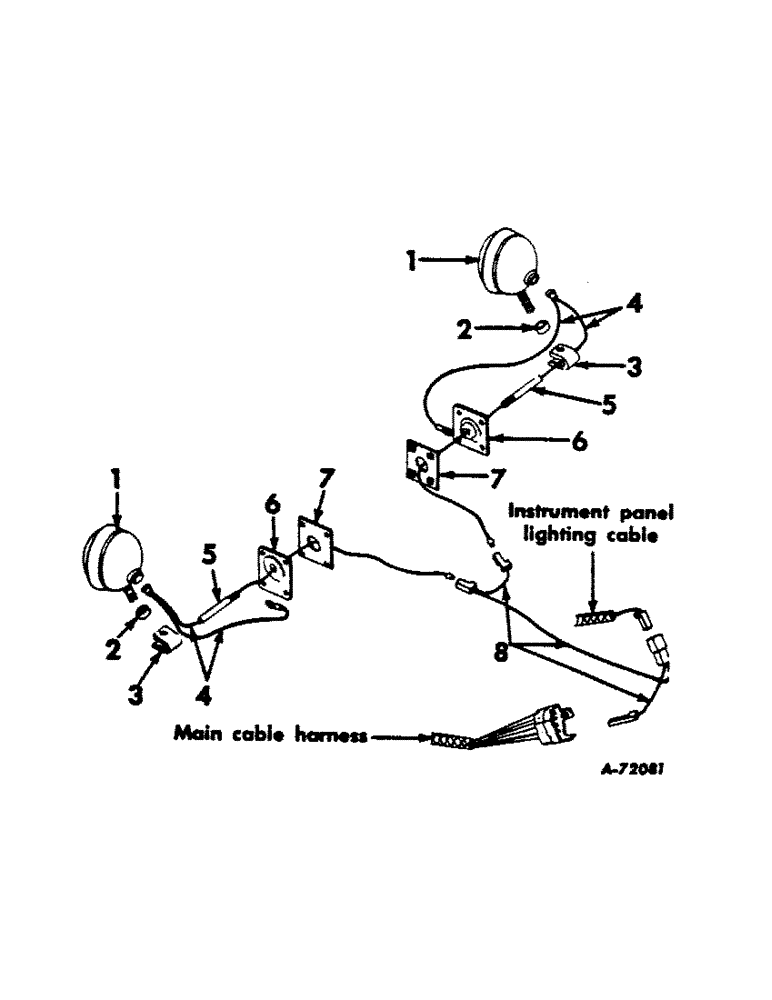

Схема запчастей Case IH 504 - (135) - ELECTRICAL SYSTEM, SIDE HEADLIGHTS, INTERNATIONAL TRACTORS WITH ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS
7
5
7
2
4
8
1
6
3
5
1
6
3
4
2

Артикул

Название

Примечание

Количество

381303R91

PARTS ACCESSORY, side headlights

1шт.

1

376849R91

HEADLIGHT

LIGHT ASSY, sealed beam head, only serviceable item is sealed beam unit 373662R91

2шт.

102637

NUT,1/2"-13, G5

2шт.

2

365503R1

SPACER

headlight

2шт.

3

350920R1

CLAMP

headlight

2шт.

4

381310R91

CABLE ASSY, headlight

2шт.

5

378068R1

PIPE, headlight support

2шт.

6

370559R11

BRACKET ASSY, headlight support

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, support bracket

8шт.

7

369684R11

PLATE ASSY, headlight reinforcing

2шт.

8

381311R91

CABLE ASSY, lighting cable junction

1шт.

106653

FUSE

cartridge type AGC 20

1шт.
