Запчасти Case IH 504 (127) - ELECTRICAL SYSTEM, IGNITION & STARTING, W/GENERATOR, INTERNATIONAL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

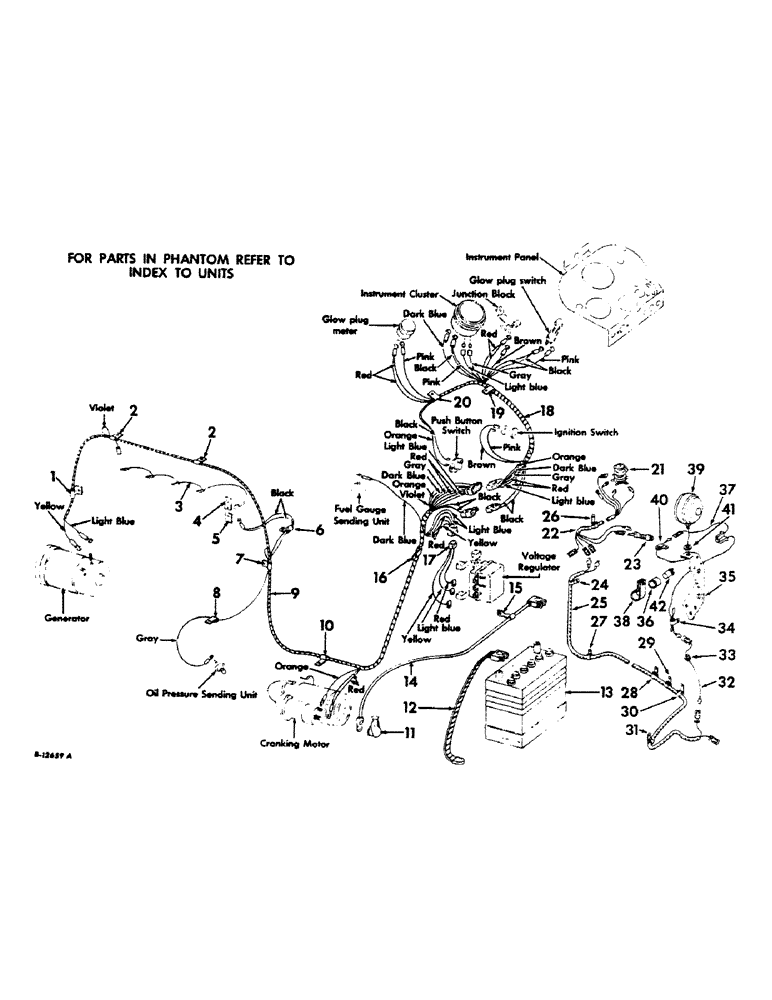

Схема запчастей Case IH 504 - (127) - ELECTRICAL SYSTEM, IGNITION & STARTING, W/GENERATOR, INTERNATIONAL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
23
12
33
28
13
35
31
34
14
36
39
1
4
3
25
40
32
30
37
16
8
29
11
19
24
41
2
21
6
42
26
10
18
9
20
2
7
22
38
15
5
17
27

Артикул

Название

Примечание

Количество

1

370383R1

CLIP

cable harness, on generator bracket upper mounting bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on valve cover mounting studs

2шт.

3

319966R91

CABLE PULLING GRIP

HARNESS ASSY, glow plug

1шт.

4

304313R1

BRACKET

junction block

1шт.

5

42915D

BLOCK

junction

1шт.

103088

NUT,#10-32

10-32 hex, mach screw

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable, on exhaust manifold rear mounting stud

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on intake manifold rear mounting bolt

1шт.

8

366460R1

CABLE CLIP

CLIP, cable, on crankcase breather pipe flange

1шт.

9

377111R91

HARNESS ASSY, main cable

1шт.

10

362123R1

CLIP

cable harness, on fuel tank support LH front bolt

1шт.

11

364910R1

BOOT

COVER, solenoid terminal

1шт.

12

378760R91

CABLE

STRAP W/BOLT, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

13

395599R1

BATTERY, Prestolite 30H-A9Z, 12 volt

1шт.

14

377114R91

CABLE PULLING GRIP

CABLE W/COVER AND BOLT, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

15

363660R1

CLIP

cable, on governor control balance spring anchor upper mounting bolt

1шт.

16

362123R1

CLIP

cable harness, on voltage regulator support RH mounting bolt

1шт.

17

376868R91

CABLE

ASSY, voltage regulator

1шт.

18

380401R91

CABLE PULLING GRIP

HARNESS ASSY, instrument panel

1шт.

19

370383R1

CLIP

cable harness, on governor control friction plate upper mounting bolt

1шт.

20

362121R1

CLIP

cable harness, on instrument cluster lower mounting stud

1шт.

21

394771R91

IGNITION SWITCH

SWITCH ASSY, lighting, Start Serial: 14034

1шт.

22

377298R91

HARNESS ASSY, lighting cable, Start Serial: 14034

1шт.

23

376852R91

HOUSING

ASSY, fuse, Start Serial: 14034

1шт.

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC 15

1шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on voltage regulator support LH mounting bolt, Start Serial: 14034

1шт.

25

381543R91

HARNESS ASSY, rear light cable, Start Serial: 14034

1шт.

26

362123R1

CLIP

light cable harness, on upper mounting bolt of governor friction plate, Start Serial: 14034

1шт.

27

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on clutch housing top cover LH bolt, Start Serial: 14034

1шт.

28

358986R1

CABLE CLIP

CLIP, rear light cable, on rear frame spacer LH side, Start Serial: 14034

1шт.

29

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on hyd housing LH side, Start Serial: 14034

1шт.

30

362123R1

CLIP

rear light cable, on rear frame spacer LH side mounting bolt, Start Serial: 14034

1шт.

31

358986R1

CABLE CLIP

CLIP, rear light cable, on LH fender front LH mounting bolt, Start Serial: 14034

1шт.

32

376857R91

CABLE ASSY, flasher light junction, Start Serial: 14034

1шт.

33

363846R1

GROMMET

flasher light cable, Start Serial: 14034

1шт.

34

366460R1

CABLE CLIP

CLIP, flasher light cable, on tail and flasher light bracket rear mounting bolt, Start Serial: 14034

1шт.

35

395517R1

BRACKET, tail and flasher light, serial no. 14034 & above, Start Serial: 14034

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

36

394134R1

SEAL

HOSE, flasher mounting absorber, Start Serial: 14034

1шт.

37

394382R91

CABLE ASSY, flasher to light, Start Serial: 14034

1шт.

38

394133R1

FASTENER

BRACKET, flasher mounting, Start Serial: 14034

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4-20 x 3/4 C-Z hex-hd cap

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

39

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 lens, amber, guide, 396585R1 or lens, red, guide, 397442R1 or lens, amber, Dietz, 899280R1 or lens, red, Dietz, 899279R1, Start Serial: 14034

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

40

358986R1

CABLE CLIP

CLIP, flasher light cable, on flashing warning light stud, Start Serial: 14034

1шт.

41

394262R1

WASHER

GASKET, flashing warning light, Start Serial: 14034

1шт.

42

394132R91

FLASHER UNIT

FLASHER ASSY, warning light, Start Serial: 14034

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light, Start Serial: 14034

1шт.

Выбрано товаров: 56
