Запчасти Case IH 504 (099) - ELECTRICAL SYSTEM, STARTING & LIGHTING, W/GENERATOR, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

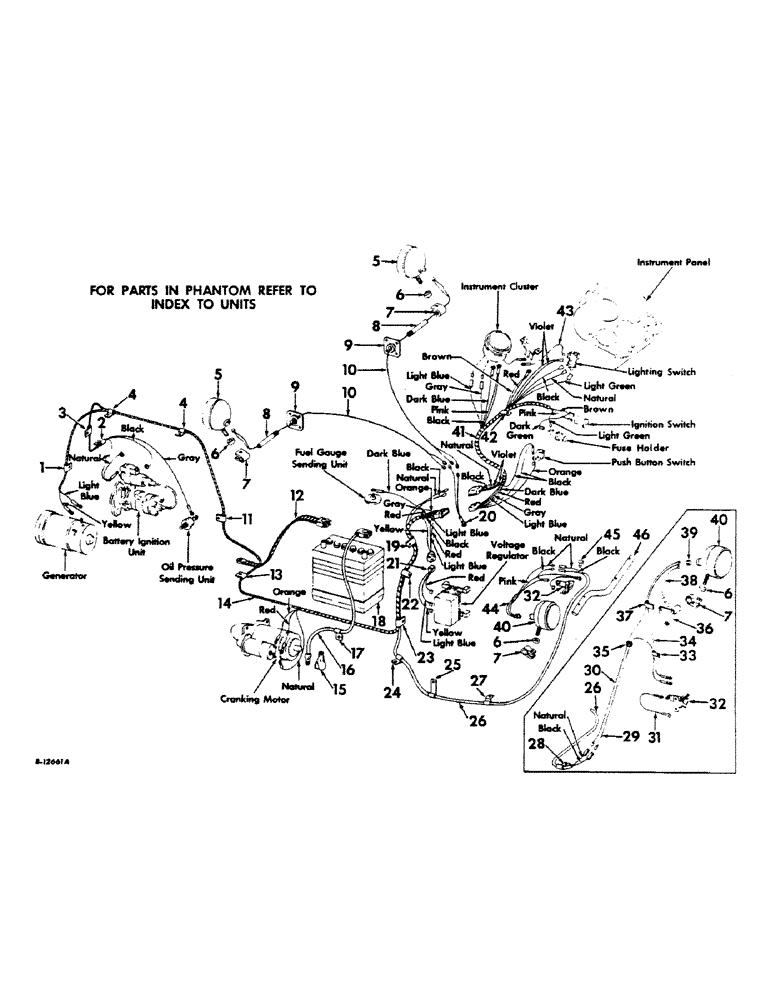

Схема запчастей Case IH 504 - (099) - ELECTRICAL SYSTEM, STARTING & LIGHTING, W/GENERATOR, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
24
8
45
44
41
12
23
26
7
13
32
33
4
5
32
14
40
9
46
26
35
17
5
3
22
42
21
9
6
31
37
36
11
19
10
7
7
6
28
18
15
38
16
2
39
27
7
6
6
8
10
34
1
43
29
30
20
4
25
40

Артикул

Название

Примечание

Количество

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on engine water outlet housing upper LH mounting bolt

1шт.

2

384559R1

CLIP

cable harness, on governor housing upper RH mounting bolt

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on engine water outlet housing upper RH mounting bolt

1шт.

4

362123R1

CLIP

cable harness, on valve cover housing mounting studs

2шт.

5

377101R91

LIGHT

ASSY, sealed beam head, only serviceable item is sealed beam unit 373662R91

2шт.

102637

NUT,1/2"-13, G5

2шт.

6

365503R1

SPACER

light

3шт.

7

350920R1

CLAMP

light

3шт.

8

378068R1

PIPE, headlight support

2шт.

9

370559R11

BRACKET ASSY, headlight support

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

8шт.

10

376870R91

CABLE ASSY, headlight

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on cyl head RH rear boss

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

378326R91

CABLE

STRAP W/BOLT, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

13

365524R1

CLAMP

CLIP, cable harness, on clutch housing upper LH rear hole

1шт.

14

377108R91

HARNESS ASSY, cable

1шт.

15

364910R1

BOOT

COVER, solenoid terminal

1шт.

16

376867R91

CABLE

W/COVER AND BOLT, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

17

370383R1

CLIP

cable, on clutch housing top cover

1шт.

18

395595R1

BATTERY, Prestolite 22NF-A9Z, 12 volt

1шт.

19

362666R1

CLIP

cable harness, on fuel tank and cowl support strap LH lower bolt

1шт.

120

374490R91

CABLE

ASSY, headlight to ground junction

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

376868R91

CABLE

ASSY, voltage regulator

1шт.

22

362666R1

CLIP

cable harness, on intermediate upper steering shaft LH mounting bolt

1шт.

23

362666R1

CLIP

cable harness, on lower rear steering shaft support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on rear steering shaft support front mounting bolt

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on platform front mounting bolt

1шт.

26

377117R91

CABLE ASSY, rear light

1шт.

27

362123R1

CLIP

cable harness, on rear frame spacer

1шт.

28

358986R1

CABLE CLIP

CLIP, cable harness, on LH fender mounting bolt, Serial Range: 501-10923

1шт.

29

377116R91

CABLE ASSY, breakaway connector socket junction, Serial Range: 501-10923

1шт.

30

377118R91

CABLE ASSY, rear light junction, Serial Range: 501-10923

1шт.

31

377119R91

CABLE ASSY, breakaway connector socket ground, Serial Range: 501-10923

1шт.

32

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

362121R1

CLIP

cable, on LH fender, Serial Range: 501-10507

1шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

377115R91

CABLE ASSY, rear light to breakaway connector socket, Serial Range: 501-10923

1шт.

35

363846R1

GROMMET

rear light cable, Serial Range: 501-10507

1шт.

36

381142R11

BRACKET ASSY, rear light, Serial Range: 501-10507

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

37

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable, on rear light bracket, Serial Range: 501-10507

1шт.

38

377120R92

CABLE ASSY, rear light to ground, Serial Range: 501-10923

1шт.

39

377105R1

CONNECTOR, ELEC

CONNECTOR, rear light, Serial Range: 501-10923

1шт.

40

377102R91

NO LONGER SERVICED

LIGHT ASSY, combination rear & tail, only serviceable items are lamp 445490 and unit 371461R91

1шт.

40

387729R91

LIGHT

ASSY, combination rear & tail, shock proof, only serviceable items are lamp 445490 and unit 371461R91, tractors with deluxe flat top fenders

1шт.

102637

NUT,1/2"-13, G5

1шт.

41

376865R91

HARNESS ASSY, instrument panel, Serial Range: 501-8510

1шт.

41

381661R91

HARNESS

ASSY, instrument panel, 8511 up

1шт.

42

371035R1

CLIP

cable harness, on governor control friction plate upper mounting bolt

1шт.

43

376869R91

CABLE

ASSY, lighting switch to junction block

1шт.

44

391243R91

CABLE ASSY, combination rear light, 10924 up

1шт.

45

362121R1

CLIP

cable harness, on breakaway connector socket mounting bolt, 10924 up

1шт.

46

390039R1

POST, combination rear & tail light, 10508 up

1шт.

NLS

NO LONGER SERVICED

2шт.

Выбрано товаров: 73
