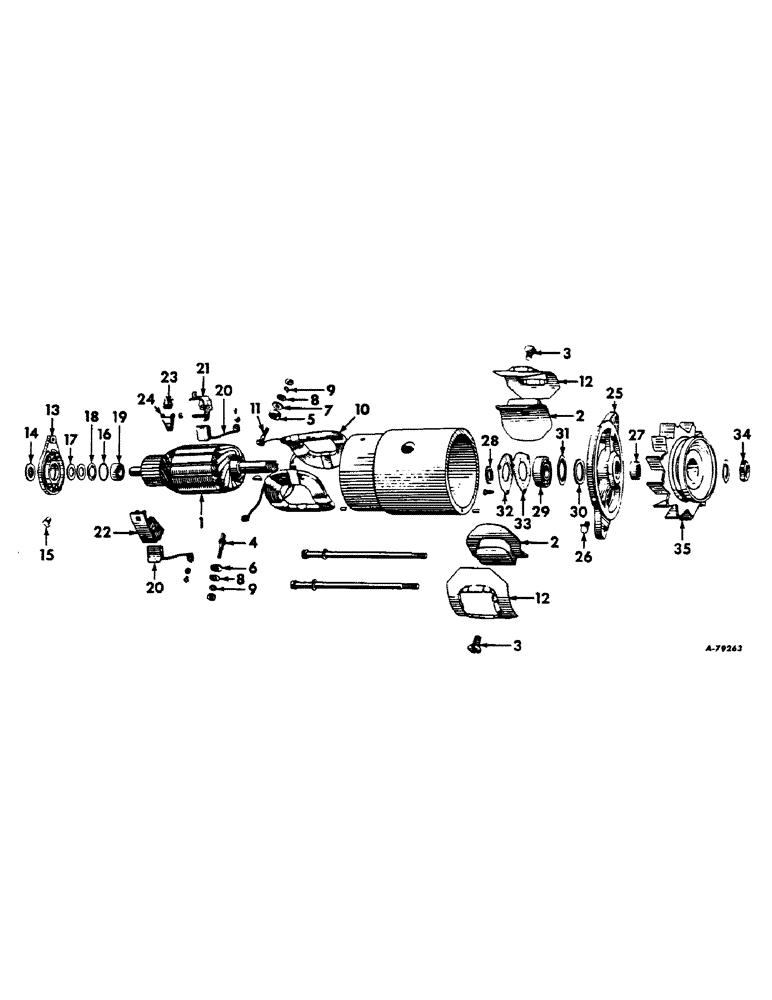

Запчасти Case IH 504 (088) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, HEAVY-DUTY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1100403

GENERATOR ASSY, 375461R91 12 volt

1шт.

1

1946903

ARMATURE

1шт.

2

1914618

SHOE, pole

2шт.

3

1843646

SCREW

pole shoe

2шт.

4

1921369

STUD

armature terminal

1шт.

5

1885090

BUSHING

field terminal

1шт.

6

1921362

BUSHING

armature terminal

1шт.

7

1858753

WASHER

insulated field terminal stud

1шт.

8

1881409

WASHER

terminal stud plain

2шт.

9

1904661

LOCK WASHER

WASHER, terminal stud lock

4шт.

10

1927700

COIL

SET, field coil

1шт.

11

1921860

STUD

field terminal

1шт.

12

1914491

INSULATION, field coil

2шт.

13

1951007

MOTOR

FRAME, commutator end

1шт.

14

1948326

PLUG, commutator end bearing well

1шт.

15

1880641

OILER

commutator end

1шт.

16

1929959

RING, SNAP

CLAMP, ball bearing

1шт.

17

815042

WASHER, felt

2шт.

18

809960

RETAINER, felt washer

1шт.

19

904751

BEARING

commutator end ball

1шт.

20

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

21

1922288

HOLDER

PACKAGE, ground brush

1шт.

22

1922289

HOLDER

PACKAGE, insulated brush

1шт.

23

1916324

VALVE SPRING

SPRING, brush

2шт.

24

1878183

ARM

brush

2шт.

25

1950634

FRAME, drive end

1шт.

26

1880641

OILER

drive end

1шт.

27

1858603

BUSHING

COLLAR, outside drive end space

1шт.

28

809945

BUSHING

WASHER, inside drive end space

1шт.

29

907503

BEARING

drive end ball

1шт.

30

809961

FELT

WASHER, drive end felt

1шт.

31

819104

WASHER

PLATE, drive end felt washer retainer

1шт.

32

1911263

LARGE PLATE

PLATE, drive end ball bearing retainer

1шт.

33

1912008

FELT

GASKET, drive end ball bearing retainer plate

1шт.

34

1911324

NUT

drive end shaft

1шт.

35

1943516

PULLEY

& FAN ASSY

1шт.
