Запчасти Case IH 495 (5-040) - MECHANICAL FRONT DRIVE "ZF", AXLE HOUSINGS AND SHAFTS (05) - STEERING

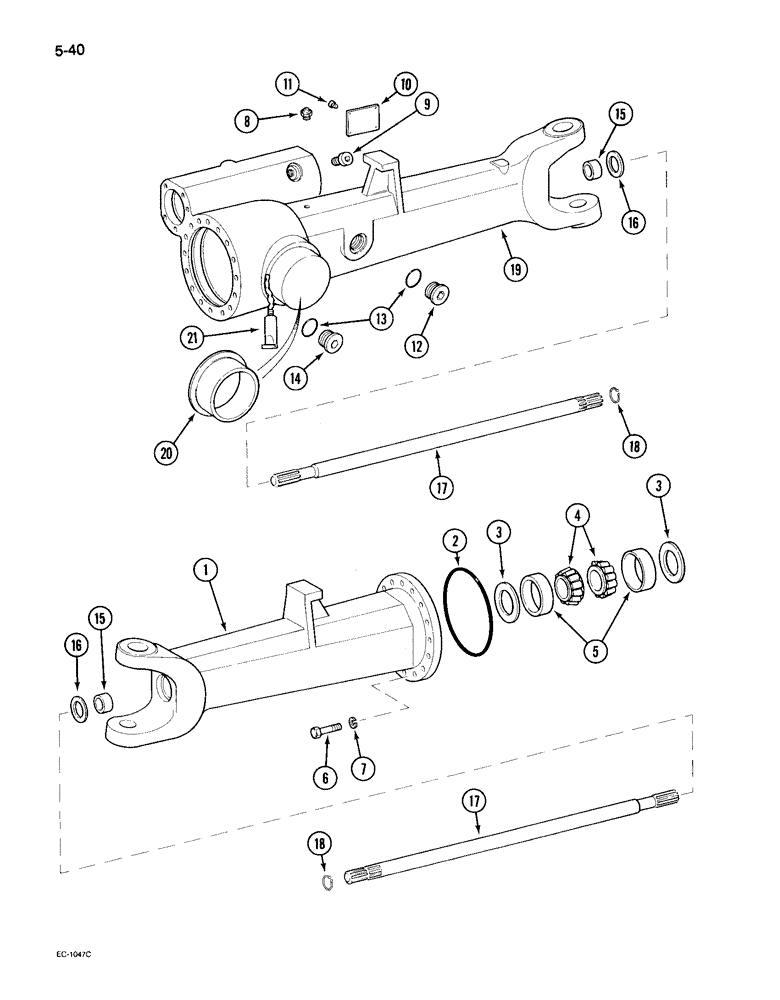

Схема запчастей Case IH 495 - (5-040) - MECHANICAL FRONT DRIVE "ZF", AXLE HOUSINGS AND SHAFTS (05) - STEERING
18
16
7
5
3
17
18
13
3
8
19
15
1
20
10
14
2
12
17
4
16
21
11
9
6
15

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-330, without self-locking differential, Includes: front drive axle housing assembly, Ref. 1 - 21 and protection tape

1шт.

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-325, with self-locking differential, Includes: front drive axle housing assembly, Ref. 1 - 21 and protection tape

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front drive axle, Includes: Ref. 1 - 21 and protection tape

1шт.

1

81407C1

CASE

HOUSING - axle, part II

1шт.

2

81279C1

O-RING,3mm Thk x 156mm ID, 80 Duro

- 156 x 3 mm

1шт.

3

81269C1

SHIM

DISK - 0.50 mm

1шт.

3

81257C1

DISC

DISK - 0.60 mm

1шт.

3

81258C1

DISC

DISK - 0.70 mm

1шт.

3

81270C1

DISC

DISK - 0.75 mm

1шт.

3

81259C1

DISC

DISK - 0.80 mm

1шт.

3

81271C1

DISC

DISK - 0.85 mm

1шт.

3

81260C1

SHIM

DISK - 0.90 mm

1шт.

3

81272C1

DISC

DISK - 0.95 mm

1шт.

3

81261C1

SHIM

DISK - 1.00 mm

1шт.

3

81273C1

SHIM

DISK - 1.05 mm

1шт.

3

81262C1

SHIM

DISK - 1.10 mm

1шт.

3

81274C1

DISC

DISK - 1.15 mm

1шт.

3

81263C1

DISC

DISK - 1.20 mm

1шт.

3

81275C1

DISC

DISK - 1.25 mm

1шт.

3

81264C1

DISC

DISK - 1.30 mm

1шт.

3

81276C1

DISC

DISK - 1.35 mm

1шт.

3

81265C1

DISC

DISK - 1.40 mm

1шт.

3

81266C1

DISC

DISK - 1.50 mm

1шт.

3

81267C1

DISC

DISK - 1.60 mm

1шт.

3

81268C1

DISC

DISK - 1.80 mm

1шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSEMBLY - cone, input shaft

2шт.

5

663558R1

BEARING CUP

BEARING - cup, input shaft

2шт.

6

626-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

- hex, 14 mm - 2.00 x 45 mm, class 10.9

16шт.

7

3222147R1

DISC

WASHER - flat, 14 mm

16шт.

8

898138H1

BREATHER

VALVE - breather

1шт.

9

933679R1

PLUG,Hex Soc, M10 x 1, Pipe

- hex socket, 10 mm - 1.50

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

11

932658R1

GROOVED PIN,Rd Hd, M3 x 5

PIN - groove drive stud, 3 x 5 mm

4шт.

12

905476R1

PLUG

- hex socket, 36 mm - 4.00

1шт.

13

81284C1

O-RING,2.2mm Thk x 33mm ID

- 32 x 2 mm

2шт.

14

81283C1

PLUG

- screw

1шт.

15

81410C2

BUSHING,37mm ID x 41mm OD x 26mm L

- plug-in shaft

2шт.

16

81411C2

SEAL

- plug-in shaft

2шт.

17

1968451C1

SHAFT

- plug-in

2шт.

18

81409C1

RING, SNAP

RING - retaining

2шт.

19

81406C1

HOUSING ASSY.

HOUSING - axle, part I, Includes: Ref. 20 and 21

1шт.

20

1964217C1

SLEEVE,117.75mm ID x 177mm OD x 53.55mm L

- housing

2шт.

21

345-163

SEALANT

SEALANT - Loctite No. 496

1шт.

81405C1

TAPE

- protection (Not Illustrated)

1шт.

Выбрано товаров: 44
