Запчасти Case IH 495 (5-038) - MECHANICAL FRONT DRIVE "ZF", AXLE ASSEMBLY (05) - STEERING

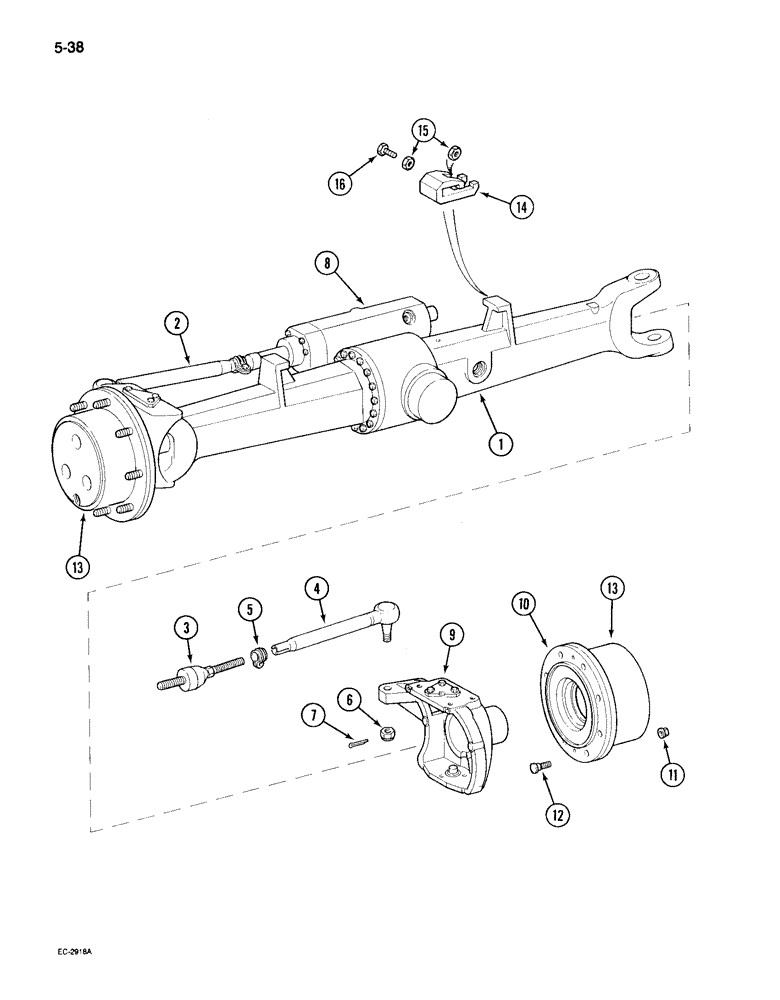

Схема запчастей Case IH 495 - (5-038) - MECHANICAL FRONT DRIVE "ZF", AXLE ASSEMBLY (05) - STEERING
5
7
13
15
14
9
16
13
1
12
2
11
10
8
6
3
4

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - front, APL-330, without self-locking differential, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - axle (See Figure 5-040), without self-locking differential, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, without self-locking differential, Includes: Ref. 3 - 7

2шт.

3

1968463C1

BALL JOINT

JOINT - axial, without self-locking differential

1шт.

4

1968464C1

TIE-ROD

JOINT ASSEMBLY - ball, without self-locking differential

1шт.

5

1968467C1

HOSE CLAMP

CLAMP - tie rod, without self-locking differential

1шт.

6

1968465C1

NUT

- hex slotted, without self-locking differential

1шт.

7

1968466C1

PIN, SPLIT (COTTER)

PIN - cotter, without self-locking differential

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - steering (See Figure 5-052), without self-locking differential

1шт.

9

NSS

NOT SOLD SEPARAT

KNUCKLE ASSEMBLY - steering (See Figure 5-048), without self-locking differential

2шт.

10

81308C1

HUB

ASSEMBLY - wheel (See Figure 5-048), without self-locking differential

2шт.

11

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm, wheel mounting, without self-locking differential

16шт.

12

81317C1

STUD

- wheel mounting, without self-locking differential

16шт.

13

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - planetary (See Figure 5-050), without self-locking differential

2шт.

14

99775C1

STOP

- axle oscillation, without self-locking differential

2шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, without self-locking differential

4шт.

16

K602743

SCREW,1/4" - 20 x 1 1/2", Gr 5

- square head, 1/4 NC x 1-1/4 inch, without self-locking differential

2шт.

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - front, APL-325, with self-locking differential, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - axle (See Figure 5-040), with self-locking differential, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, with self-locking differential, Includes: Ref. 3 - 7

2шт.

3

1968463C1

BALL JOINT

JOINT - axial, with self-locking differential

1шт.

4

1968464C1

TIE-ROD

JOINT ASSEMBLY - ball, with self-locking differential

1шт.

5

1968467C1

HOSE CLAMP

CLAMP - tie rod, with self-locking differential

1шт.

6

1968465C1

NUT

- hex slotted, with self-locking differential

1шт.

7

1968466C1

PIN, SPLIT (COTTER)

PIN - cotter, with self-locking differential

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - steering (See Figure 5-052), with self-locking differential

1шт.

9

NSS

NOT SOLD SEPARAT

KNUCKLE ASSEMBLY - steering (See Figure 5-048), with self-locking differential

2шт.

10

81308C1

HUB

ASSEMBLY - wheel (See Figure 5-048), with self-locking differential

2шт.

11

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm, wheel mounting, with self-locking differential

16шт.

12

81317C1

STUD

- wheel mounting, with self-locking differential

16шт.

13

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - planetary (See Figure 5-050), with self-locking differential

2шт.

14

99775C1

STOP

- axle oscillation, with self-locking differential

2шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, with self-locking differential

4шт.

16

K602743

SCREW,1/4" - 20 x 1 1/2", Gr 5

- square head, 1/4 NC x 1-1/4 inch, with self-locking differential

2шт.

Выбрано товаров: 34
