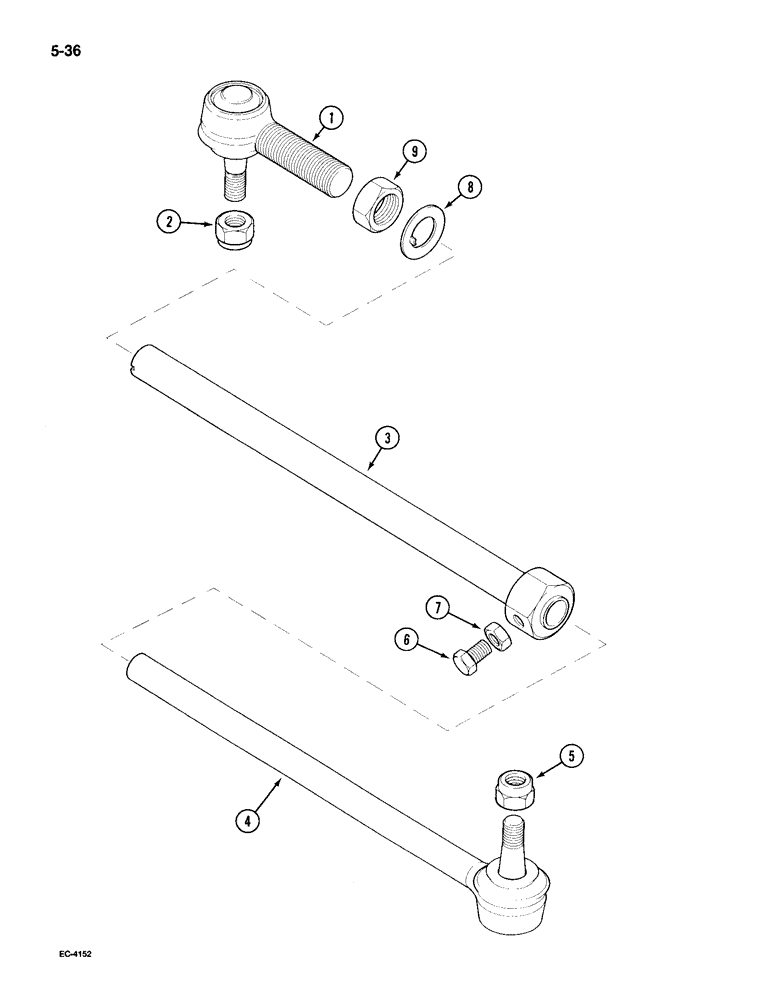

Запчасти Case IH 495 (5-036) - TIE RODS, ADJUSTABLE FRONT AXLES (05) - STEERING

1538018C1

TIE-ROD

ROD ASSEMBLY - adjustable tie, swept back axles, Includes: Ref. 1 - 9

2шт.

1

1537872C1

BALL JOINT

SOCKET ASSEMBLY - inner, swept back axles, Includes: Ref. 2

1шт.

2

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc, swept back axles

2шт.

3

111531A1

TUBE,20.75 mm ID, 28 mm OD, 419 mm Length

ASSEMBLY, swept back axles

1шт.

4

1537873C1

BALL JOINT

JOINT - dimple end ball, swept back axles, Includes: Ref. 5

1шт.

5

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc, swept back axles

2шт.

6

111527A1

SET SCREW

SCREW - locking, swept back axles

1шт.

7

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Swept back axles

1шт.

8

111528A1

WASHER

- tab, swept back axles

1шт.

9

111529A1

LOCK NUT

NUT - lock, swept back axles

1шт.

1538016C1

STEERING TIE-ROD

ROD ASSEMBLY - adjustable tie, straight front axles 52-82", Includes: Ref. 1 - 9

2шт.

1

1537872C1

BALL JOINT

SOCKET ASSEMBLY - inner, straight front axles 52-82", Includes: Ref. 2

1шт.

2

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc, straight front axles 52-82"

2шт.

3

111526A1

STEERING TIE-ROD,20.75 mm ID, 28 mm OD, 412 mm Length

TUBE ASSEMBLY, straight front axles 52-82", 412 mm (16.22 in) Long

1шт.

4

1332805C2

BALL JOINT

SOCKET ASSEMBLY - outer, straight front axles 52-82", Includes: Ref. 5

1шт.

5

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc, straight front axles 52-82"

2шт.

6

111527A1

SET SCREW

SCREW - locking, straight front axles 52-82"

1шт.

7

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Straight front axles 52-82"

1шт.

8

111528A1

WASHER

- tab, straight front axles 52-82"

1шт.

9

111529A1

LOCK NUT

NUT - lock, straight front axles 52-82"

1шт.
