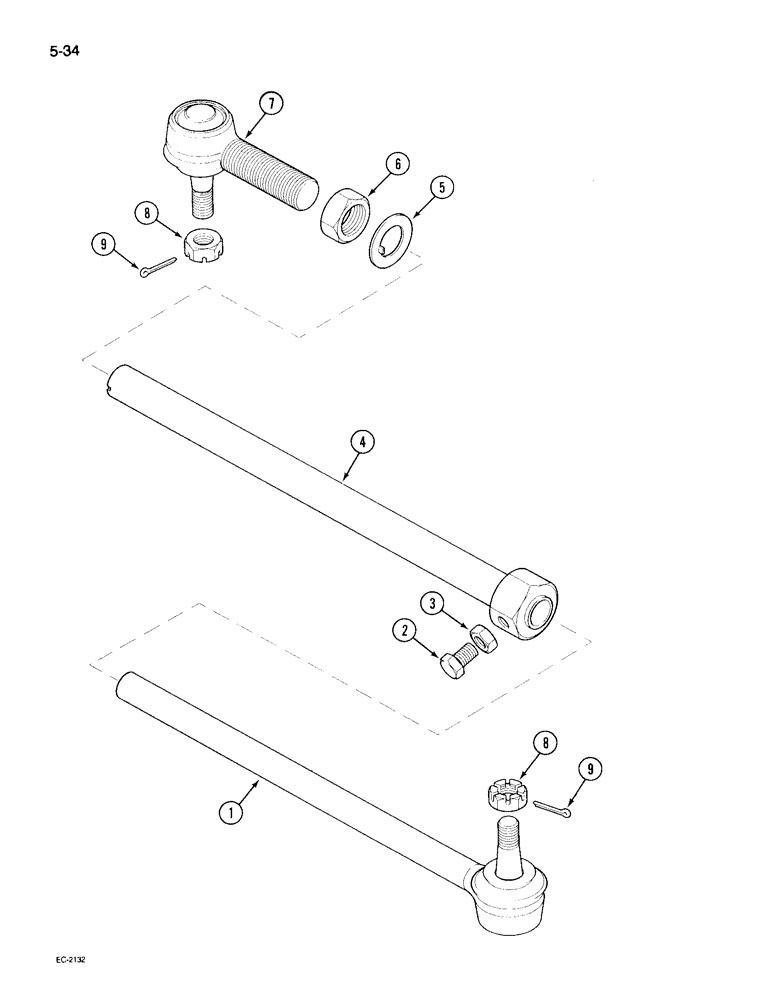

Запчасти Case IH 495 (5-034) - TIE RODS (05) - STEERING

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, adjustable, straight front axle (Replaced by 1538016C1) (See Figure 5-036), Includes: Ref. 1 - 7

2шт.

1

3116406R3

BALL JOINT

SOCKET ASSEMBLY - outer, adjustable straight front axle

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set, adjustable straight front axle

1шт.

3

3116410R1

LOCK NUT

NUT - lock, adjustable straight front axle

1шт.

4

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD ASSEMBLY - intermediate and riser, adjustable straight front axle

1шт.

5

3116411R1

LOCK WASHER

- tab, adjustable straight front axle

1шт.

6

3116412R1

LOCK NUT

NUT - lock, adjustable straight front axle

1шт.

7

3116407R3

BALL JOINT

SOCKET ASSEMBLY - inner, adjustable straight front axle

1шт.

8

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex slotted, 9/16 inch NF, adjustable straight front axle

2шт.

9

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , adjustable straight front axle 1/8" x 1"

2шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, adjustable, swept back front axle (Replaced by 1538018C1) (See Figure 5-036), Includes: Ref. 1 - 7

2шт.

1

3129380R2

BALL JOINT

JOINT ASSEMBLY - ball, dimple end, adjustable swept back front axle

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set, adjustable swept back front axle

1шт.

3

3116410R1

LOCK NUT

NUT - lock, adjustable swept back front axle

1шт.

4

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

ASSEMBLY - center, adjustable swept back front axle

1шт.

5

3116411R1

LOCK WASHER

- tab, adjustable swept back front axle

1шт.

6

3116412R1

LOCK NUT

NUT - lock, adjustable swept back front axle

1шт.

7

3116407R3

BALL JOINT

SOCKET ASSEMBLY - inner, adjustable swept back front axle

1шт.

8

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex slotted, 9/16 inch NF, adjustable swept back front axle

2шт.

9

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , adjustable swept back front axle 1/8" x 1"

2шт.
