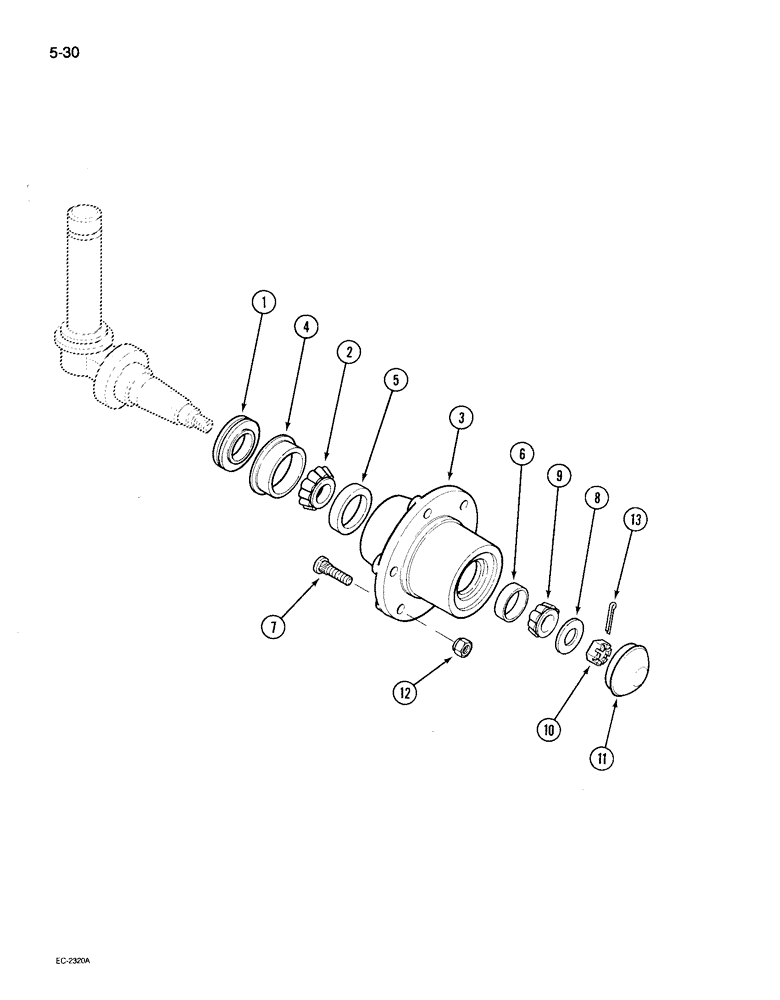

Запчасти Case IH 495 (5-030) - WHEEL HUBS, ADJUSTABLE FRONT AXLES (05) - STEERING

1

530104R91

SEAL

SEAL - dust

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone inner

2шт.

3

406294R21

HUB ASSY.

HUB ASSEMBLY - front wheel, Includes: Ref. 4 - 7

2шт.

4

406295R2

RING

- wear

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

5

1536193C1

BEARING CUP

- cup, Serial Range: (Optional-618024R1)

1шт.

6

371883R1

BEARING CUP

Outer

1шт.

7

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

6шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1-1/4 x 7/64 inch, hardened

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

10

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, 3/4 inch NF

2шт.

11

612884R1

HUB CAP

CAP - hub, front wheel

2шт.

12

483879R2

SPECIAL NUT

- wheel retaining

12шт.

13

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), 5/32" x 1 3/8"

2шт.

B93362

BEARING

KIT, Includes: (1) each of Ref. 2, 4, 5 P/N 618024R1, Ref. 6, 8, 9 and cotter pin and seal listed below

1шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

subbed from 108643 5/32" x 1 1/2"

1шт.

48539DA

PACKING RING

SEAL

1шт.
