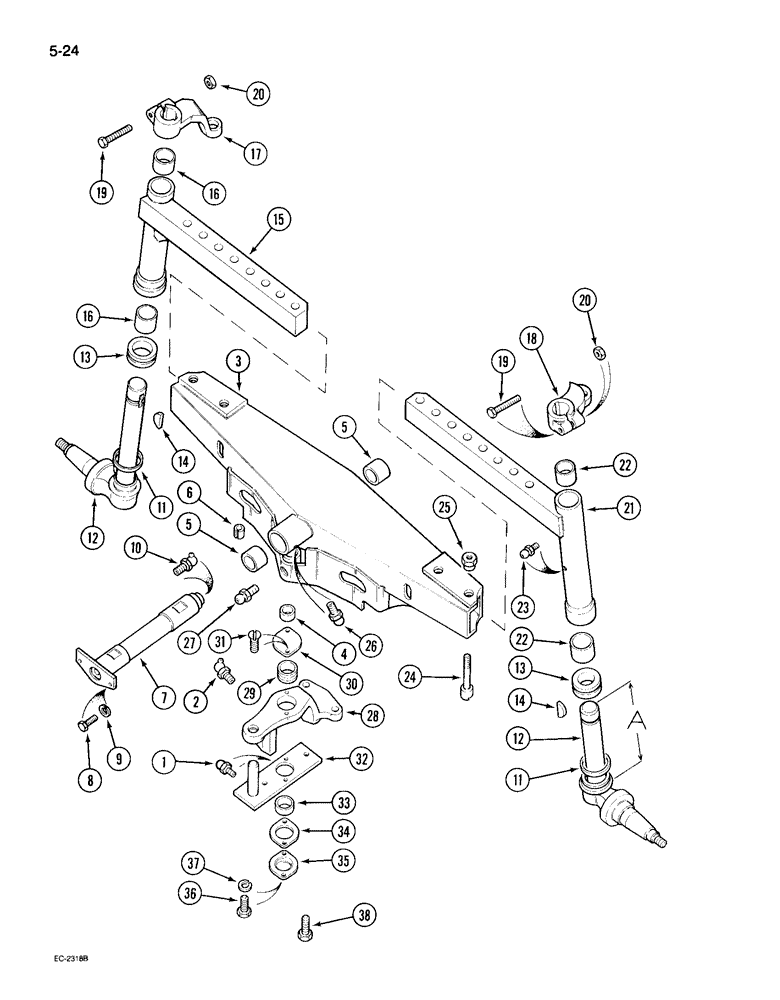

Запчасти Case IH 495 (5-024) - ADJUSTABLE STRAIGHT FRONT AXLE, 52 TO 80 INCH TRACK (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

69881C93

FRONT AXLE

AXLE ASSEMBLY - front, center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSEMBLY - front axle pivot

1шт.

7

99897C1

SHAFT

ASSEMBLY - front axle pivot (Front mounted hydraulic pump)

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PT

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

1шт.

12

405840R12

KNUCKLE

ASSEMBLY - steering, Dimension A: 12.17 inch, Includes: Ref. 13 and 14

2шт.

12

534288R92

KNUCKLE

ASSEMBLY - steering, Dimension A: 9.52 inch, Includes: Ref. 13 and 14

2шт.

13

405831R91

BEARING

- thrust, steering knuckle (Order 185106C91)

1шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

15

3116476R91

EXTENSION ASSY.

EXTENSION - front axle, right, used with knuckle 534288R92, Includes: Ref, 16

1шт.

15

3116580R91

EXTENSION ASSY.

EXTENSION - front axle, right, used with knuckle 405840R12, Includes: Ref, 16

1шт.

16

376099R1

BUSHING

- front axle extension (Order 358958R2)

2шт.

17

67525C1

ARM

- steering knuckle, right

1шт.

18

67524C1

ARM

- steering knuckle, left

1шт.

19

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

21

3116475R91

EXTENSION ASSY.

EXTENSION - front axle, left, used with knuckle 534288R92, Includes: Ref. 22

1шт.

21

3116579R91

EXTENSION ASSY.

EXTENSION - front axle, left, used with knuckle 405840R12, Includes: Ref. 22

1шт.

22

376099R1

BUSHING

- front axle extension (Order 358958R2)

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

25

405576R1

NUT

- front axle

4шт.

26

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C94

STEERING ARM

ARM ASSEMBLY - center, power steering, Includes: Ref. 29 - 31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- center arm

1шт.

30

1536890C1

LARGE PLATE

PLATE - cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

BAR ASSEMBLY - power steering cylinder, Includes: Ref. 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

34

1536919C1

GASKET

- cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE - cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

- hex flange, 1/4 NC x 5/8 inch

2шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
