(5-022) - POWER STEERING CYLINDER, HEAVY DUTY CAST FRONT AXLE

Запчасти Case IH 495 (5-022) - POWER STEERING CYLINDER, HEAVY DUTY CAST FRONT AXLE (05) - STEERING

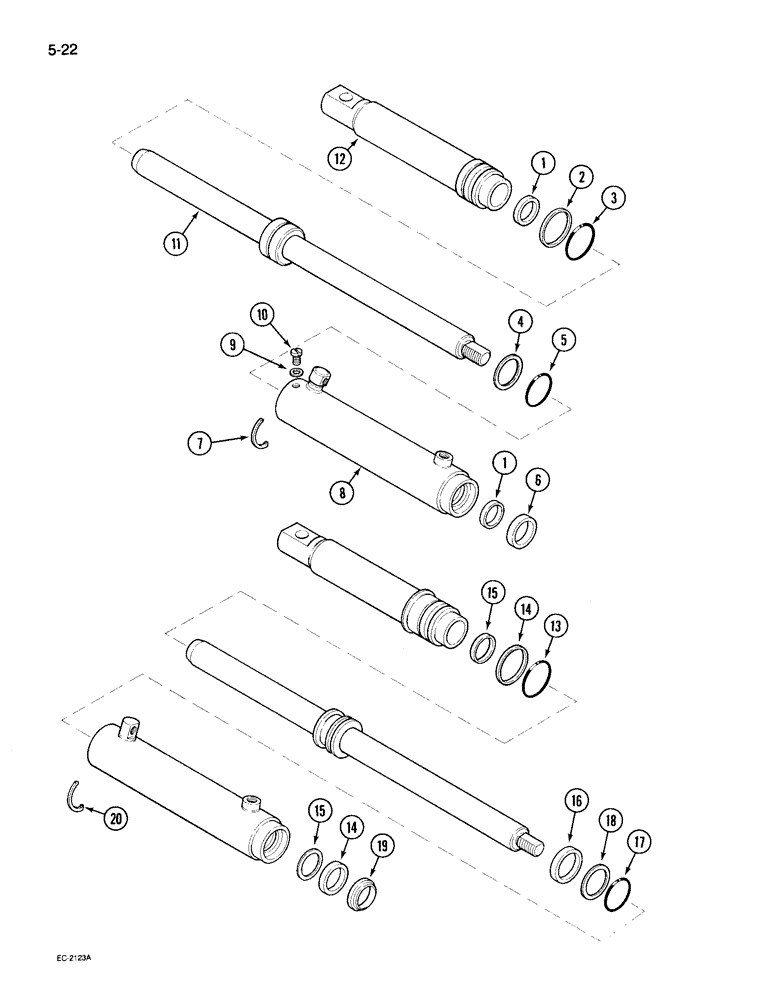

Схема запчастей Case IH 495 - (5-022) - POWER STEERING CYLINDER, HEAVY DUTY CAST FRONT AXLE (05) - STEERING
15
13
11
10
9
18
17
6
20
14
12
19
5
15
4
1
16
7
2
1
3
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3118502R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 ID x 1/8 inch wide, class 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1-3/4 ID x 1/8 inch wide

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

8

3118503R2

HYD TUBE,244.86, 38.10 mm Length

TUBE ASSEMBLY - steering cylinder

1шт.

9

92-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

470-1105

SCREW,Slotted Pan Hd, #10-24 x 5/16"

- pan head slotted, No. 10 x 5/16 inch

1шт.

11

536309R1

PISTON ROD

ROD ASSEMBLY - power steering

1шт.

12

536301R2

HEAD

ASSEMBLY - power steering

1шт.

1954043C1

CYLINDER

ASSEMBLY - power steering, order 3118502R93, Includes: cylinder seals service kit and Ref. 13 - 20

1шт.

1954053C1

SEAL KIT

- service, cylinder seals, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - back-up

2шт.

15

NSS

NOT SOLD SEPARAT

RING - guide

2шт.

16

NSS

NOT SOLD SEPARAT

RING - guide

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

19

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

20

1954141C1

ELECTRICAL WIRE

WIRE - lock

1шт.
