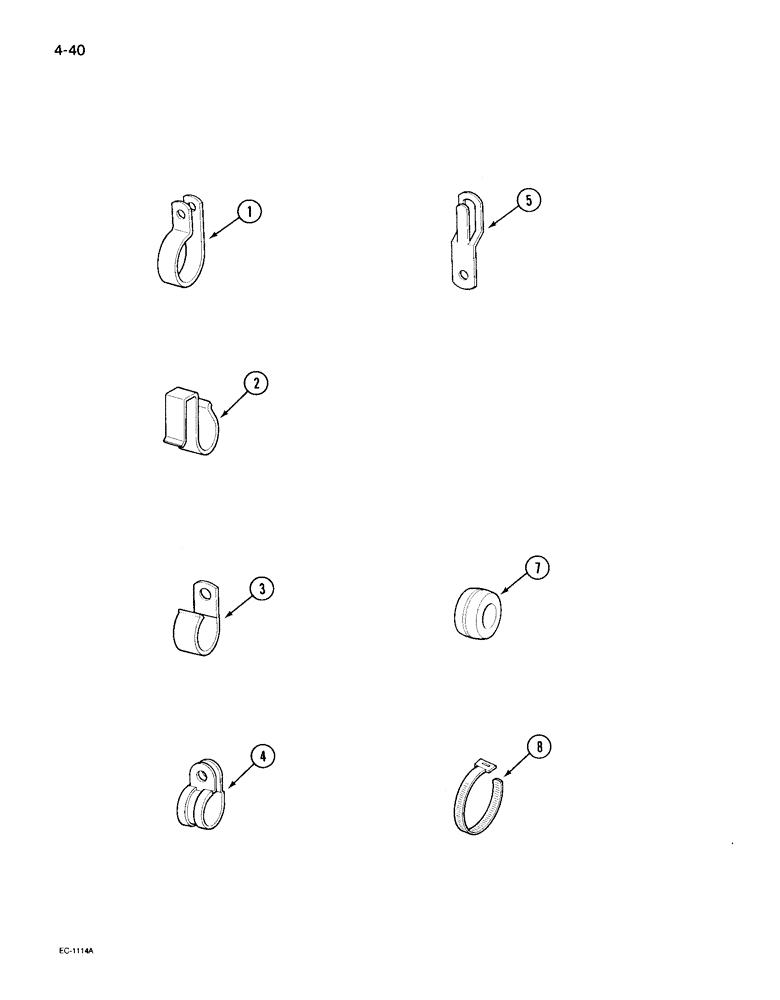

Запчасти Case IH 495 (4-040) - CABLE CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3116240R1
CLIP
- 0.56" diameter, closed (Battery cable)
1шт.
2
3116918R1
CABLE CLIP
CLIP - edge, 0.25" max diameter (Air cleaner bracket)
1шт.
2
3125873R1
CLIP
- edge, 0.374" max diameter (Front grille)
2шт.
2
537024R1
CLIP
- edge, 0.46" max diameter (Seat deck, left)
1шт.
2
537025R1
CLIP
- edge, 0.55" max diameter (Master cylinder bracket)
1шт.
2
3113490R1
CLIP
- edge, 0.55" max diameter (Steering support)
1шт.
2
539015R1
CLIP
- edge, 0.75" max diameter (Flasher unit)
1шт.
2
535303R1
CABLE CLIP
CLIP - edge, 0.95" max diameter (Battery tray)
1шт.
3
100770H
CLIP
- 0.31" diameter, open (Grille shroud, left)
1шт.
3
100770H
CLIP
- 0.31" diameter, open (Grille tie bar, left)
1шт.
3
316433C1
CLAMP
CLIP - 0.50" diameter, open (Main harness)
1шт.
4
3125823R1
CLIP
- 0.75" diameter (Battery tray)
1шт.
5
708115R1
PLATE ASSY.
CLIP - spring type
1шт.
7
705548R1
GROMMET
- 0.25 x 0.56 inch (Rear fender top)
1шт.
7
3123681R1
GROMMET
- 0.31 x 0.56 inch (Rear flasher lamps)
1шт.
7
3113661R1
GROMMET
- (Left and right fenders)
2шт.
7
1333007C1
GROMMET
- diaphram, 3/4 inch (Instrument side panel, left)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Battery cable)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Battery support)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Battery tray)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Fuel pipe)
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Steering support)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Front hood support)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75" max bundle (Starter cable)
1шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0" max bundle (Air inlet hose)
2шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0" max bundle (Steering support)
1шт.
Выбрано товаров: 26
