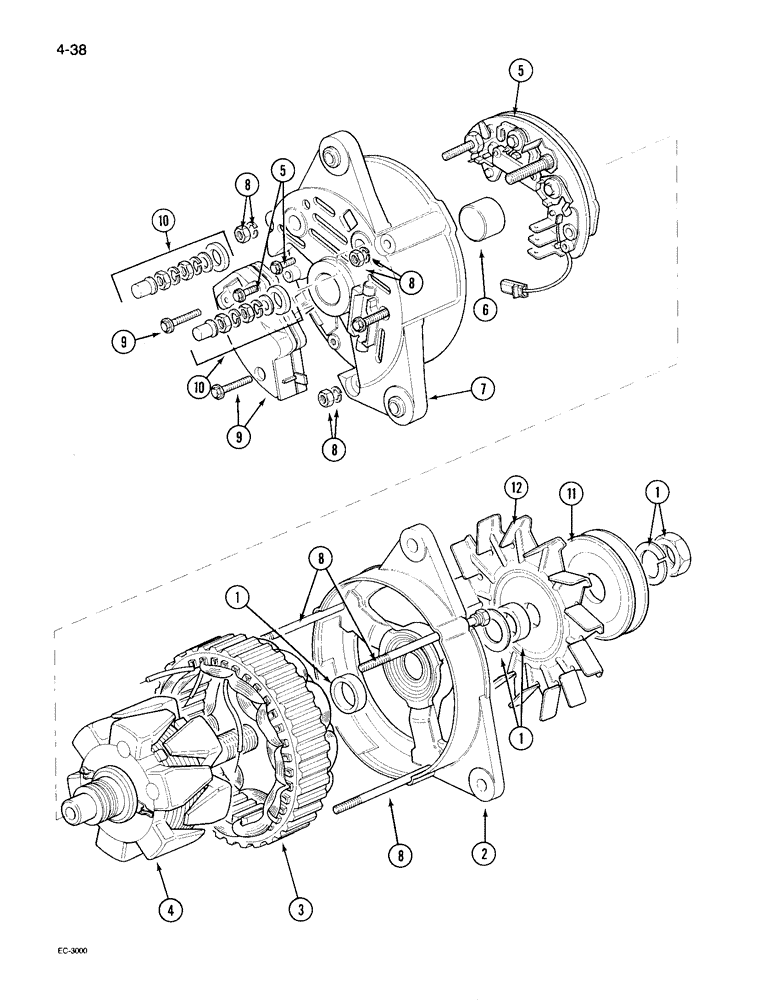

Запчасти Case IH 495 (4-038) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

92293C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas A127-45, with fan and pulley, Includes: Ref. 1 - 12

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

92293C1GV

ALTERNATOR

Value

1шт.

1

K262477

KIT

KIT - sundry parts, Lucas 45 amp

1шт.

2

K262268

BRACKET

HOUSING ASSEMBLY - drive end, Lucas 45 amp

1шт.

3

K262273

STATOR

STATOR - alternator, Lucas 45 amp

1шт.

4

K262269

ROTOR

ROTOR ASSEMBLY - alternator, Lucas 45 amp

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY - alternator, Lucas 45 amp

1шт.

6

K262272

ROLLER BEARING

BEARING - slip ring end, Lucas 45 amp

1шт.

7

K262271

SUPPORT

BRACKET - slip ring end, Lucas 45 amp

1шт.

8

K262274

PACKAGE

KIT - through bolt fixing, Lucas 45 amp

1шт.

9

K262266

REGULATOR

REGULATOR - complete with brush box, Lucas 45 amp

1шт.

10

K262478

KIT

KIT - terminal parts, Lucas 45 amp

1шт.

11

1970879C1

PULLEY

KIT - pulley, 17 mm bore, with washer, Lucas 45 amp

1шт.

12

K311704

FAN

KIT - fan, 17 mm bore, with spacer K311705, Lucas 45 amp

1шт.

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas A127-65, with fan and pulley, Includes: Ref. 1 - 12

1шт.

87800219R

REMAN-ALTERNATOR

Reman For New PN 92281C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

K262477

KIT

KIT - sundry parts, Lucas 65 amp

1шт.

2

K262268

BRACKET

HOUSING ASSEMBLY - drive end, Lucas 65 amp

1шт.

3

K262275

STATOR

STATOR - alternator, Lucas 65 amp

1шт.

4

K262270

ROTOR

ROTOR ASSEMBLY - alternator, Lucas 65 amp

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY - alternator, Lucas 65 amp

1шт.

6

K262272

ROLLER BEARING

BEARING - slip ring end, Lucas 65 amp

1шт.

7

K262271

SUPPORT

BRACKET - slip ring end, Lucas 65 amp

1шт.

8

K262274

PACKAGE

KIT - through bolt fixing, Lucas 65 amp

1шт.

9

K262266

REGULATOR

REGULATOR - complete with brush box, Lucas 65 amp

1шт.

10

K262478

KIT

KIT - terminal parts, Lucas 65 amp

1шт.

11

1970879C1

PULLEY

KIT - pulley, 17 mm bore, with washer, Lucas 65 amp

1шт.

12

K311704

FAN

KIT - fan, 17 mm bore, with spacer K311705, Lucas 65 amp

1шт.
