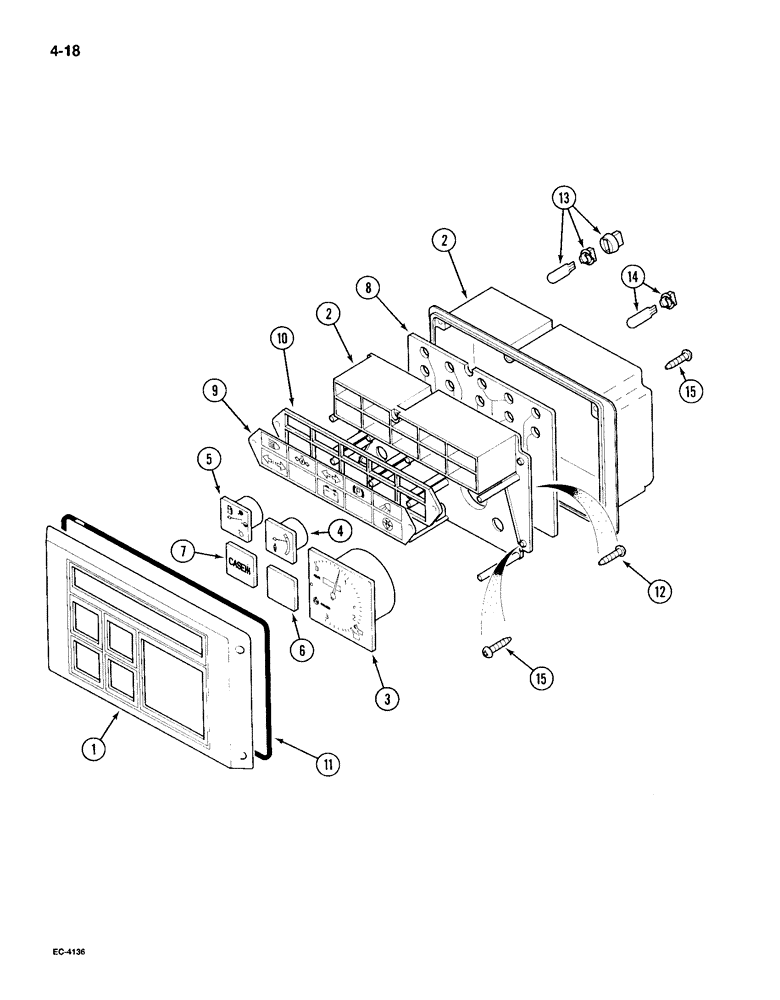

Запчасти Case IH 495 (4-018) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1536456C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments, Includes: Ref. 1 - 15

1шт.

1

K262050

BEZEL

1шт.

2

K262051

CASE ASSY.

CASE ASSEMBLY

1шт.

3

111816A1

HOURMETER

TACHOMETER

1шт.

4

111819A1

GAUGE

- water temperature

1шт.

5

111820A1

FUEL GAUGE

GAUGE - fuel

1шт.

6

111821A1

DIAL

- blank

1шт.

7

111822A1

DIAL

PLATE - dial name

1шт.

8

K262056

BOARD, PRINTED CIRCU

BOARD - printed circuit

1шт.

9

111823A1

FILTER

- warning lights

1шт.

10

K262058

GASKET

- warning lights

1шт.

11

K262059

GASKET,4.45mm Thk x 249.68mm ID

- sealing (Order D71343)

2шт.

12

K262060

SCREW

KIT - tachometer

1шт.

13

K262061

LAMP

ASSEMBLY - with boot (Order A47125 and W10478)

1шт.

14

K262062

LAMP

ASSEMBLY - without boo (Order A47125 and W10478)

1шт.

15

K262063

SELF-TAP SCREW

- self-tapping

1шт.
