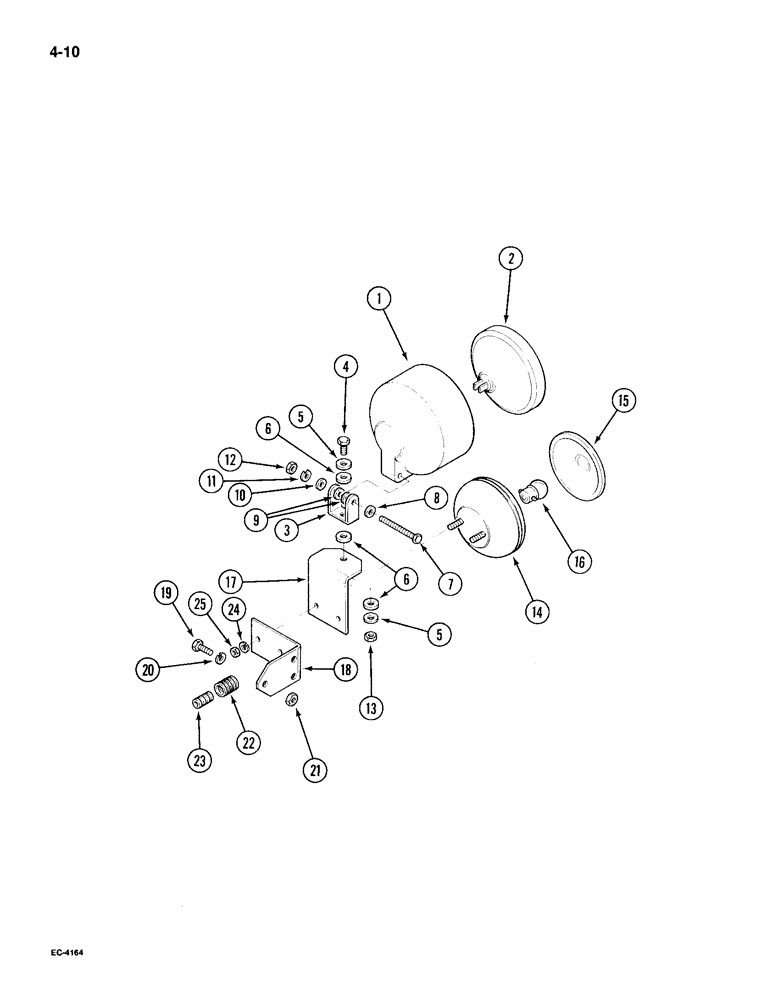

Запчасти Case IH 495 (4-010) - LIGHTS, REAR, WORK, STOP AND TAIL (04) - ELECTRICAL SYSTEMS

1537711C1

LAMP, WORK

LAMP ASSEMBLY - plough, Includes: Ref. 1 - 13

1шт.

1

3125880R1

HOUSING

BODY - plough light

1шт.

2

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

3

3108515R1

SUPPORT

BRACKET - plough light

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

6

3112401R1

WASHER

- nylon

3шт.

7

181323

BOLT,Hex, 1/4" - 28 x 2", Gr 5

1шт.

8

3072945R1

WASHER

- retaining

1шт.

9

3112690R1

WASHER

- flat

2шт.

10

195-517

WASHER,1/4"

- flat, 17/64 x 5/8 x 3/64 inch

1шт.

11

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

12

425-114

NUT,1/4"-28, G5

1шт.

13

1306680C1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

1шт.

14

967696R94

LAMP

LIGHT ASSEMBLY - combination, stop and tail, Includes: Ref. 15 and 16

1шт.

15

157729R1

LENS

- combination light

1шт.

Snap in lens, if needed is P/N 280579A1.

1шт.

16

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157

1шт.

17

1537133C1

SUPPORT

BRACKET - plough light mounting

1шт.

18

1537120C1

SUPPORT

BRACKET - stop and tail light

1шт.

19

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

1537669C1

LOOM,16.5 mm ID, 21 mm OD, 370 mm Length

TUBE - insulated convolute conduit, I.D. 16.5 mm

1шт.

23

1536349C1

LOOM,11.5" ID, 15.5" OD, 318" Length

TUBE - insulated convolute conduit, 318 mm

1шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
