Запчасти Case IH 495 (3-018) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

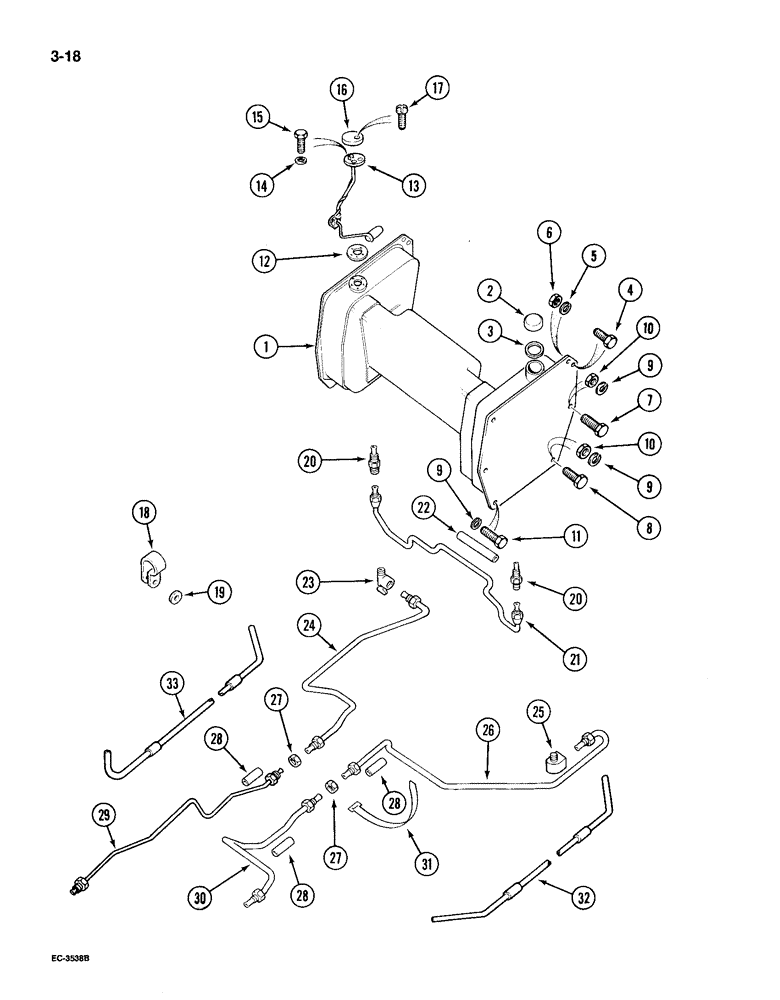

Схема запчастей Case IH 495 - (3-018) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM
26
3
9
25
22
20
10
28
31
9
24
13
12
9
4
1
16
11
14
20
30
6
28
2
5
27
9
10
17
15
27
8
23
33
28
29
32
21
18
19

Артикул

Название

Примечание

Количество

1

536035R94

FUEL TANK

TANK ASSEMBLY - fuel, with filler cap, Includes: Ref. 2 and 3

1шт.

2

538063R1

PLUG

CAP ASSEMBLY - fuel tank filler

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel tank filler cap

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

12

528359R1

GASKET

- sending unit

1шт.

13

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield

1шт.

14

533199R1

SEALING WASHER

- sending unit cover

4шт.

14

796002R1

COPPER WASHER

WASHER - copper, sending unit cover

1шт.

15

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

4шт.

15

451625

SCREW

- machine, hex head, No. 10 NC x 1/2 inch

1шт.

16

528360R2

COVER

- sending unit

1шт.

17

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

18

316433C1

CLAMP

CLIP - cable

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

1502069C1

PIPE

ASSEMBLY - clearance

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE ASSEMBLY - crossover

1шт.

22

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer (Order 87086C1) 0.31" ID x 10.00"

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSEMBLY - shut-off

1шт.

24

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE ASSEMBLY - union to shut-off valve, Serial Range: -JJE0004470

1шт.

25

137422

ELBOW

- 90 degree, rear fuel return tube

1шт.

26

3129262R2

PIPE

TUBE ASSEMBLY - rear, fuel return, Serial Range: -JJE0004470

1шт.

27

442337

NUT

UNION - straight, 5/16 inch inverted flare, Serial Range: -JJE0004470

3шт.

27

442395

FITTING

UNION - straight, 5/16 inch inverted flare (Optional to 442337), Serial Range: -JJE0004470

2шт.

28

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve, Spacer (Order 87086C1) 0.31" ID x 2.50", Serial Range: -JJE0004470

3шт.

29

3116238R3

PIPE,787.4, 142.24 mm Length

TUBE ASSEMBLY - union to filter, Serial Range: -JJE0004470

1шт.

30

3112790R1

PIPE

ASSEMBLY - front, fuel return, Serial Range: -JJE0004470

1шт.

31

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, Serial Range: -JJE0004470

3шт.

32

1536103C1

PIPE,8 mm OD, 2200, 42 mm Length

ASSEMBLY - fuel return, Start Serial: JJE0004470

1шт.

33

1536098C1

FUEL HOSE,8 mm OD, 2340, 40 mm Length

ASSEMBLY - connector to fuel Filter, Start Serial: JJE0004470

1шт.
