Запчасти Case IH 495 (3-014) - FOOT ACCELERATOR (03) - FUEL SYSTEM

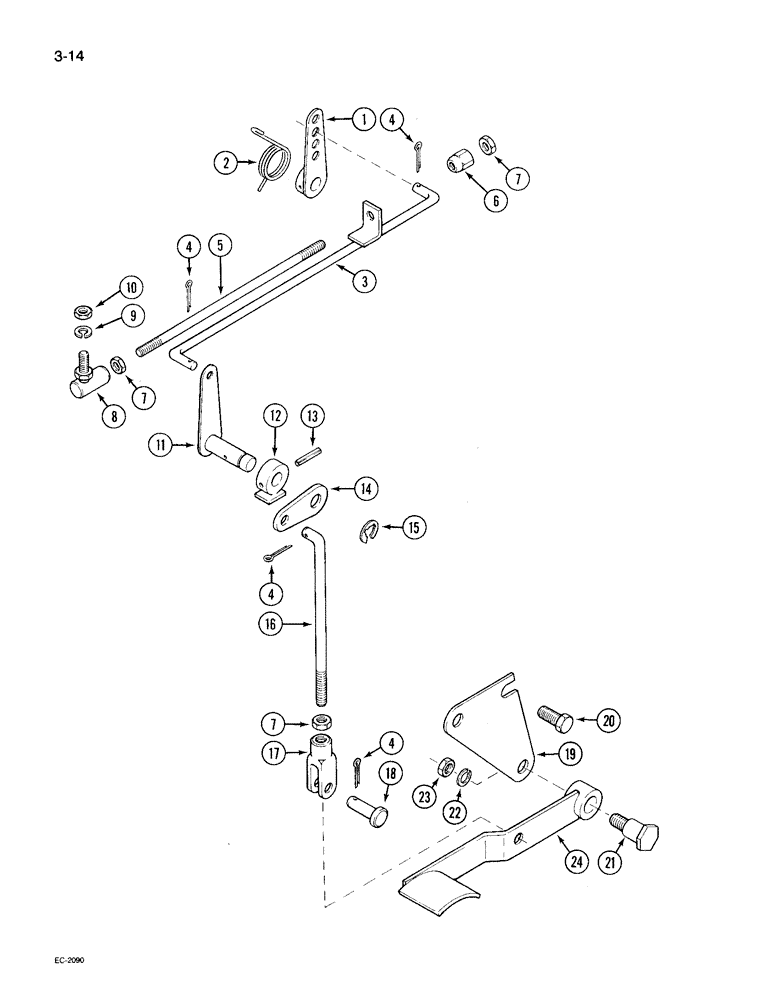

Схема запчастей Case IH 495 - (3-014) - FOOT ACCELERATOR (03) - FUEL SYSTEM
16
5
10
7
13
24
14
6
20
19
12
4
4
15
2
4
8
22
11
23
3
4
9
1
21
17
7
18
7

Артикул

Название

Примечание

Количество

1

539572R3

LEVER ASSY.

LEVER ASSEMBLY - idler arm

1шт.

2

539012R1

SPRING

- torsion

1шт.

3

528767R1

ROD ASSY.

ROD ASSEMBLY - pull, bellcrank

1шт.

4

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

5

528775R3

ROD

- pick-up, foot accelerator

1шт.

5

1333041C1

ROD

- pick-up, foot accelerator (Orchard tractor)

1шт.

6

528776R1

NUT

- swivel, foot accelerator pick-up rod

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

3шт.

8

19318R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type F (Order 19322R1)

1шт.

8

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A, Serial Range: (Optional-19318R1)

1шт.

8

27258R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type G, Serial Range: (Optional-19318R1)

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-114

NUT,1/4"-28, G5

1шт.

11

528760R3

ARM

ASSEMBLY - bellcrank

1шт.

12

532967R3

ROTATOR

ARM ASSEMBLY - actuating

1шт.

13

19368R1

PIN,5/32" x 1", Coiled

1шт.

14

528764R3

LEVER

- bellcrank

1шт.

15

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

16

1537492C2

ROD

- pull, foot accelerator

1шт.

16

1333120C1

ROD

- pull, foot accelerator (Orchard tractor)

1шт.

17

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4 inch NF

1шт.

17

1500842C1

YOKE

CLEVIS - adjustable, Serial Range: (Optional-104036)

1шт.

18

138083

PIN

- clevis, 1/4 x 25/32 inch

1шт.

19

528754R2

SUPPORT

BRACKET - support, foot accelerator pedal

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

532965R3

BOLT,3/8" - 16 x 1.7"

- foot pedal pivot

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

69409C91

PACKAGE

KIT - service, foot pedal accelerator

1шт.

Выбрано товаров: 29
