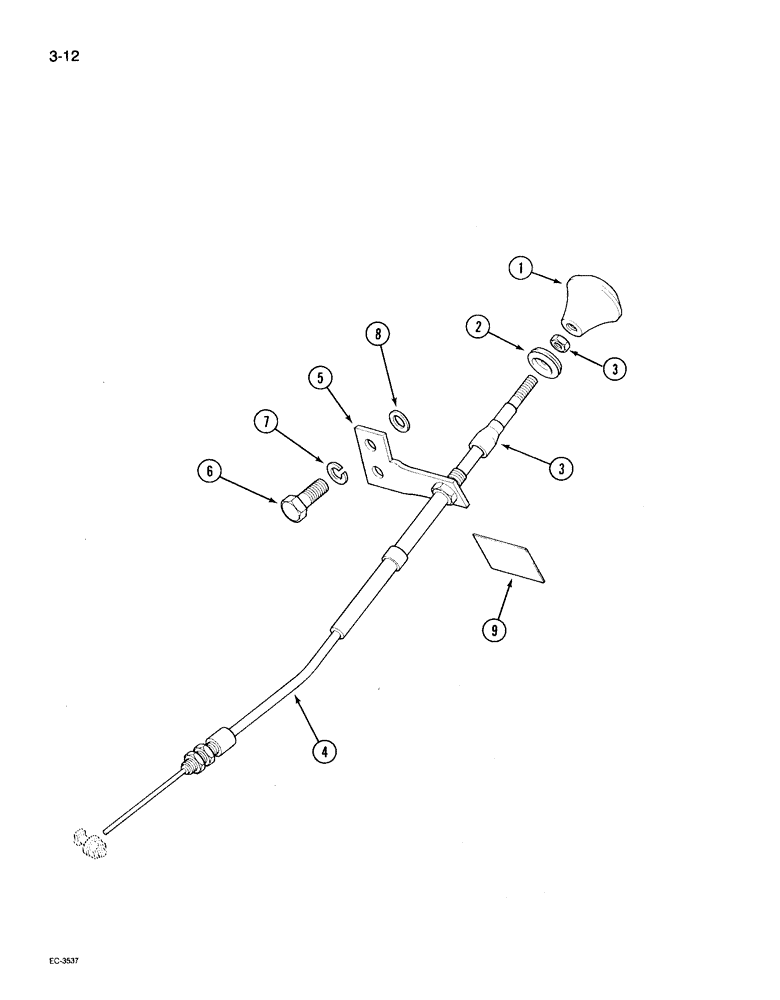

Запчасти Case IH 495 (3-012) - FUEL SHUT-OFF CONTROL (03) - FUEL SYSTEM

1

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

2

1333007C1

GROMMET

- diaphram, 3/4 inch

1шт.

3

1288353C1

BOOT

- rubber

1шт.

The illustration shows two Ref. 3's. The one pointing to the nut should not be labeled Ref. 3. This nut is part of the cable. Per the print, the nut is M5.

1шт.

4

1333000C1

CABLE ASSY.

CABLE - fuel shut-off control

1шт.

5

1536068C1

SUPPORT

BRACKET - mounting, fuel shut-off cable

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

1333014C1

DECAL

- fuel control, See Figure 9-060

1шт.

787190R1

COLLAR

PIVOT, is the phantomed part shown on the illustration at the end of the cable

1шт.
