Запчасти Case IH 495 (3-002) - FUEL FILTERS AND CONNECTIONS (03) - FUEL SYSTEM

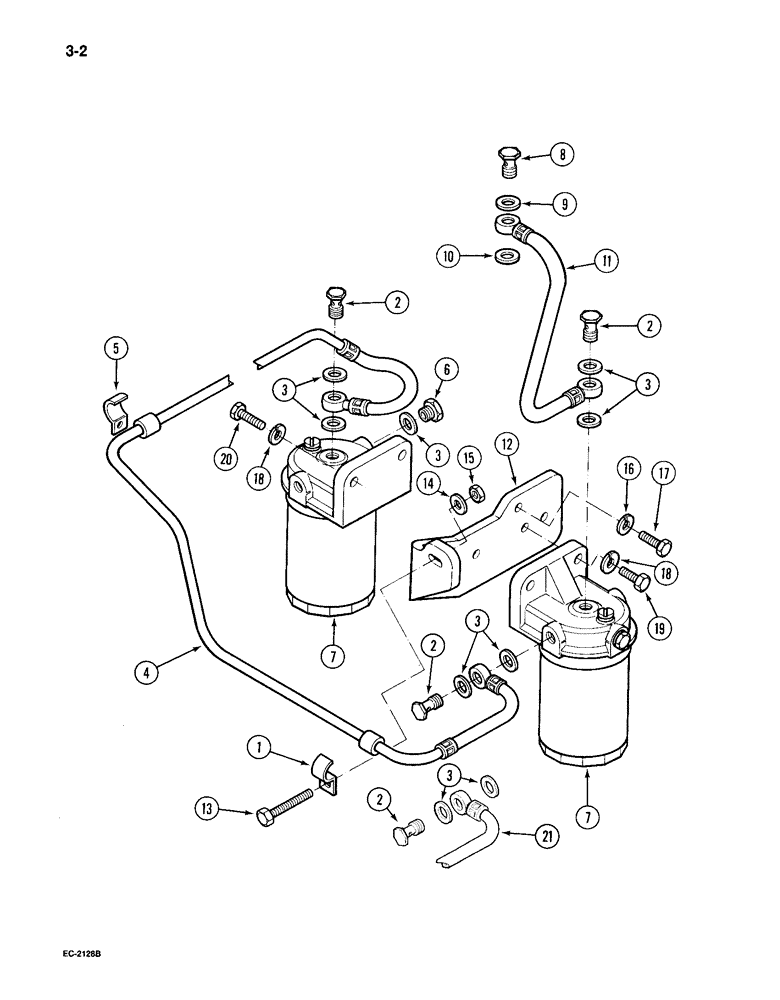

Схема запчастей Case IH 495 - (3-002) - FUEL FILTERS AND CONNECTIONS (03) - FUEL SYSTEM
3
14
12
1
10
8
5
21
13
3
3
2
6
3
7
7
4
2
2
18
16
15
20
19
17
2
9
18
11
3

Артикул

Название

Примечание

Количество

1

3056927R1

CLAMP

CLIP - fuel line

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow, inlet union

3шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

7шт.

4

3228065R1

FUEL HOSE

1шт.

5

711733R1

CLIP

- fuel line

1шт.

6

3056600R1

ADAPTER

ADAPTOR - filter

1шт.

7

3132452R92

FILTER

- fuel (See Figure 3-004)

2шт.

8

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

9

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

(Order E135042) M12 x 15.5 x 1.5

1шт.

10

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

11

3132324R1

HOSE,8mm ID x 275mm L

PIPE - fuel, watch dog filter

1шт.

12

1329085C1

SUPPORT

BRACKET - fuel filter

1шт.

13

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

14

25543R1

WASHER,.344" x 11/16" x .098", HDN

- hardened, 5/16 inch

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

1шт.

16

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

18

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

4шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

1530630C1

FUEL HOSE

(Used When Only One Filter Fitted)

1шт.

Выбрано товаров: 21
