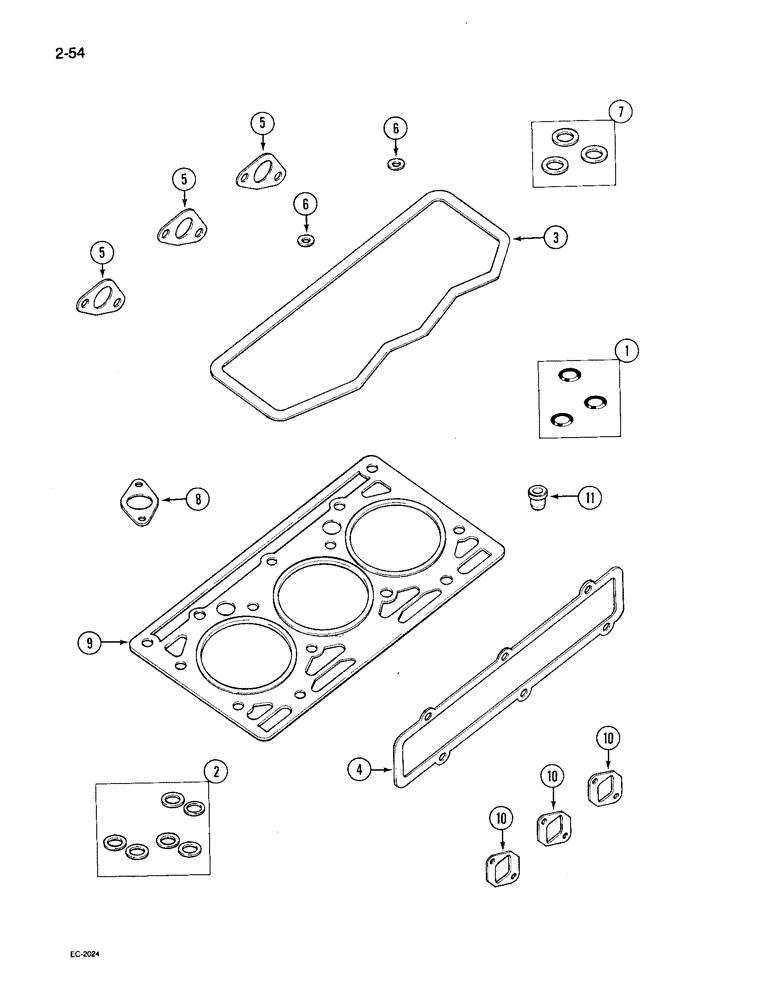

Запчасти Case IH 495 (2-054) - ENGINE SERVICE KIT, CYLINDER HEAD GASKETS (02) - ENGINE

3136798R99

GASKET KIT

KIT - service, cylinder head gaskets, Includes: Ref. 1 - 11

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

3шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET - stop screw

6шт.

3

3138641R1

GASKET

- valve housing cover

1шт.

4

3055397R3

GASKET

- intake manifold

1шт.

5

3055306R3

GASKET,1.5mm Thk

- manifold, water collecting

3шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve cover

2шт.

7

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, injection nozzle

3шт.

8

3132143R2

GASKET,1mm Thk

- water outlet flange

1шт.

9

3228361R2

CYLINDER HEAD GASKET

- cylinder head

1шт.

10

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

11

3218399R91

GASKET KIT

KIT - valve stem seal

1шт.
