Запчасти Case IH 495 (2-040) - CYLINDER BLOCK, SIDE COVER AND FLYWHEEL HOUSING (02) - ENGINE

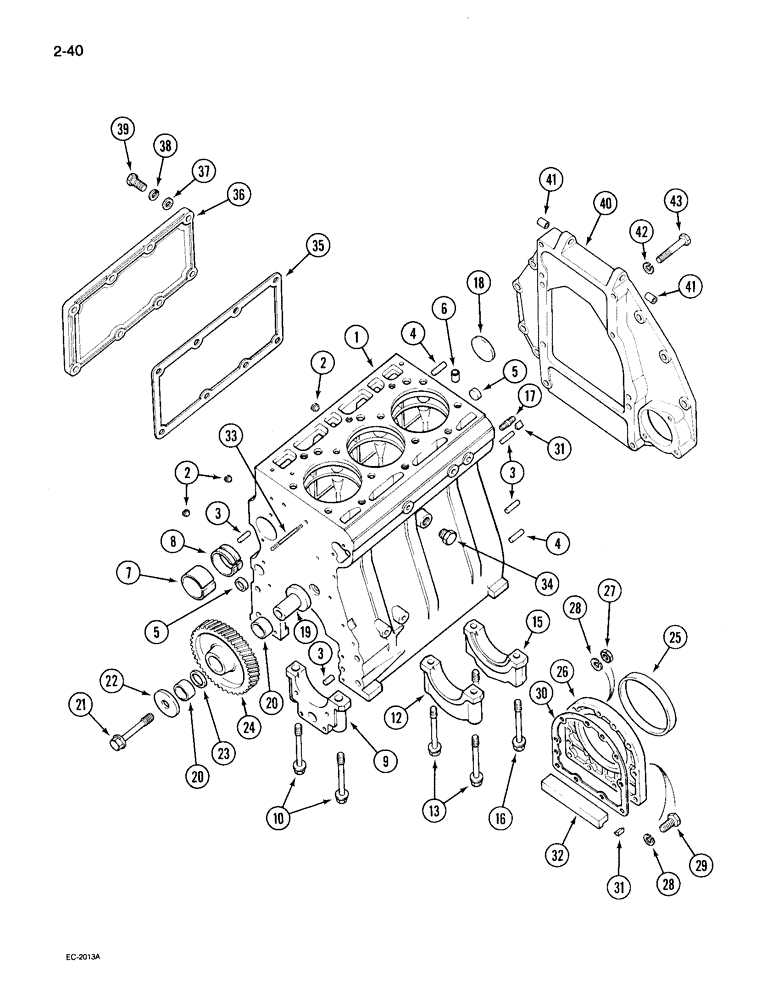

Схема запчастей Case IH 495 - (2-040) - CYLINDER BLOCK, SIDE COVER AND FLYWHEEL HOUSING (02) - ENGINE
3
39
21
4
32
13
41
40
18
33
17
10
30
12
3
22
8
41
25
7
2
23
28
31
2
27
15
43
3
38
24
20
20
28
6
37
34
5
26
9
1
35
4
31
29
16
36
5
19
42

Артикул

Название

Примечание

Количество

1

3055001R37

CRANKCASE

BLOCK ASSEMBLY - cylinder, Includes: Ref. 2 - 18

1шт.

2

3144520R1

PLUG

- slotted headless pipe

3шт.

3

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

4шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

933537R1

PLUG,M25, Conical

- cup

2шт.

6

3055007R1

BUSHING

- dowel

2шт.

7

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft, front

1шт.

8

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft

3шт.

9

NSS

NOT SOLD SEPARAT

CAP - front crankshaft bearing

1шт.

10

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

2шт.

3144438R91

BEARING ASSY

KIT - service, bearing cap, Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing

1шт.

13

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

2шт.

3144436R91

CRANKSHAFT BEARING

KIT - service, rear main bearing cap, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - rear crankshaft bearing

1шт.

16

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

2шт.

17

3055270R1

STUD

- rear

1шт.

18

172602

SUPPORT

- expansion, 2-3/4 inch

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

19

3055373R1

CARRIER

- idler gear

1шт.

20

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

BEARING - needle

2шт.

21

3055374R2

BOLT

BOLT - idler gear carrier

1шт.

22

3055372R1

DISC

RING - anti-wear, idler gear

1шт.

23

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - distance

1шт.

24

3055043R3

PINION

GEAR - idler, 68 teeth

1шт.

25

3138701R91

SEAL

SEAL - oil, crankcase rear

1шт.

26

3055216R1

RETAINER

- oil seal

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

1шт.

28

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

9шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

30

3055215R3

GASKET

- crankcase oil seal retainer

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

31

714868R1

SEALING STRIP

- sealing

2шт.

Part of Crankcase Gaskets Service Kit

1шт.

32

3055214R1

SUPPORT

STRIP - crankcase sealing

1шт.

33

3055989R1

STUD

- crankcase front

1шт.

34

20990R1

PLUG

- hex, 3/8 inch PT

1шт.

35

3055394R3

GASKET

- side cover

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

36

3132815R2

COVER

- cylinder block side

1шт.

37

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

8шт.

38

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

39

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

40

3136059R22

PLATE ASSY.

HOUSING ASSEMBLY - flywheel, Includes: Ref. 41

1шт.

41

3136060R2

BUSHING

- flywheel housing

2шт.

42

3050128R1

LOCK WASHER

- Lock

4шт.

43

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 18, 30, 31 and 35, See Figure 2-056

1шт.
