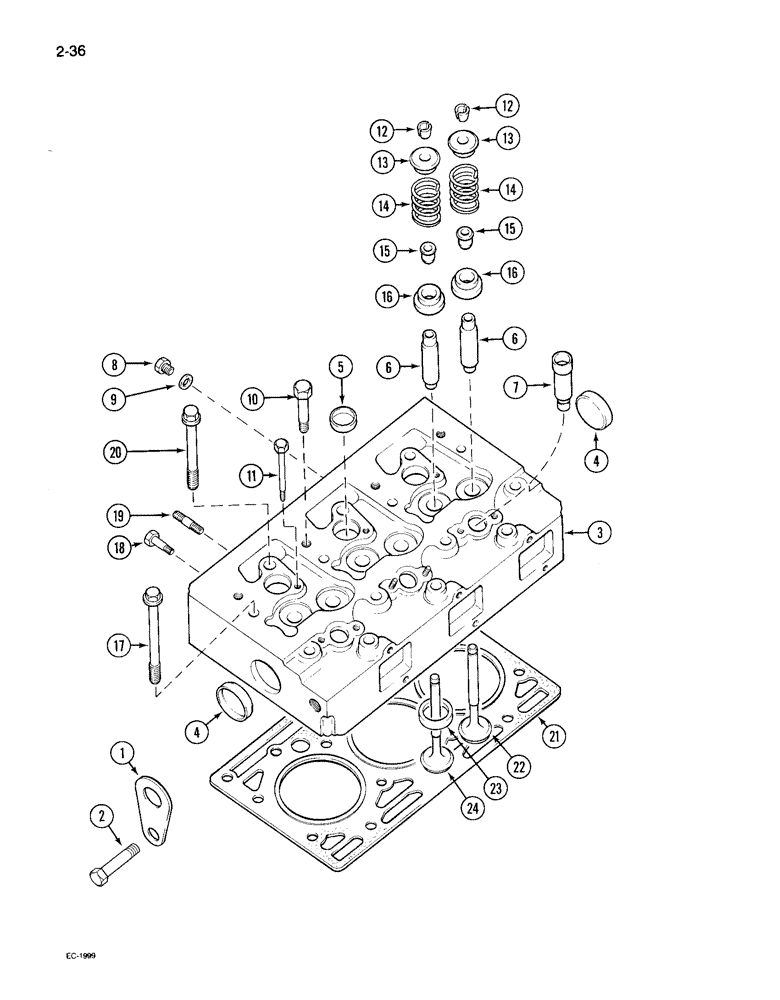

Запчасти Case IH 495 (2-036) - CYLINDER HEAD (02) - ENGINE

1

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

2

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

3

3055366R96

HEAD (CYLINDER)

HEAD - cylinder, Includes: Ref. 4 - 7

1шт.

4

934003R1

PLUG,M52, Conical

- expansion

2шт.

5

933537R1

PLUG,M25, Conical

- cup

3шт.

6

3055022R2

VALVE GUIDE

GUIDE - valve stem

6шт.

7

3055344R1

SLEEVE

INSERT - nozzle holder

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Rocker shaft bracket) Hex, 1/2"-13 x 3 1/4", G5

4шт.

11

13-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

(Valve cover) Hex, 5/16"-18 x 4 1/2", G5

2шт.

12

3055057R91

ROCKER ARM COTTER

KEY - spring lock valve

12шт.

13

3055058R2

SPRING CUP

CAP - valve spring retainer

6шт.

14

3055060R1

SPRING

- valve

6шт.

15

3218399R91

GASKET KIT

KIT - valve stem seal

6шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

16

3055059R91

CAP

ROTATOR - valve

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - hex, cylinder head

8шт.

18

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Water collecting manifold Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

19

3055663R1

STUD

- exhaust manifold (Without coolant filter)(Order 3228189R1)

6шт.

19

3055663R1

STUD

- exhaust manifold (With coolant filter)(Order 3228189R1)

4шт.

19

3228188R1

STUD

- exhaust manifold (With coolant filter)

2шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- hex, special, cylinder head

6шт.

21

3228361R2

CYLINDER HEAD GASKET

- cylinder head

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

22

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

3шт.

23

3132361R1

INSERT

- seat, exhaust valve, 0.016 inch (0.40 mm) oversize

3шт.

23

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.006 inch (0.15 mm) oversize

3шт.

24

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

3шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets: Includes: Ref. 15 and 21, See Figure 2-054

1шт.
