(2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT

Запчасти Case IH 495 (2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT (02) - ENGINE

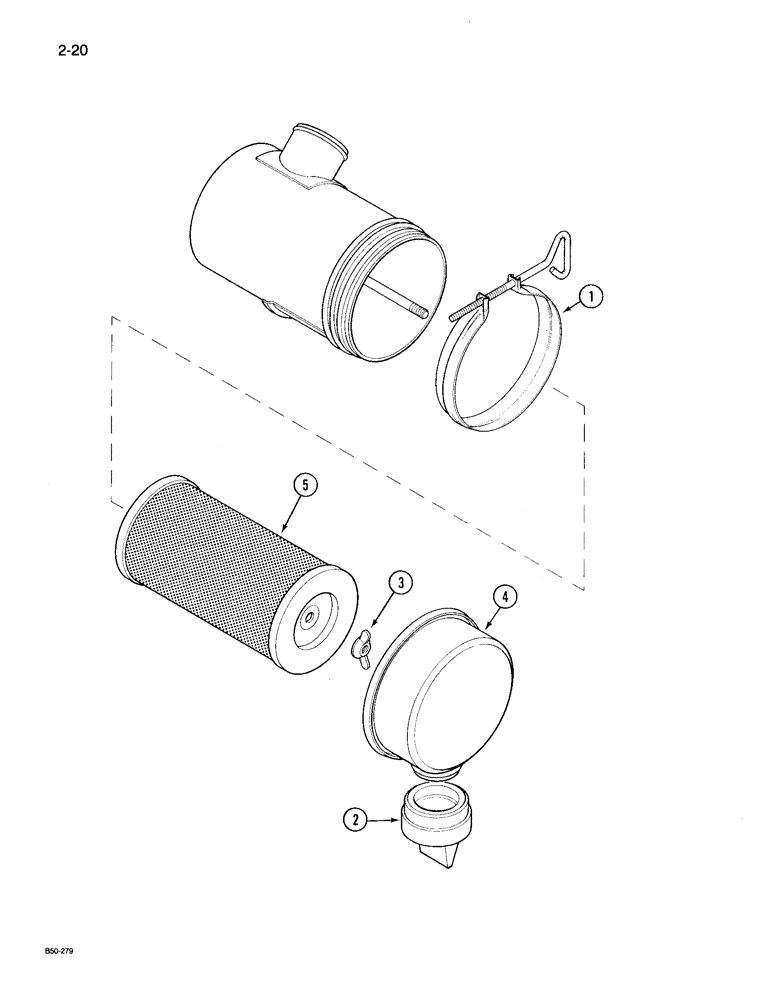

Схема запчастей Case IH 495 - (2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT (02) - ENGINE
3
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125250R92

AIR CLEANER

CLEANER ASSEMBLY - air, order 3125198R94, Includes: Ref. 1 - 5

1шт.

1

3035559R1

CLAMP

- band (Order F84999)

1шт.

2

850470C1

BELLOWS

VALVE - evacuator

1шт.

3

412078C1

WING NUT

NUT ASSEMBLY - with gasket (Order L35499)

1шт.

4

3125252R1

COVER ASSY

COVER - air cleaner

1шт.

5

3125251R1

FILTER, ELEMENT

ELEMENT - air cleaner (Order 1265510C1)

1шт.
