(2-016) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT

Запчасти Case IH 495 (2-016) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT (02) - ENGINE

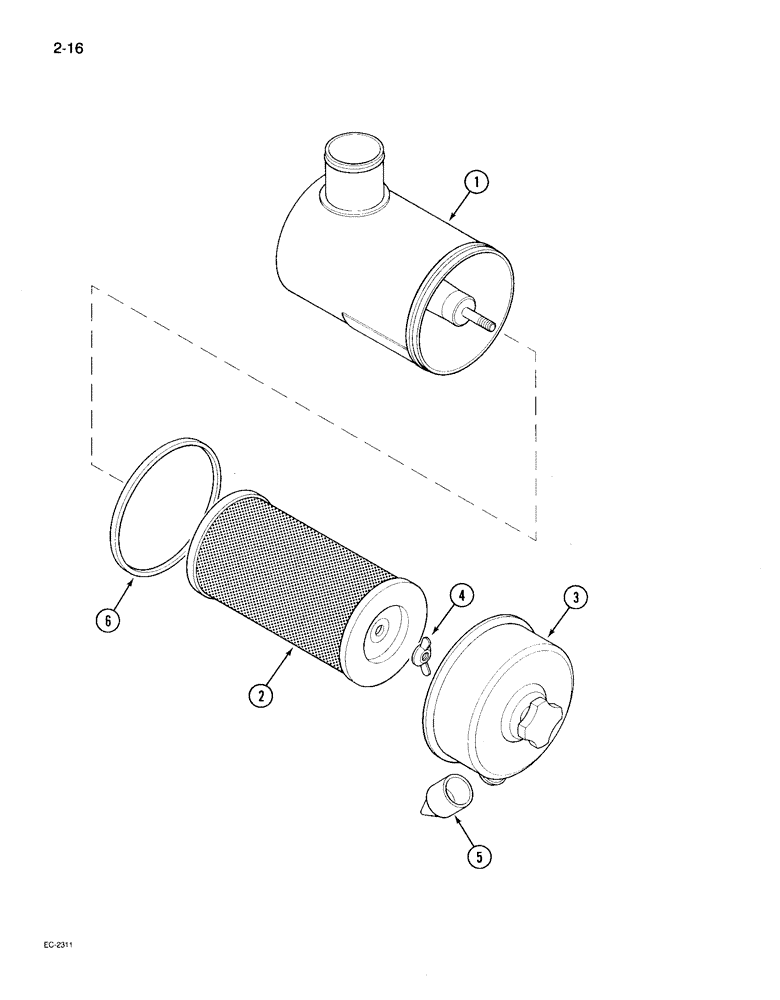

Схема запчастей Case IH 495 - (2-016) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT (02) - ENGINE
1
2
6
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125198R94

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

3125199R2

AIR FILTER

ELEMENT - primary, order 1265510C1

1шт.

3

3125200R2

COVER ASSY

COVER - air cleaner

1шт.

4

3124435R1

NUT

NUT - wing, complete with gasket

1шт.

5

3124432R1

DUST VALVE

unloader

1шт.

6

1900091C1

GASKET

- air cleaner

1шт.
