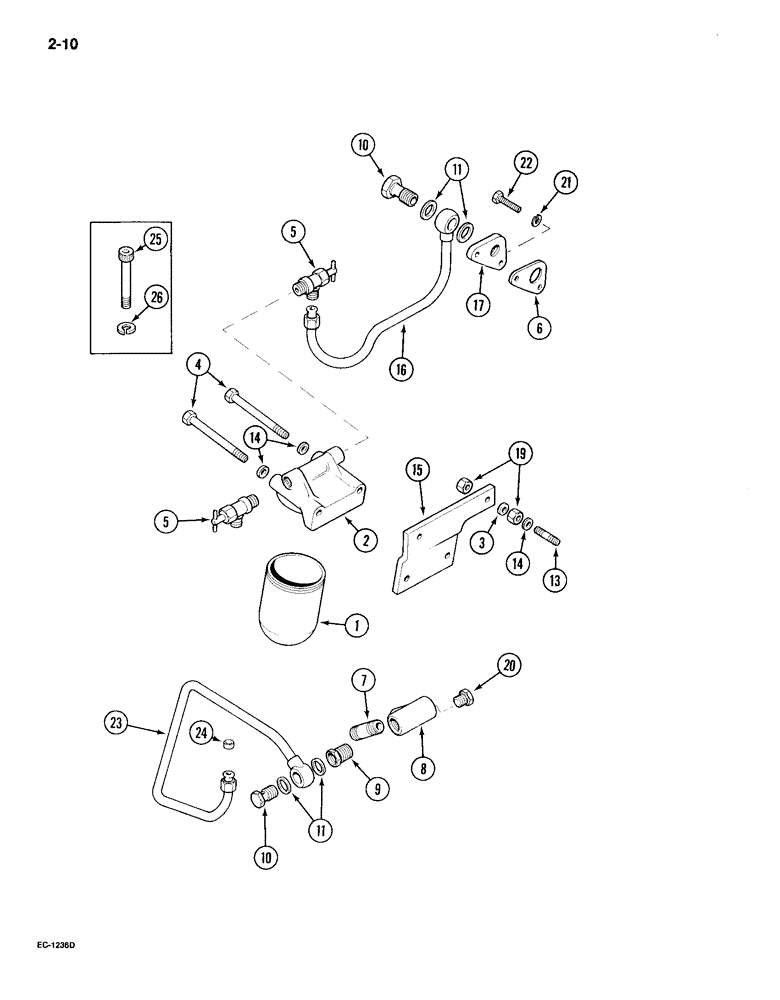

Запчасти Case IH 495 (2-010) - COOLANT FILTER (02) - ENGINE

1

A151931

FILTER

AND GASKET KIT - coolant

1шт.

2

1800029C1

HEAD

AND RETAINER - coolant filter (Shown), Serial Range: -JJE0027660

1шт.

2

A152821

HEAD

- coolant filter, Start Serial: JJE0027660

1шт.

3

25534R1

WASHER

- hardened, 0.406 x 0.812 x 0.065 inch

2шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut off

2шт.

6

3055306R3

GASKET,1.5mm Thk

- manifold, water collecting

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

7

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER - pipe, long, 1/2 NPT x 1-1/2 inch

1шт.

8

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe

1шт.

9

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

BUSHING - reducer, 1/2 to 3/8 inch dryseal taper

1шт.

10

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, 16 mm

2шт.

11

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

13

3228188R1

STUD

- exaust manifold

2шт.

14

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 0.406 x 0.75 x 0.105 inch

4шт.

15

1329062C1

SUPPORT

BRACKET - coolant filter, shown, Serial Range: -JJE0027660

1шт.

15

3228211R1

SUPPORT

BRACKET - coolant filter, Start Serial: JJE0027660

1шт.

16

1329064C91

PIPE

- coolant filter outlet, Serial Range: -JJE0027660

1шт.

16

3228212R93

PIPE

- coolant filter outlet (Order 1806441C91), Start Serial: JJE0027660

1шт.

17

3218396R2

FLANGE

PLATE - cover

1шт.

19

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

20

444630

PLUG,Hex Hd, 1/2"-14

- pipe, hex head

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

23

1329009C91

PIPE

- coolant filter inlet

1шт.

24

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

25

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch, Start Serial: JJE0027660

4шт.

26

3050221R1

LOCK WASHER

- lock, Start Serial: JJE0027660

4шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 6, See Figure 2-054

1шт.
