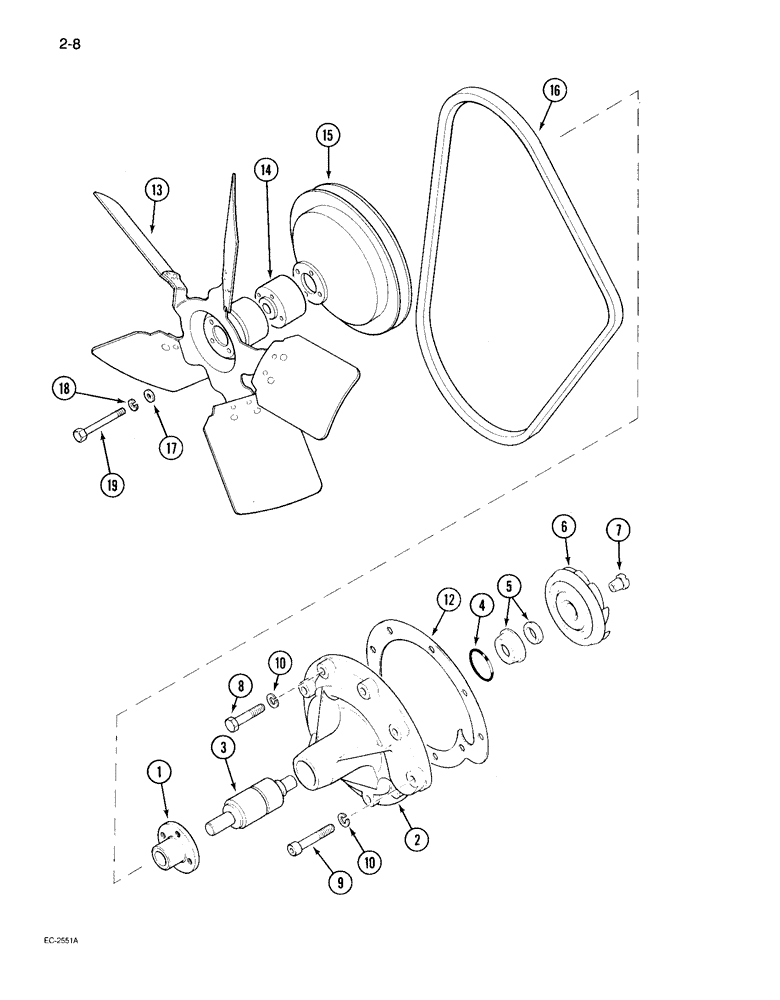

Запчасти Case IH 495 (2-008) - WATER PUMP AND FAN (02) - ENGINE

3136053R92

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1 - 7

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water, remanufactured

1шт.

1928123C1

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this part number to return water pump core for credit)

1шт.

1

3132146R1

HUB

- pulley

1шт.

2

3132677R41

BODY

ASSEMBLY - water pump, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

- water pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - water pump

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

6

3055211R2

IMPELLER

- water pump

1шт.

7

3055308R1

PLUG

- closing

1шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

7шт.

9

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

12

3055177R2

GASKET

- water pump

1шт.

Part of reconditioning water pump kit P/N 3055285R94

1шт.

13

1275810C1

FAN

- engine cooling

1шт.

14

403335R1

SPACER

- fan

2шт.

15

401124R2

PULLEY

- water pump

1шт.

16

3129140R1

V-BELT,13.70 mm W

Fan 13.70 mm W

1шт.

17

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

4шт.

18

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

19

14-456

BOLT,Hex, 1/4" - 28 x 3-1/2", Gr 5

Hex, 1/4"-28 x 3-1/2", G5

4шт.

3055285R94

GASKET KIT

KIT - reconditioning, water pump, Includes: Ref. 4, 5 and 12

1шт.
