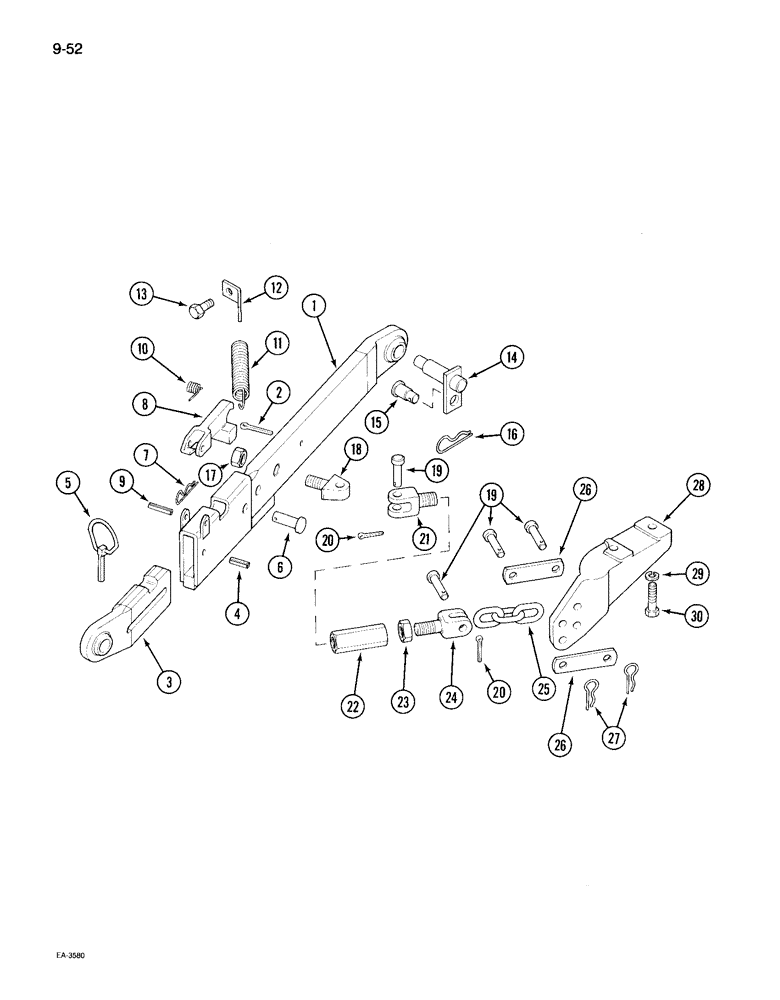

Запчасти Case IH 495 (9-052) - THREE POINT HITCH, TELESCOPIC LOWER LINKS (09) - CHASSIS/ATTACHMENTS

1

3121157R91

LOWER LINK

LINK ASSEMBLY - front section, lower left, Includes: Ref. 2

1шт.

1

3121158R91

LOWER LINK

LINK ASSEMBLY - front section, lower right, Includes: Ref. 2

1шт.

2

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

3

403020R2

END FITTING

LINK - rear section, lower right

1шт.

3

403019R2

END FITTING

LINK - rear section, lower left

1шт.

4

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

5

1328218C1

LINCH PIN,11mm OD

Assy - quick attachable

2шт.

6

402645R2

PIN

- lower link

2шт.

7

1970958C1

PIN, SPLIT (COTTER)

PIN - cotter, 1/4 x 1-1/4 inch

2шт.

8

403023R1

LATCH

- rear section, lower link

2шт.

9

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

10

403024R1

SPRING

- rear section, latch return

2шт.

11

1970961C1

SPRING

- check chain restraining

2шт.

12

3121228R1

BRACKET

- sway chain

2шт.

13

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

14

3118060R1

PIN

- lower link

2шт.

15

3118063R2

PIN,28.57mm OD x 48.3mm L

- lock, lower link

2шт.

16

538406R1

COTTER PIN

PIN - quick attachable

2шт.

17

19853R1

LOCK NUT,7/8"-14

NUT - hex lock, 7/8 inch NF

2шт.

18

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT - eye, limiter chain

2шт.

19

528112R2

PIN,15.77mm OD x 54.61mm L

- clevis

1шт.

20

32-814

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

21

3118016R1

CLEVIS,7/8" - 14

- limiter chain (Left hand thread)

2шт.

22

3116619R1

NUT

- adjusting

2шт.

23

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8 inch NF

2шт.

24

70622C1

CLEVIS,7/8" - 14

- limiter chain

2шт.

25

3113595R1

CHAIN,139.7mm L

CHAIN - limiter

2шт.

26

3113594R1

PLATE

STRAP - check chain adjusting

4шт.

27

720631R1

LINCH PIN

PIN - cotter, quick attachable

4шт.

28

529874R1

SUPPORT

BRACKET - check chain, left

1шт.

28

529875R1

SUPPORT

BRACKET - check chain, right

1шт.

29

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

1092798R3

DECAL

- sway chains (English) (Not illustrated)

1шт.

1092799R3

DECAL

- sway chains (French) (Not illustrated)

1шт.
