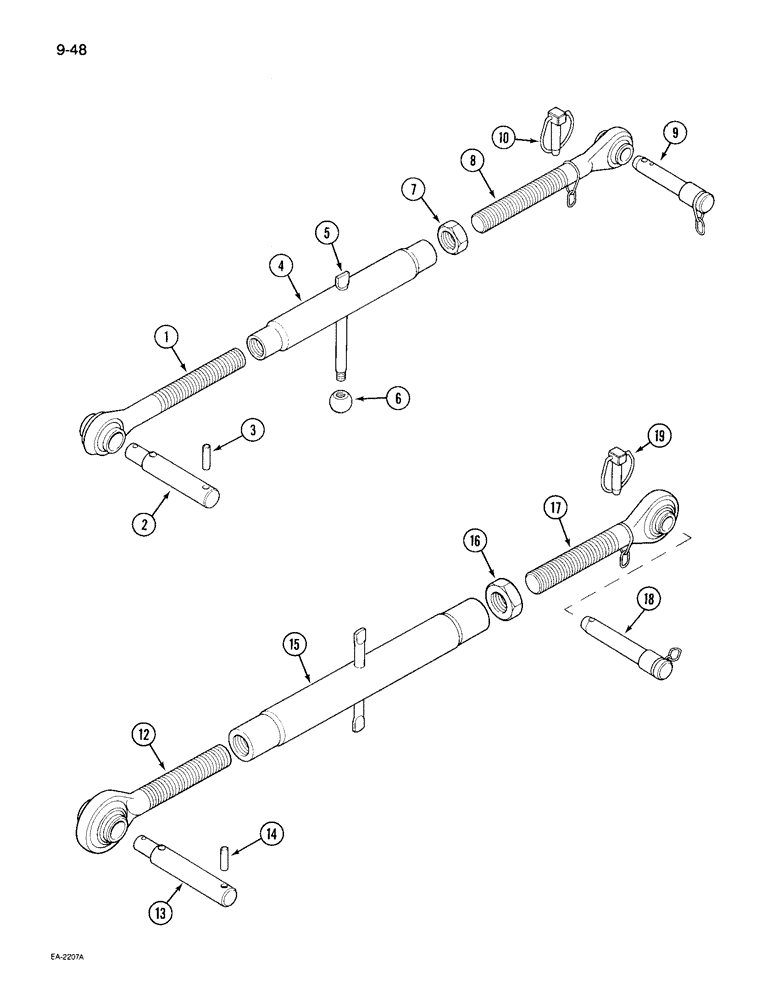

Запчасти Case IH 495 (9-048) - THREE POINT HITCH, UPPER LINKS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
528085R93
LINK
ASSEMBLY - upper, with fixed lower links, Includes: Ref. 1 - 10
1шт.
1
527998R1
SCREW
ASSEMBLY - upper link (Left hand thread), with fixed lower links
1шт.
2
1536396C1
PIN,40mm OD x 160mm L
ASSEMBLY - upper link, category II, with fixed lower links, Includes: Ref. 3
1шт.
3
738-3640
PIN,6mm OD x 40mm L, Coiled
- coiled spring, 6 x 40 mm, with fixed lower links
1шт.
4
528002R1
TURNBUCKLE
- upper link, with fixed lower links
1шт.
5
65958C2
ROD
- turnbuckle handle, with fixed lower links
1шт.
6
3048296R1
BUTTON
KNOB - turnbuckle rod, with fixed lower links
1шт.
8
528000R1
SCREW
ASSEMBLY - upper link, with fixed lower links
1шт.
9
1328192C3
PIN,25.4mm OD x 134mm L
- upper link, category I, with fixed lower links
1шт.
10
1328218C1
LINCH PIN,11mm OD
Assy - quick attachable, with fixed lower links
1шт.
1328188C92
LINK
ASSEMBLY - upper (Optional to 528085R93), with fixed lower links, Includes: Ref. 12 - 19
1шт.
12
1328189C1
SCREW,M27 x 3, LH Threads
SCREW ASSEMBLY - upper link (Left hand thread), with fixed lower links
1шт.
13
1536396C1
PIN,40mm OD x 160mm L
ASSEMBLY - upper link, category II, with fixed lower links, Includes: Ref. 14
1шт.
14
738-3640
PIN,6mm OD x 40mm L, Coiled
- coiled spring, 6 x 40 mm, with fixed lower links
1шт.
15
1328191C1
TURNBUCKLE
- upper link, with fixed lower links
1шт.
16
905709R1
THIN NUT,Thin, M27 x 3
- hex, 27 mm - 3.00, with fixed lower links
1шт.
17
1328190C1
SCREW,M27 x 3
SCREW ASSEMBLY - upper link, with fixed lower links
1шт.
18
1328192C3
PIN,25.4mm OD x 134mm L
- upper link, category II, with fixed lower links
1шт.
19
1328218C1
LINCH PIN,11mm OD
Assy - quick attachable, with fixed lower links
1шт.
528079R93
LINK
ASSEMBLY - upper, with telescopic lower links, Includes: Ref. 1 - 10
1шт.
1
527994R1
SCREW
ASSEMBLY - upper link (Left hand thread), with telescopic lower links
1шт.
2
1536396C1
PIN,40mm OD x 160mm L
ASSEMBLY - upper link, category II, with telescopic lower links, Includes: Ref. 3
1шт.
3
738-3640
PIN,6mm OD x 40mm L, Coiled
- coiled spring, 6 x 40 mm, with telescopic lower links
1шт.
4
528003R1
TURNBUCKLE
- upper links, with telescopic lower links
1шт.
5
65958C2
ROD
- turnbuckle handle, with telescopic lower links
1шт.
6
3048296R1
BUTTON
KNOB - turnbuckle rod, with telescopic lower links
1шт.
7
425-1418
JAM NUT,Jam, 1 1/8"-7, G5
- hex, 1-1/8 inch NC, with telescopic lower links
1шт.
8
527996R1
SCREW
SCREW ASSEMBLY - upper link, with telescopic lower links
1шт.
9
1328192C3
PIN,25.4mm OD x 134mm L
- upper link, category I, with telescopic lower links
1шт.
10
533189R1
PIN
ASSEMBLY - quick attachable (Order 1328218C1), with telescopic lower links
1шт.
1328195C93
UPPER LINK
LINK ASSEMBLY - upper (Optional to 528079R93), with telescopic lower links, Includes: Ref. 12 - 19
1шт.
12
1328189C1
SCREW,M27 x 3, LH Threads
SCREW ASSEMBLY - upper link (Left hand thread), with telescopic lower links
1шт.
13
1536396C1
PIN,40mm OD x 160mm L
ASSEMBLY - upper link, category II, with telescopic lower links, Includes: Ref. 14
1шт.
14
738-3640
PIN,6mm OD x 40mm L, Coiled
- coiled spring, 6 x 40 mm, with telescopic lower links
1шт.
15
1328196C1
TRUNNION,M27 x 3
TURNBUCKLE - upper link, with telescopic lower links
1шт.
16
905709R1
THIN NUT,Thin, M27 x 3
- hex, 27 mm - 3.00, with telescopic lower links
1шт.
17
1328190C1
SCREW,M27 x 3
SCREW ASSEMBLY - upper link, with telescopic lower links
1шт.
18
1328192C3
PIN,25.4mm OD x 134mm L
- upper link, category II, with telescopic lower links
1шт.
19
1328218C1
LINCH PIN,11mm OD
Assy - quick attachable, with telescopic lower links
1шт.
Выбрано товаров: 40
