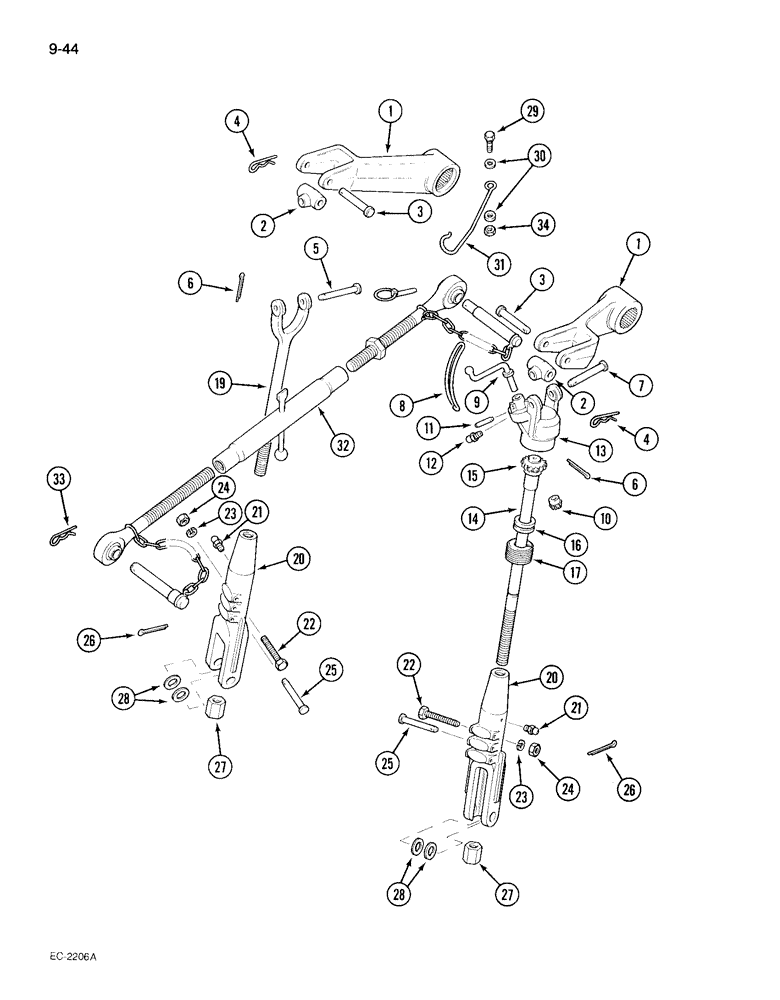

Запчасти Case IH 495 (9-044) - THREE POINT HITCH, WITH FIXED LOWER LINKS (09) - CHASSIS/ATTACHMENTS

1

402634R2

ROCKER ARM

ARM - rockshaft

2шт.

2

704207R3

PIVOT

SWIVEL - levelling screw

2шт.

3

3044309R2

HEADED PIN

PIN - headed, rockshaft arm

2шт.

4

720631R1

LINCH PIN

PIN - cotter, quick attachable type

2шт.

5

3044309R2

HEADED PIN

PIN - rockshaft arm

1шт.

6

1970959C1

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/16 x 1 inch

2шт.

7

3069069R2

HEADED PIN

PIN - headed, 5/8 x 3-3/4 inch

1шт.

8

3072424R1

SPRING

- levelling screw handle

1шт.

9

527943R1

CRANK

HANDLE - levelling screw

1шт.

10

3069063R1

GEAR

- pinion

1шт.

11

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

Grease fitting 109461 was replaced by 219-1 which is now replaced by self-tapping fitting W45836.

1шт.

13

3072422R2

HOUSING

- levelling screw

1шт.

3072422R2 will no longer be tapped for 1/8 NPT threads.

1шт.

14

69991C91

SCREW

ASSEMBLY - levelling, Includes: Ref. 15

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

- bearing

1шт.

16

3068049R91

BALL BEARING

BEARING - levelling screw

1шт.

17

3069064R2

SUPPORT,25.43mm ID x 57.15mm OD x 33.27mm L

BEARING - levelling screw

1шт.

19

527967R1

CLEVIS,7/8" - 9

YOKE ASSEMBLY - lift link, left

1шт.

20

3121964R2

HOUSING

- lift link yoke

2шт.

21

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

22

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN - float stop

2шт.

26

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

27

527937R1

NUT

- lift link

2шт.

28

495-81046

WASHER,25/32" x 2" x .120"

- flat, 25/32 x 2 x 1/8 inch

4шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 x 1-1/4 inch

1шт.

30

495-21044

WASHER,3/8"

(flat, 25/32 x 1-1/4 x 19/64 inch) 3/8"

2шт.

31

530050R3

CLIP,ELECTRICAL

CLIP - upper link storage

1шт.

32

REF

INSTRUCTION

LINK ASSEMBLY - upper (See Figure 9-048)

1шт.

33

530049R2

CLIP, SPRING

PIN - cotter, quick attachable type

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.
