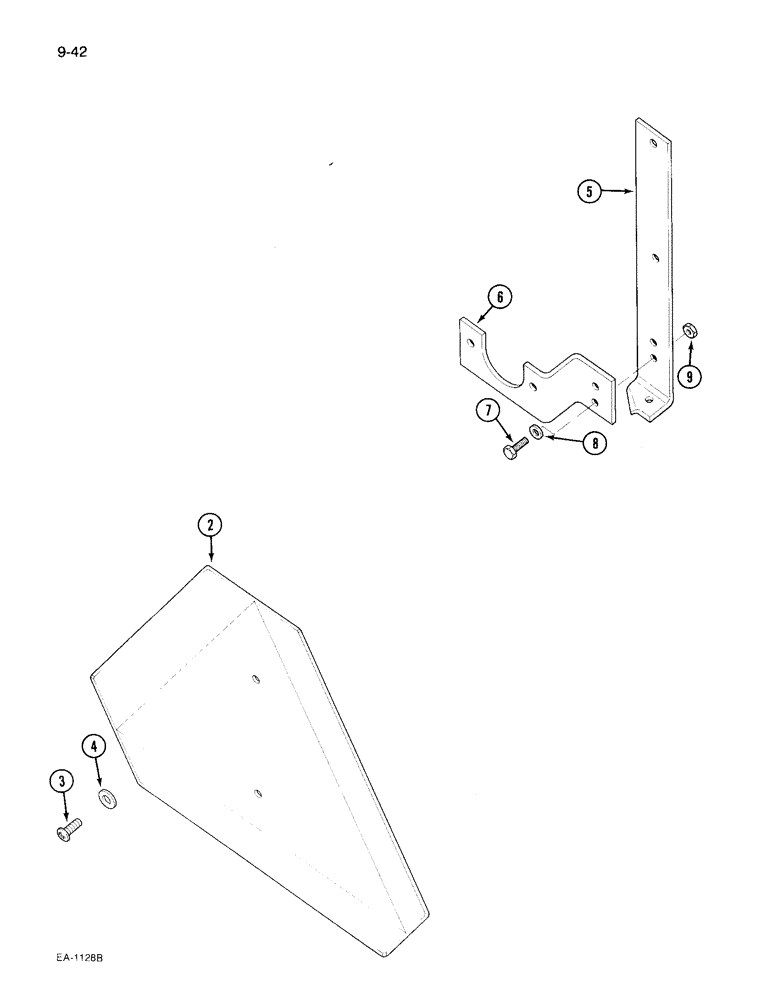

Запчасти Case IH 495 (9-042) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

2

1265035C1

EMBLEM

DECAL - SMV emblem

1шт.

3

261-24510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 5/8 inch

2шт.

4

495-31022

WASHER,#10

2шт.

5

1537741C1

SUPPORT

BRACKET - emblem, mounting

1шт.

6

1537742C1

SUPPORT

BRACKET - 7 pin socket mounting

1шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

Bracket, mounting Hex, M6 x 20, 10.9, Full Thd

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

825-1406

NUT,M6, Cl 8

2шт.
