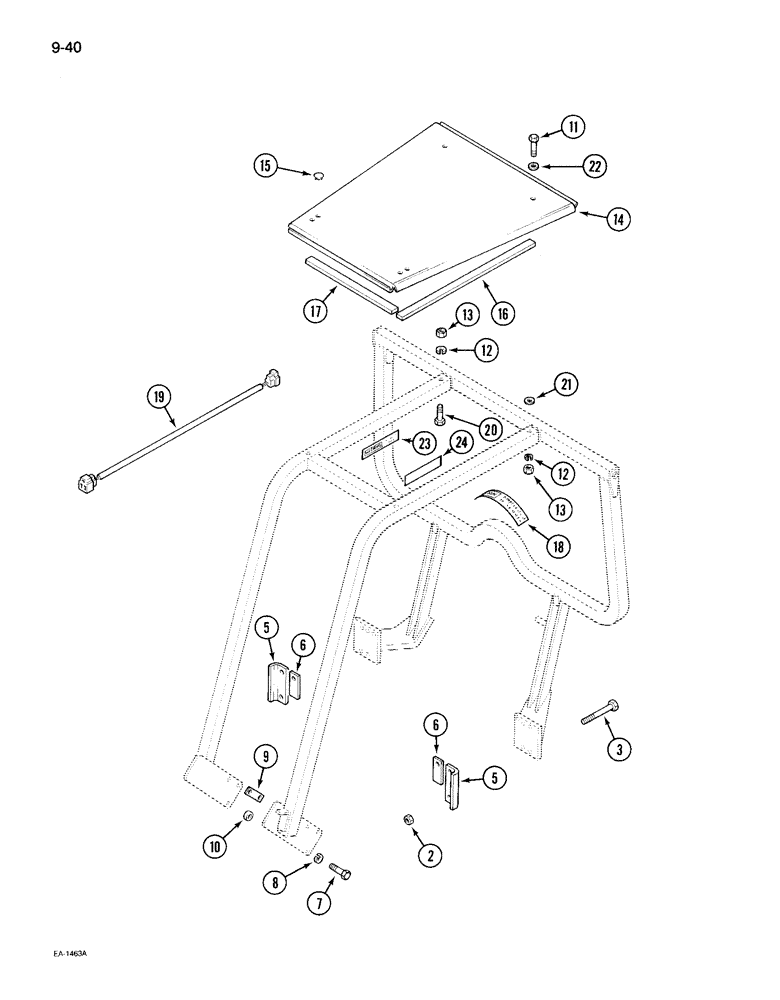

Запчасти Case IH 495 (9-040) - ROLL OVER PROTECTION FRAME, 4 POST ROPS (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

FRAME - roll over protection

1шт.

2

429-1010

NUT,5/8"-11, G8

8шт.

3

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

BOLT - hex, 5/8 NC x 8.8 inch, grade 8

8шт.

5

66062C1

PLATE

- mounting

2шт.

6

66063C1

DECAL

SHIM - mounting plate

4шт.

7

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, grade 8

6шт.

8

492-11100

LOCK WASHER,1"

1"

6шт.

9

537308R1

PLATE

- spacer

2шт.

10

537309R1

SPACER

- mounting

2шт.

11

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8 (With canopy)

4шт.

11

426-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8 (Without canopy)

4шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

429-1010

NUT,5/8"-11, G8

4шт.

14

66797C1

TOP

CANOPY - ROPS frame

1шт.

15

432487

HOLE PLUG BUTTON,11/16"

PLUG - button, 11/16 inch diameter hole

2шт.

16

118225C1

STRIP

- canopy

1шт.

17

118226C1

STRIP

- canopy

1шт.

18

65982C1

DECAL

- caution instructions

1шт.

19

66064C1

HARNESS

- combination light extension

1шт.

20

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8 (Without canopy)

4шт.

21

495-81179

WASHER,21/32" x 1 1/4" x .179"

- flat, 21/32 x 1-1/4 x 5/32 inch (With canopy)

4шт.

22

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch (With canopy)

4шт.

23

70571C1

DECAL

- ROPS caution instructions (English)

1шт.

23

70572C1

DECAL

- ROPS caution instructions (French)

1шт.

24

70773C1

DECAL

- seat belt caution instructions (English)

1шт.

24

70774C1

DECAL

- seat belt caution instructions (French)

1шт.
