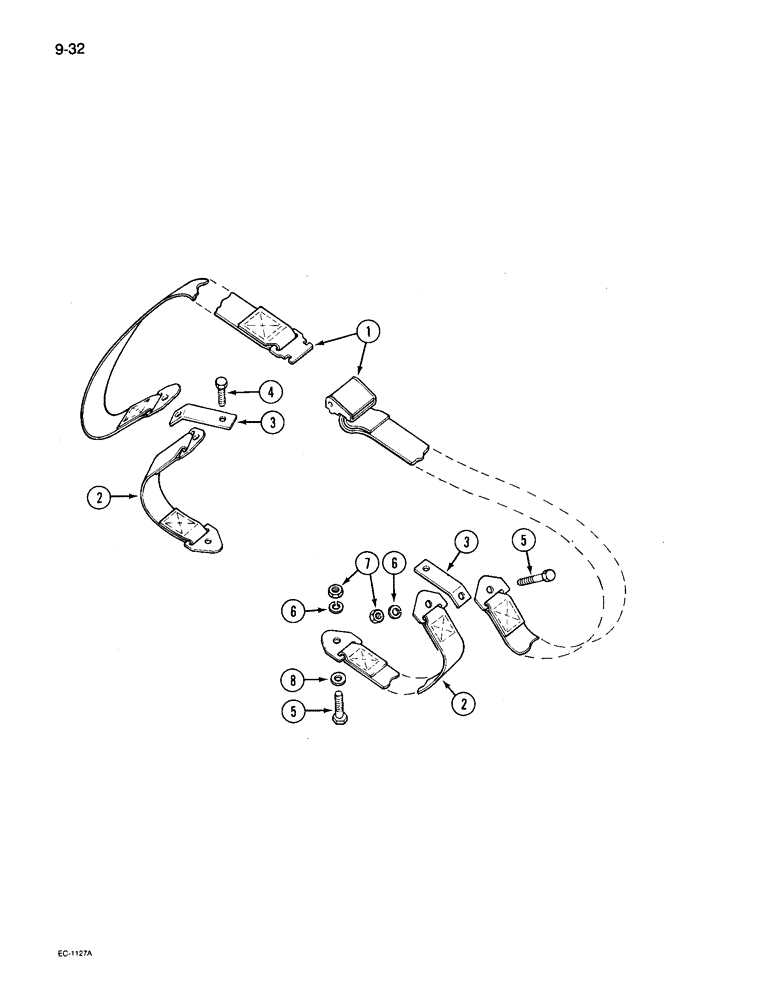

Запчасти Case IH 495 (9-032) - SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

537339R1

SAFETY BELT

SAFETY BELT, 2", Static seat

1шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retainer, Static seat

2шт.

3

539259R1

CLIP

- seat belt retainer, static seat

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm, Static seat

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor, static seat

4шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Static seat 7/16"

4шт.

7

429-117

NUT,7/16"-20, G8

- hex, 7/16 inch, grade 8, static seat

4шт.

8

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), Static seat 7/16", SAE

4шт.

1536395C1

SEAT

ASSEMBLY - PVC covered (See Figure 9-026), Bostrom suspension, Includes: Ref. 1 - 8

1шт.

1

537339R1

SAFETY BELT

SAFETY BELT, 2", Bostrom suspension seat

1шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retainer, Bostrom suspension seat

2шт.

3

539259R1

CLIP

- seat belt retainer, Bostrom suspension seat

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm, Bostrom suspension seat

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor, Bostrom suspension seat

4шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Bostrom suspension seat 7/16"

4шт.

7

429-117

NUT,7/16"-20, G8

- hex, 7/16 inch, grade 8, Bostrom suspension seat

2шт.

8

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), Bostrom suspension seat 7/16", SAE

2шт.
