Запчасти Case IH 495 (9-030) - STATIC SEATS (09) - CHASSIS/ATTACHMENTS

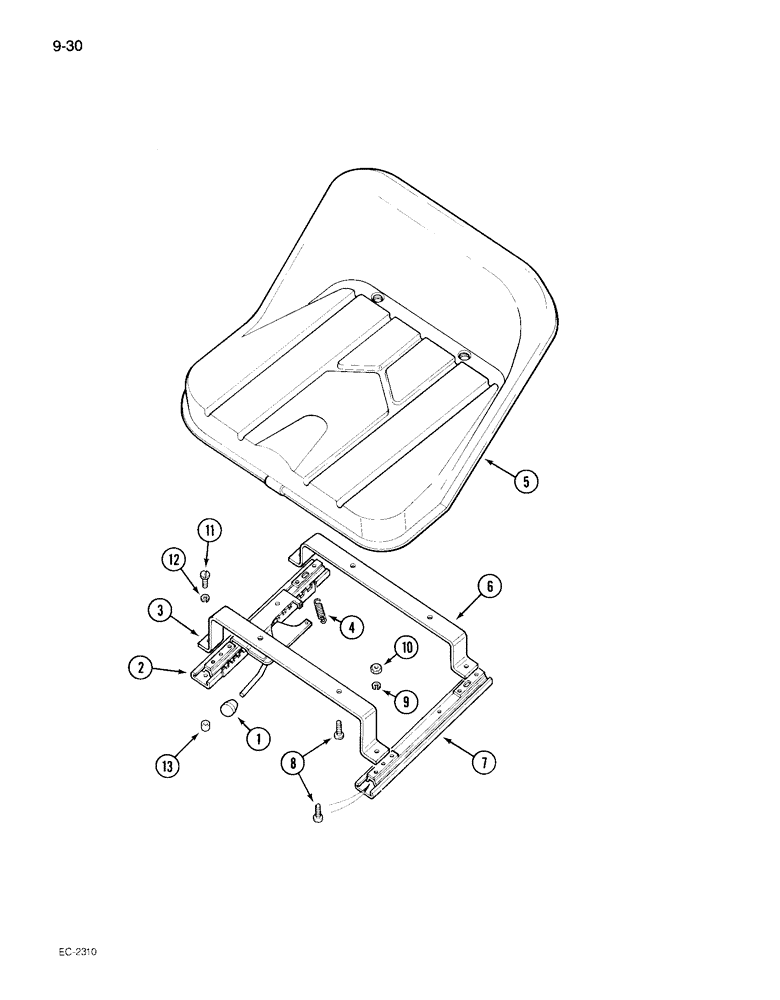

Схема запчастей Case IH 495 - (9-030) - STATIC SEATS (09) - CHASSIS/ATTACHMENTS
7
4
6
10
2
9
1
3
11
13
12
5
8

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - static, low profile tractor, Includes: Ref. 1 - 10

1шт.

1

538693R1

BUTTON

KNOB - seat adjustment handle, 8 x 1.5 mm threaded, (Order 3168593R1), low profile tractor

1шт.

If looking for a 6 x 1.0 mm knob, part number is 3168593R1.

1шт.

2

825199C91

SLIDE

RAIL - slide, right (With adjuster), low profile tractor

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting, low profile tractor

1шт.

4

538694R1

SPRING

- return, low profile tractor

1шт.

5

538026R1

SEAT ASSY.

SEAT ASSEMBLY - pan, low profile tractor

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting, low profile tractor

1шт.

7

825198C1

RAIL

- slide, left, low profile tractor

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head Phillps, 5/16 NC x 3/4 inch, low profile tractor

12шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Low profile tractor 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Low profile tractor

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

- pan head Phillips, 5/16 NC x 1-1/4 inch, low profile tractor

4шт.

12

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch, low profile tractor

4шт.

13

3123562R1

SPACER

- seat, low profile tractor

4шт.

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - static, orchard tractor, Includes: Ref. 1 - 10

1шт.

1

538693R1

BUTTON

KNOB - seat adjustment handle (Order 3168593R1), orchard tractor

1шт.

2

825199C91

SLIDE

RAIL - slide, right (With adjuster), orchard tractor

1шт.

3

1333093C1

BRACKET

- front mounting, orchard tractor

1шт.

4

538694R1

SPRING

- return, orchard tractor

1шт.

5

538026R1

SEAT ASSY.

SEAT ASSEMBLY - pan, orchard tractor

1шт.

6

1333092C1

BRACKET

- rear mounting, orchard tractor

1шт.

7

825198C1

RAIL

- slide, left, orchard tractor

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head Phillps, 5/16 NC x 3/4 inch, orchard tractor

12шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Orchard tractor 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Orchard tractor

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

- pan head Phillips, 5/16 NC x 1-1/4 inch, orchard tractor

4шт.

12

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch, orchard tractor

4шт.

13

3123562R1

SPACER

- seat, orchard tractor

4шт.

Выбрано товаров: 29
