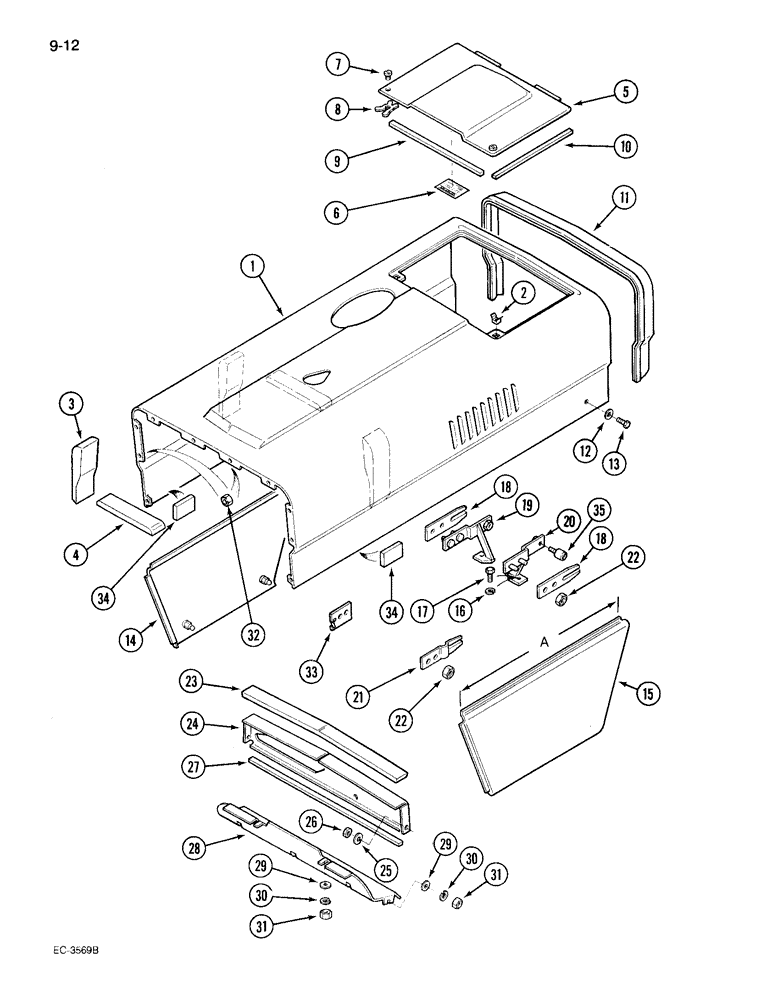

Запчасти Case IH 495 (9-012) - HOOD AND SIDE PANELS, TWO WHEEL DRIVE TRACTOR (09) - CHASSIS/ATTACHMENTS

1

1536805C2

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust, Includes: Ref. 2 - 4

1шт.

1

1536819C1

HOOD ASSY.

HOOD ASSEMBLY - downswept exhaust, Includes: Ref. 2 - 4

1шт.

1

1985083C1

HOOD ASSY.

HOOD ASSEMBLY - downswept exhaust (Orchard tractor), Includes: Ref. 2 - 4

1шт.

2

1502286C2

NUT,Floating Cage, 5/16"-18

- caged floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

98936C1

ADHESIVE STRIP

SEAL - foam, hood center, 200 mm

1шт.

5

1330795C1

COVER

ASSEMBLY - rear hood (Order 3121393R91), Includes: Ref. 6 - 10

1шт.

6

321-6714

DECAL

- battery jump start warning (English)

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

2шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872R1)

2шт.

8

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10.9 inch (Cut from 73211C1)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 17 inch (Cut from 73211C1)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 3121645R1)

1шт.

12

98775C1

WASHER

- flat, 5/16 inch (Painted black)

2шт.

13

98778C1

BOLT

- hex, 5/16 inch NC (Painted black)

2шт.

14

1970615C1

PANEL

ASSEMBLY - side, right (Dimension A: 19-1/2 inch) (Order 1539012C1)

1шт.

14

1333133C1

PANEL

ASSEMBLY - side, right (Orchard tractor)

1шт.

15

1970616C1

PANEL

ASSEMBLY - side, left (Dimension A: 19-1/2 inch) (Order 1539012C1)

1шт.

15

1333132C1

PANEL

ASSEMBLY - side, left (Orchard tractor)

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

18

1333181C1

CLIP

- side panel, front

2шт.

19

1333183C2

SUPPORT

- side panel, right

1шт.

19

99627C1

SUPPORT

- side panel, right (Orchard tractor)

1шт.

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

BOLT - hex, 1/4 x 1/2 inch (Not shown) (Orchard tractor)

2шт.

20

1333184C2

SUPPORT

- side panel, left

1шт.

20

99628C1

SUPPORT

- side panel, left (Orchard tractor)

1шт.

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

BOLT - hex, 1/4 x 1/2 inch (Not shown) (Orchard tractor)

2шт.

21

1333180C1

CLIP

- side panel, front (See Figure 9-010)

2шт.

22

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

23

98932C1

ADHESIVE STRIP

SEAL - upper, 465 mm

1шт.

24

98906C1

DEFLECTOR

BAFFLE ASSEMBLY - upper air

1шт.

25

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

26

825-1406

NUT,M6, Cl 8

3шт.

27

98944C1

ADHESIVE STRIP

SEAL - upper air baffle, 480 mm

1шт.

28

3121397R2

BAFFLE

- upper

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

30

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

31

825-1406

NUT,M6, Cl 8

4шт.

32

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

10шт.

32

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

10шт.

33

1333135C1

PLATE

ASSEMBLY - adjustable, right (Orchard tractor)

1шт.

33

1333134C1

PLATE

ASSEMBLY - adjustable, left (Orchard tractor)

1шт.

34

1333189C2

RUBBER BLOCK

BLOCK - rubber

4шт.

35

104074A1

STOP

- side panels

2шт.

73211C1

GASKET

SEAL - bulk length, see Ref. 9 and 10

1шт.

3121645R1

SEALING STRIP

- rubber, bulk length (4 foot roll), see Ref. 11

1шт.
