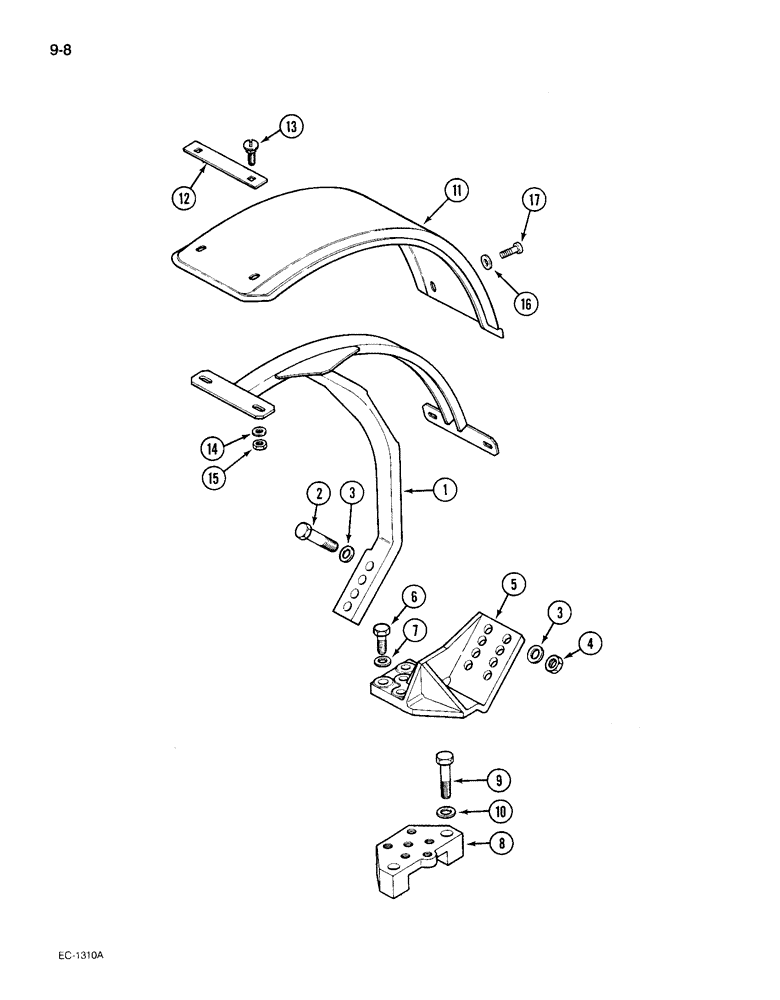

Запчасти Case IH 495 (9-008) - FRONT SPLASH SHIELDS, MFD TRACTORS, WITH 12.4 X 12 OR SMALLER TIRES (09) - CHASSIS/ATTACHMENTS

1

90007C1

HOLDER

SUPPORT ASSEMBLY - right

1шт.

1

90008C1

HOLDER

SUPPORT ASSEMBLY - left

1шт.

2

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

3

1538003C1

WASHER

- hardened, 17.5 x 32 x 6 mm

8шт.

4

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.00, class 10

4шт.

5

89984C1

SUPPORT

BRACKET - right

1шт.

5

89987C1

SUPPORT

BRACKET - left

1шт.

6

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, 14 mm - 2.00 x 40 mm, class 10.9

6шт.

7

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- flat, 15.5 x 28 x 3 mm, hardened

6шт.

8

1537533C1

SUPPORT

- splash shield "Carraro"

2шт.

8

1328740C1

SUPPORT

- splash shield "ZF"

2шт.

9

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

10

1538003C1

WASHER

- flat, 17.5 x 32 x 6 mm, hardened

4шт.

11

90002C1

FENDER

- rubber

2шт.

12

90001C1

BAR

- retaining

4шт.

13

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT - carriage, 8 mm - 1.25 x 25 mm, class 4.6

8шт.

14

3058250R1

WASHER

- flat, 8.5 x 20 x 1.5 mm

8шт.

15

717457R1

NUT,M8 x 1.25, Thin

NUT - hex, 8 mm - 1.25

8шт.

16

495-8117

WASHER

- flat

8шт.

17

840-1835

SCREW,Pan, M8 x 35mm, Cl 4.8

BOLT - panhead 8 mm x 35 mm

8шт.

1328699C3

PLUG

- plastic, 9/16 inch (Not shown)

1шт.

1284880C2

PLUG

- plastic, 5/8 inch (Not shown)

1шт.
