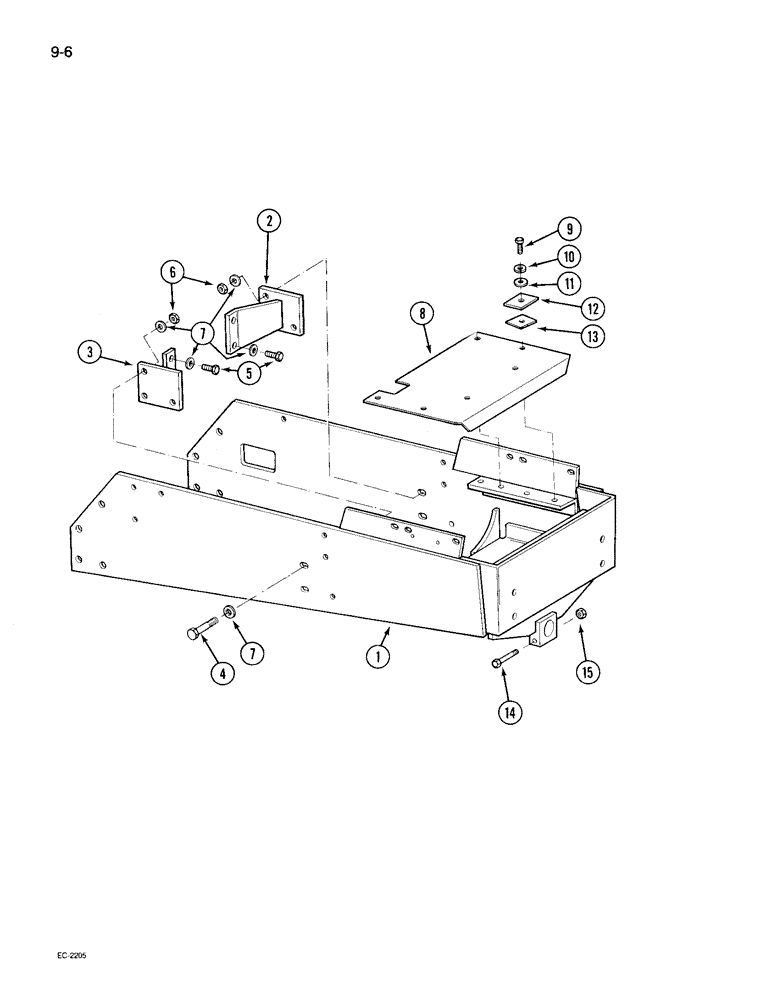

Запчасти Case IH 495 (9-006) - FRONT BOLSTER, FABRICATED (09) - CHASSIS/ATTACHMENTS

1

99707C2

FRAME

ASSEMBLY - fabricated

1шт.

2

70131C1

SUPPORT

ASSEMBLY - engine front, left

1шт.

3

70132C1

SUPPORT

ASSEMBLY - engine front, right

1шт.

4

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

6шт.

5

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

6

329-1010

NUT,5/8"-11, G8

6шт.

7

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat, 21/32 x 1-5/16 x 3/32 inch, hardened

16шт.

8

99708C1

SHEET

- air seal

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

4шт.

12

47240D

PAD

- radiator mounting

4шт.

13

84525C1

SPACER

- radiator mounting

4шт.

14

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
