Запчасти Case IH 495 (8-034) - DRAFT CONTROL (08) - HYDRAULICS

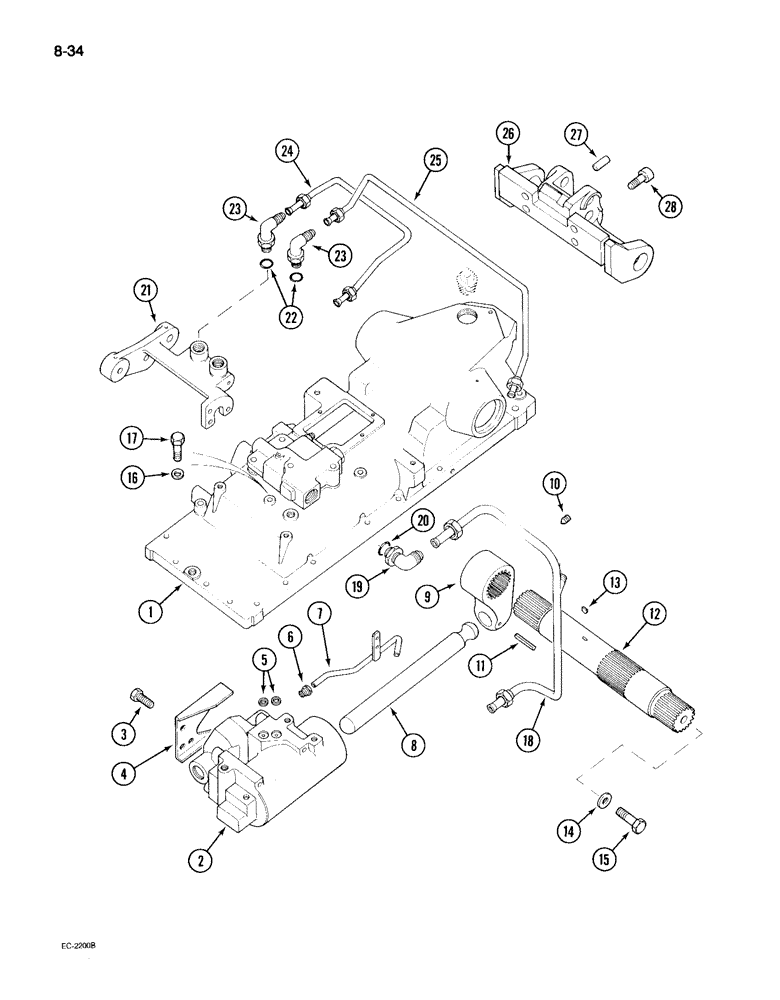

Схема запчастей Case IH 495 - (8-034) - DRAFT CONTROL (08) - HYDRAULICS
13
23
6
21
15
18
8
2
23
11
17
10
1
7
14
27
12
9
28
3
20
5
16
26
19
22
25
24
4

Артикул

Название

Примечание

Количество

1

406003R32

HOUSING ASSY.

HOUSING ASSEMBLY - hydraulic unit (See Figure 8-036)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - draft control (See Figure 8-038)

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

4

400026R2

SUPPORT

BRACKET - switch lever (See Figure 8-042)

1шт.

5

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

6

222-504

TUBE NUT,9/16"-20

NUT - hi-duty, 3/8 inch O.D. tube

1шт.

6

700153R11

NUT

- hi-duty, 3/8 inch O.D. tube, Serial Range: (Optional-37165D)

1шт.

7

60652C1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

8

400054R2

ROD

- hydraulic cylinder connecting

1шт.

9

400053R3

LEVER

- rockshaft bellcrank

1шт.

10

376069R1

SET SCREW

SCREW - set, rockshaft bellcrank

1шт.

11

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

12

400049R2

SHAFT

ROCKSHAFT - hydraulic draft control

1шт.

13

376057R1

BUCKET TOOTH KEY

KEY - rockshaft hub

1шт.

14

537126R2

PLATE

- retaining lift arm

2шт.

15

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

16

400000R1

SEALING WASHER

- cap screw sealing

3шт.

17

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

18

3129243R2

PIPE

TUBE - draft control pressure

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8 inch NF flare x adj. o-ring boss

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

529349R3

SUPPORT

ASSEMBLY - hitch control shaft (See Figure 8-044)

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4 inch NF flare x adj. O-ring boss

2шт.

24

3129774R2

PIPE

TUBE ASSEMBLY - variable flow

1шт.

25

1289959C3

HYD TUBE,0.5" OD, 500, 95 mm Length

TUBE ASSEMBLY - variable flow control supply

1шт.

26

527229R91

SUPPORT

SPRING - draft sensing, Includes: Ref. 27

1шт.

27

19842R1

DOWEL,5/16" x 1/2"

PIN - dowel, 5/16 x 1/2 inch

1шт.

28

61-36228

HEX SOC SCREW,5/8"-11 x 1 3/4"

SCREW - cap, hex socket, 5/8 NC x 1-3/4 inch

4шт.

28

109041C1

SCREW

- cap, hex socket, 5/8 NC x 1-3/4 inch, Serial Range: (Optional-61-36228)

4шт.
