Запчасти Case IH 495 (8-028) - REMOTE AUXILIARY VALVE ASSEMBLY, WITHOUT CHECK VALVE (08) - HYDRAULICS

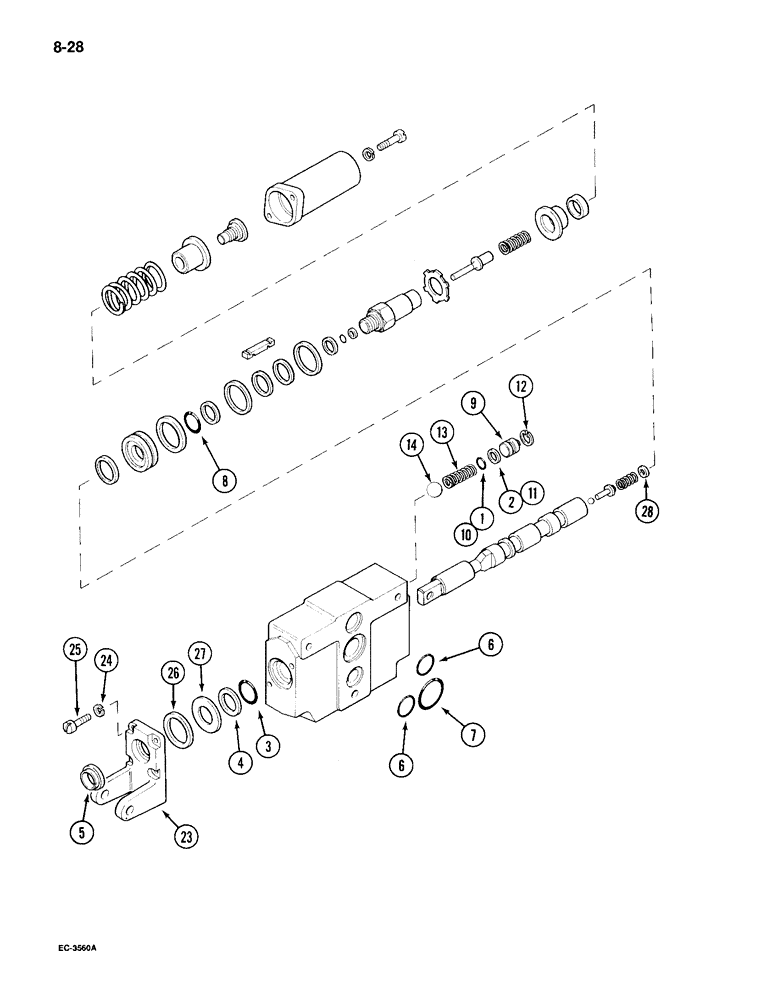

Схема запчастей Case IH 495 - (8-028) - REMOTE AUXILIARY VALVE ASSEMBLY, WITHOUT CHECK VALVE (08) - HYDRAULICS
2
5
6
14
1
12
27
8
26
10
9
23
25
6
4
13
7
3
11
24
28

Артикул

Название

Примечание

Количество

1287379C91

VALVE

ASSEMBLY - double acting, without check valve, Includes: seals service kit and Ref. 1 - 14

1шт.

1328394C1

SEAL KIT

KIT - service, seals, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 11 ID x 2 mm wide

2шт.

2

NSS

NOT SOLD SEPARAT

RING - back up

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 18 ID x 3 mm wide

1шт.

4

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 ID x 2.5 mm wide

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 ID x 2.5 mm wide

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - flat

1шт.

1958016C1

REPAIR KIT

KIT - service, check valve, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 11 ID x 2 mm wide

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

14

NSS

NOT SOLD SEPARAT

BALL - check valve

1шт.

23

1958026C2

SUPPORT

BRACKET - auxiliary valve

1шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

25

1958025C1

SCREW

- M6 x 12; 8,8, For Support Holes With Recess

1шт.

25

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8

1шт.

26

122964A1

WASHER

1шт.

27

122963A1

BACK-UP RING

DISC - support

1шт.

28

1328389C1

SHIM

- 0.3 mm thick

1шт.

28

1328390C1

SHIM

- 0.4 mm thick

1шт.

28

1328388C1

SHIM

- 0.5 mm thick

1шт.

28

1328391C1

SHIM KIT

SHIM - 0.8 mm thick

1шт.

Выбрано товаров: 27
