Запчасти Case IH 495 (8-026) - REMOTE AUXILIARY VALVES, THIRD BANK TUBES AND COUPLINGS (08) - HYDRAULICS

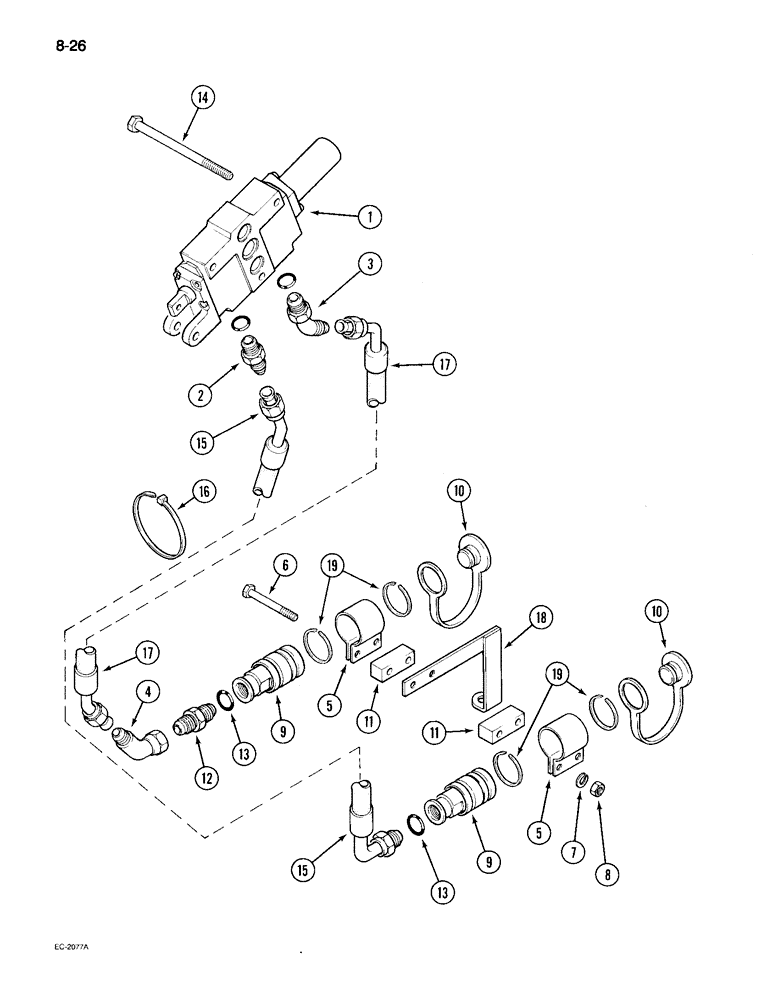

Схема запчастей Case IH 495 - (8-026) - REMOTE AUXILIARY VALVES, THIRD BANK TUBES AND COUPLINGS (08) - HYDRAULICS
9
9
13
10
4
17
2
5
14
8
11
18
3
10
16
19
19
11
6
13
1
17
5
15
7
15
12

Артикул

Название

Примечание

Количество

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (See Figure 8-028)

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with check valve (See Figure 8-030)

1шт.

2

86165C1

FITTING

UNION - straight, 7/8 inch NF flare x 22 mm - 1.5

1шт.

3

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5

1шт.

4

9410256

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 45 degree, swivel, 7/8 inch NF

1шт.

5

3114106R1

CLAMP

- coupling

2шт.

6

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

A177478

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female, breakaway

2шт.

10

373220R1

PLUG

- dust, breakaway coupling

2шт.

11

3129557R1

SPACER

- coupling

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

- hex, 8 mm - 1.25 x 160 mm

3шт.

15

1956701C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 3rd bank, front outlet

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

17

99908C1

HOSE

ASSEMBLY - 3rd bank, rear outlet

1шт.

18

1956705C1

PLATE

ASSEMBLY - coupling

1шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

2шт.

Выбрано товаров: 20
