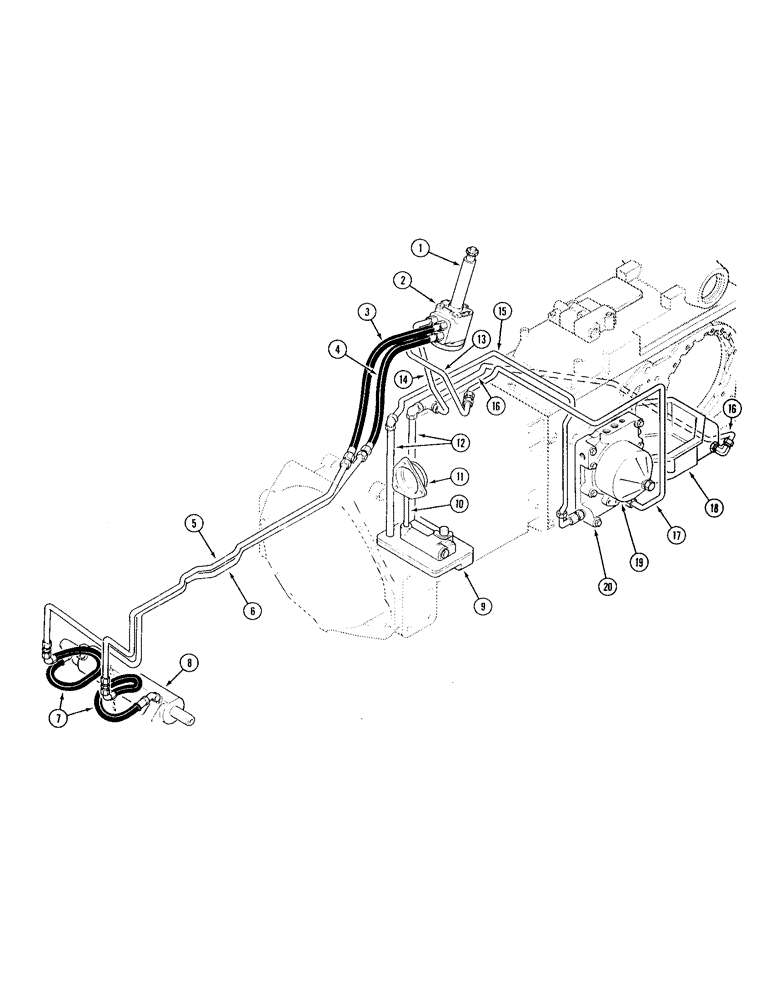

Запчасти Case IH 495 (1-016) - PICTORIAL INDEX, POWER STEERING SYSTEM, DISC CLUTCH MFD TRACTOR (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3

1шт.

2

Integral Power Steering valve, pages 5-3, 19

1шт.

3

Left Turn Steering Hose, Page 5-9

1шт.

4

Right Turn Steering Hose, Page 5-9

1шт.

5

Left Turn Steering Tube, Page 5-9

1шт.

6

Right Turn Steering Tube, Page 5-9

1шт.

7

Power Steering Cylinder Hoses, Page 5-9

1шт.

8

Power Steering Cylinder, Pages 5-53, 57

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-17, 21

1шт.

10

Oil Inlet Tube, Page 8-17

1шт.

11

IPTO and Clutch Retaining Cage (Without 2 Speed Power Shift), Page 6-11

1шт.

11

IPTO and Clutch Retaining Cage (With 2 Speed Power Shift), Page 6-19

1шт.

12

Oil Return Tubes, Page 8-15

1шт.

13

Forward Power Steering Pressure Tube, Page 5-17

1шт.

14

Forward Power Steering Return Tube, Page 5-17

1шт.

15

Rear Power Steering Return Tube, Page 5-17

1шт.

16

Transfer Gear Drop Box Tube, Page 5-17

1шт.

17

Rear Power Steering Pressure Tube, Page 5-17

1шт.

18

Transfer Gear Drop Box, Pages 6-69, 77

1шт.

19

Hydraulic Oil Filter, Page 8-3

1шт.

20

Multiple Control Valve, Pages 8-7, 9

1шт.
